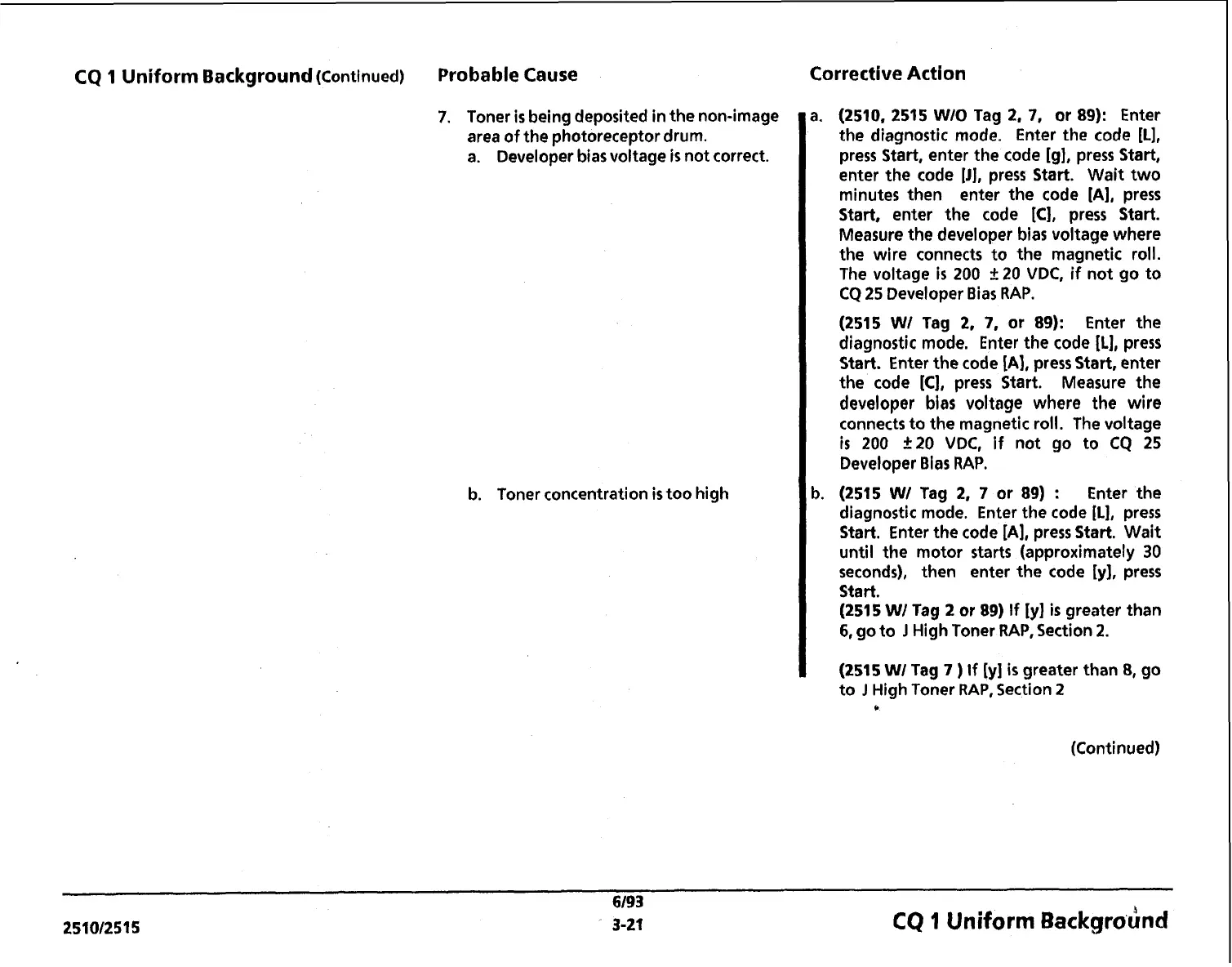

CQ 1 Uniform Background (continued) Probable Cause Corrective Action
7. Toner is being deposited in the non-image
area of the photoreceptor drum.
a. Developer bias voltage
is not correct.
b. Toner concentration
is too high
(2510, 2515 WIO Tag 2, 7, or 89): Enter
the diagnostic mode. Enter the code [L],
press Start, enter the code [g], press Start,
enter the code [J], press Start. Wait two
minutes then enter the code [A], press
Start, enter the code [C], press Start.
Measure the developer
bias voltage where
the wire connects to the magnetic roll.
The voltage
is 200 220 VDC, if not go to
CQ 25 Developer Bias RAP.
(2515 WI Tag 2, 7, or 89): Enter the
diagnostic mode. Enter the code
[L], press
Start. Enter the code
[A], press Start, enter
the code [C], press Start. Measure the
developer bias voltage where the wire
connects to the magnetic roll. The voltage
is 200 220 VDC, if not go to CQ 25
Developer Bias RAP.
(2515 Wl Tag 2, 7 or 89) :
Enter the
diagnostic mode. Enter the code [L], press
Start. Enter the code [A], press Start. Wait
until the motor starts (approximately
30
seconds), then enter the code [y], press
Start.
(2515 WI Tag 2 or 89) If [y] is greater than
6, go to J High Toner RAP, Section 2.
(2515 WI Tag 7 ) If [y] is greater than 8, go
to
J High Toner RAP, Section 2
*
(Continued)
CQ 1 Uniform ~ack~round
