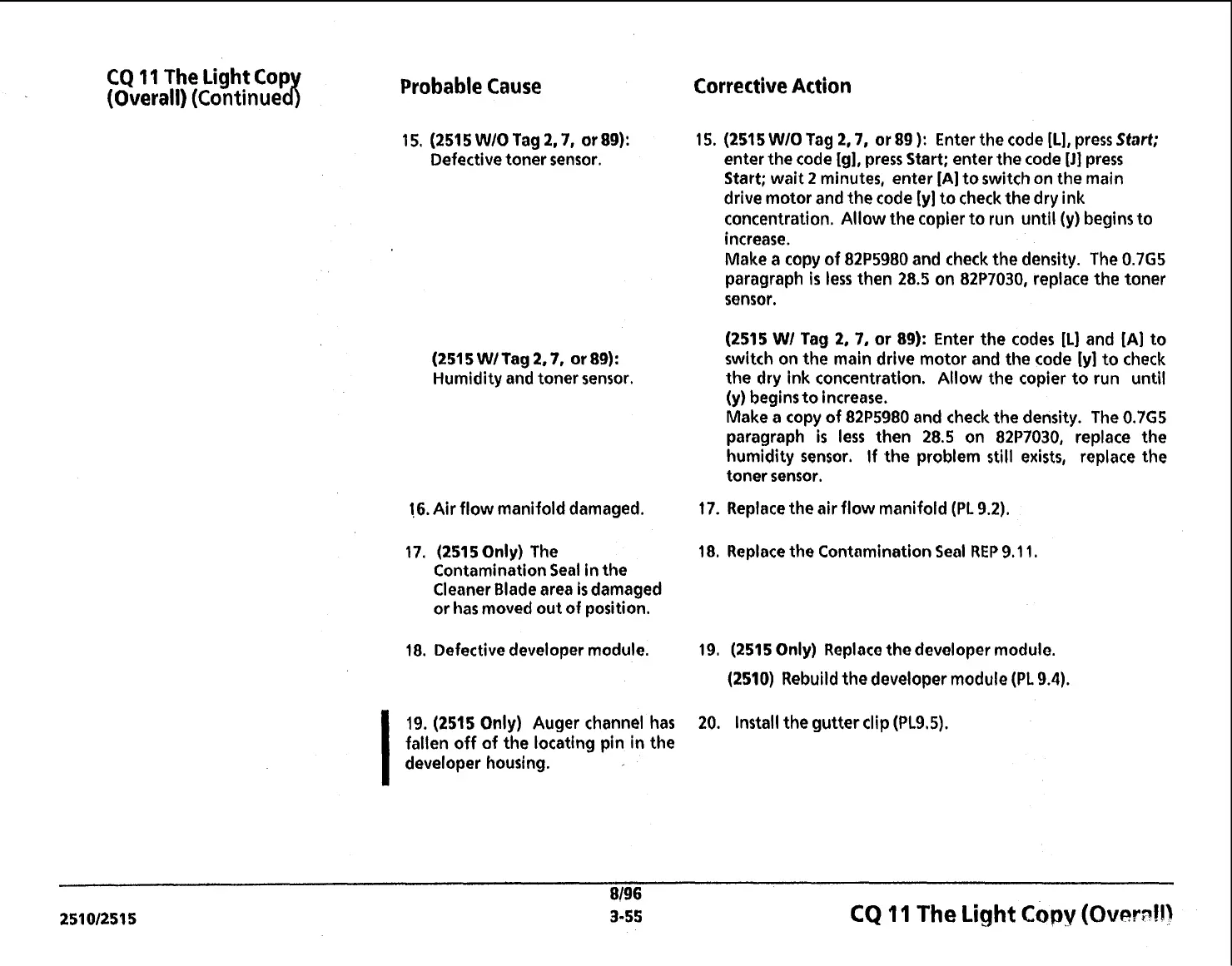

CQ 11 The Light Cop
(Overall) (Continue
d
Probable Cause Corrective Action
15. (251 5 WIO Tag 2,71 or 89):
15. (2515 WIO Tag 2,7, or 89 ): Enter the code [L], press Start;
Defective toner sensor.
enter the code [g], press Start; enter the code
[Jl press
Start; wait
2 minutes, enter [A] to switch on the main
drive motor and the code [y] to check the dry ink
concentration. Allow the copier to run until
(y) begins to
increase.
Make
a copy of 82P5980 and check the density. The 0.7G5
paragraph
is less then 28.5 on 82P7030, replace the toner
sensor.
(251 5
WI Tag 2,7, or
89):
Humidity and toner sensor
(2515 WI
Tag 2, 7, or 89): Enter the codes [L] and [A] to
switch on the main drive motor and the code [y] to check
the dry ink concentration. Allow the copier to run until
(y) begins to increase.
Make a copy of 82P5980 and check the density. The 0.7G5
paragraph
is less then 28.5 on 82P7030, replace the
humidity sensor. If the problem still exists, replace the
toner sensor.
16. Air flow manifold damaged.
17. Replace the air flow manifold
(PL 9.2).
17. (2515 Only) The
18. Replace the Contnmination Seal REP 9.1 1.
Contamination Seal in the
Cleaner Blade area
is damaged
or has moved out of position.
18. Defective developer module.
19. (2515 Only) Replace the developer module.
(2510) Rebuild the developer module (PL 9.4).
I
19. (2515 Only) Auger channel has
20. Install the gutter clip (PL9.5).
fallen off of the locating pin in the
developer housing.
CQ 11 The Light coo^ (Qver,?!l\
