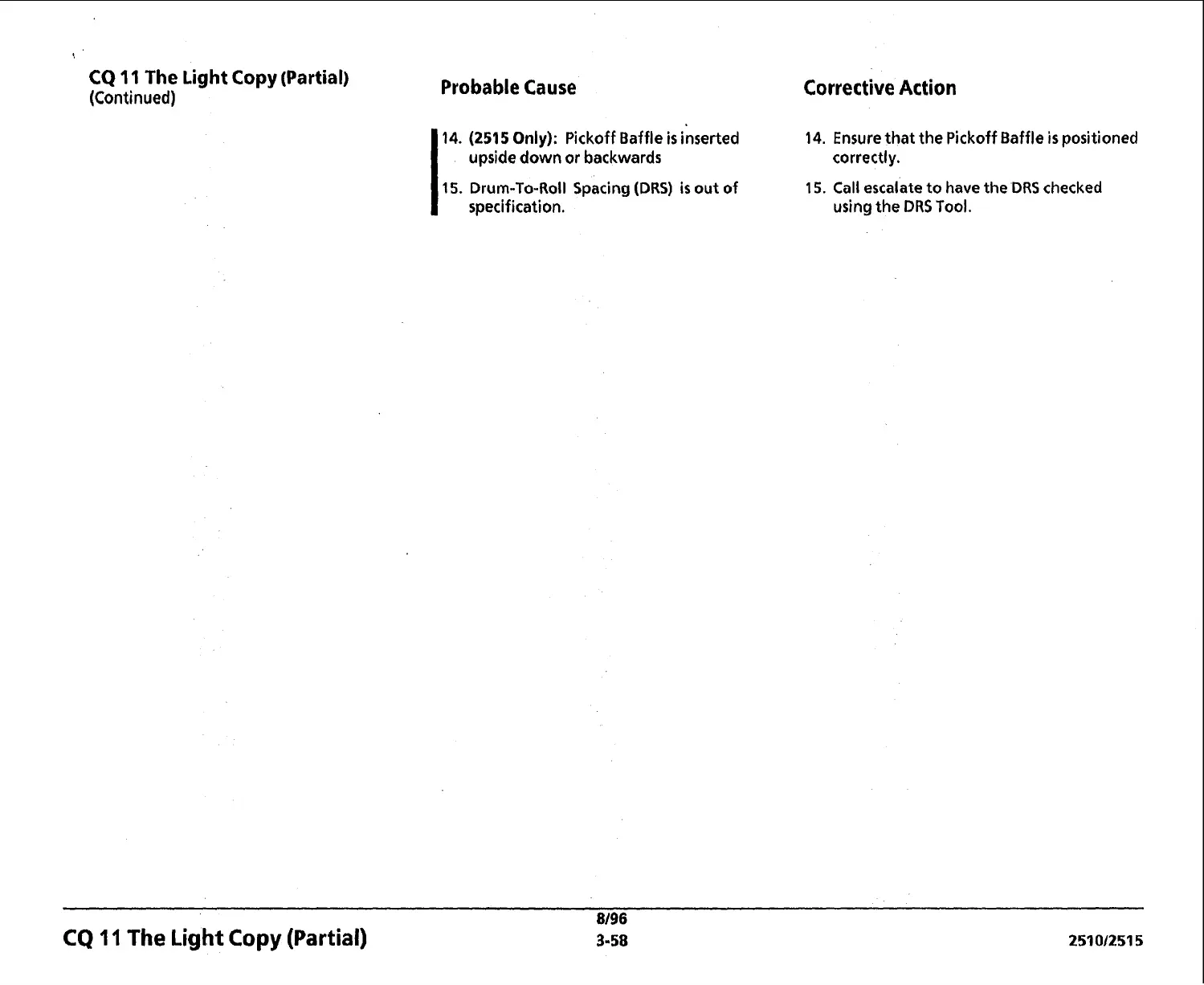

CQ
11
The
Light
Copy
(Partial)
(Continued)
Probable
Cause
I
14.
(2515
Only):
Pickoff Baffle is inserted
upside down or backwards
15.
Drum-To-Roll Spacing (DRS)
is
out
of
I
specification.
Corrective
Action
14.
Ensure that the Pickoff Baffle is positioned
correctly.
15.
Call
escalate to have the
DRS
checked
using
the
DRS
Tool.
CQ
11
The
Light
Copy
(Partial)
