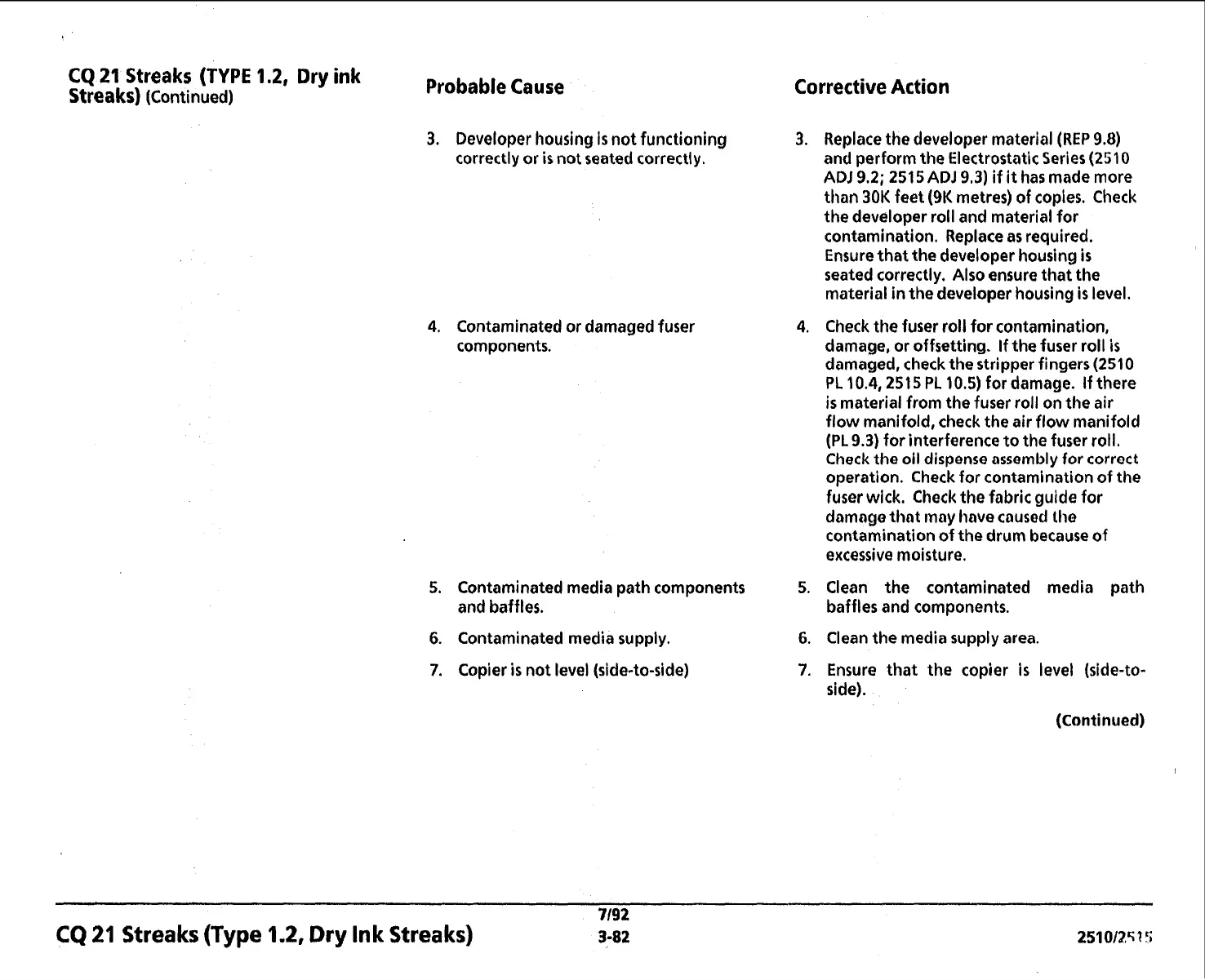

CQ 21 Streaks (TYPE 1.2, Dry ink
Streaks)
(Continued)
Probable Cause
3. Developer housing is not functioning 3.
correctly or is not seated correctly.
4. Contaminated or damaged fuser
components.
Corrective Action
5. Contaminated media path components 5.
and baffles.
6. Contaminated media supply. 6.
7. Copier is not level (side-to-side) 7.
Replace the developer material (REP 9.8)
and perform the Electrostatic Series (2510
ADJ 9.2; 2515 ADJ 9.3) if it has made more
than 30K feet (9K metres) of coples. Check
the developer roll and material for
contamination. Replace as required.
Ensure that the developer housing
is
seated correctly. Also ensure that the
material in the developer housing
is level.
Check the fuser roll for contamination,
damage, or offsetting.
If the fuser roll is
damaged, check the stripper fingers (2510
PL lO.4,2515 PL 10.5) for damage. If there
is material from the fuser roll on the air
flow manifold, check the air flow manifold
(PL 9.3) for interference to the fuser roll.
Check the
oil dispense ossombly for correct
operation. Check for contamination of the
fuser wick. Check the fabric guide for
damngo that may have caused the
contamination of the drum because of
excessive moisture.
Clean the contaminated media path
baffles and components.
Clean the media supply area.
Ensure that the copier
is level (side-to-
side).
(Continued)
7192
CQ 21 Streaks (Type 1.2, Dry Ink Streaks) 3-82
