Xerox 2510

Replacement

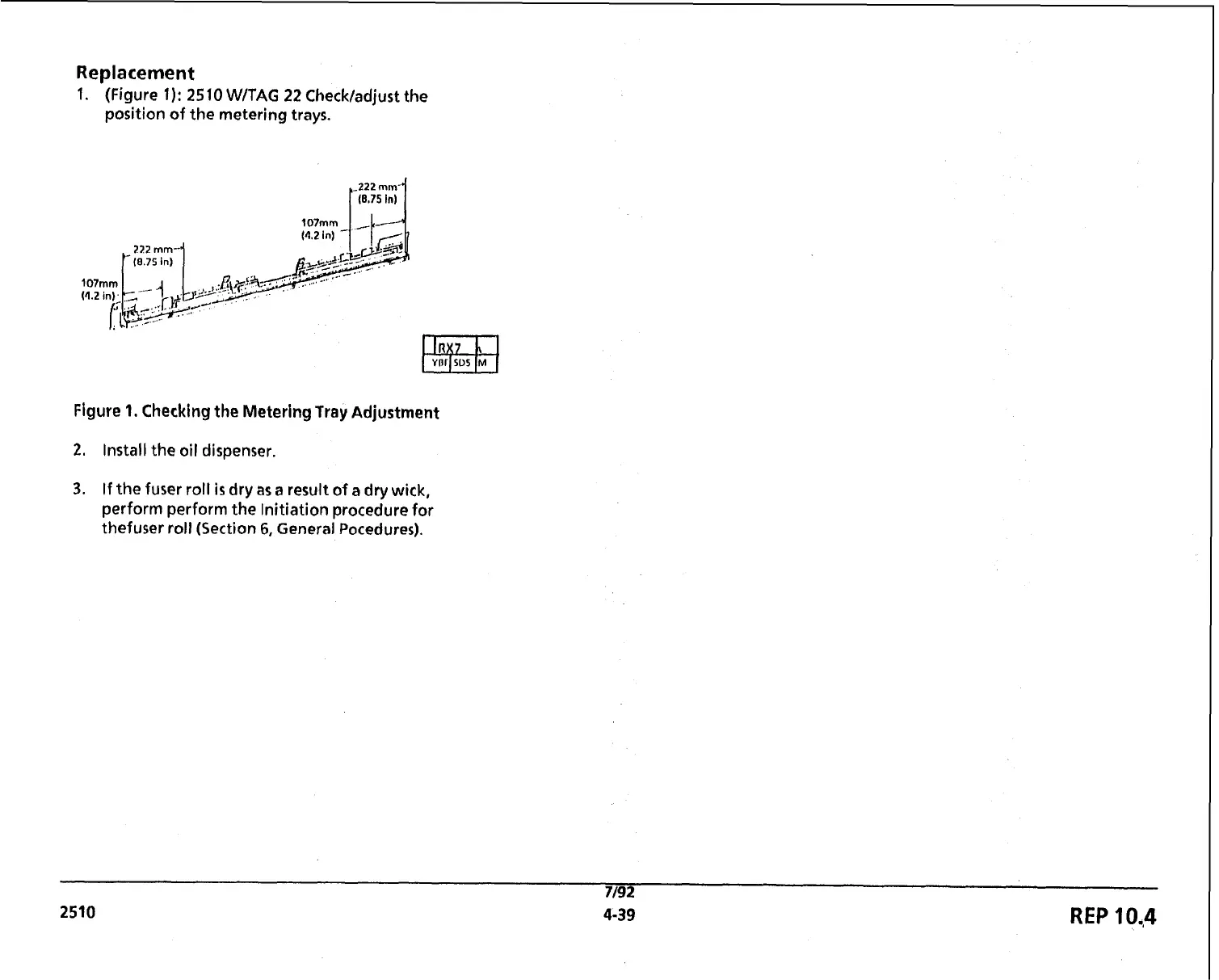

1. (Figure 1): 25 10 WITAG 22 Check/adjust the
position of the metering trays.
Figure
1. Checking the Metering Tray Adjustment
2, Install the oil dispenser.
3. If the fuser roll is dry as a result of a dry wick,
perform perform the Initiation procedure for
thefuser roll (Section
6, General Pocedures).
7/92
2510 4-39
REP 10,4
