Replacement
I. (Figure 2): Install the stripper fingers.
CAUTION
The stripper fingers are easily damaged
and must be installed carefully. Do not
bend or distort them. Slide the stripper
fingers straight down onto the dispense
assembly housing. Do not slide the
I
stripper fingers on from the side of the
housing. This will create aluminum
shavings that could clog the oiler.
INS
OBSERVE THE PROPER
n
ORIENTATION OF THE
STRIPPER FINGERS
Al-4
OIL DISPENSE ASSEMBLY HOUSING

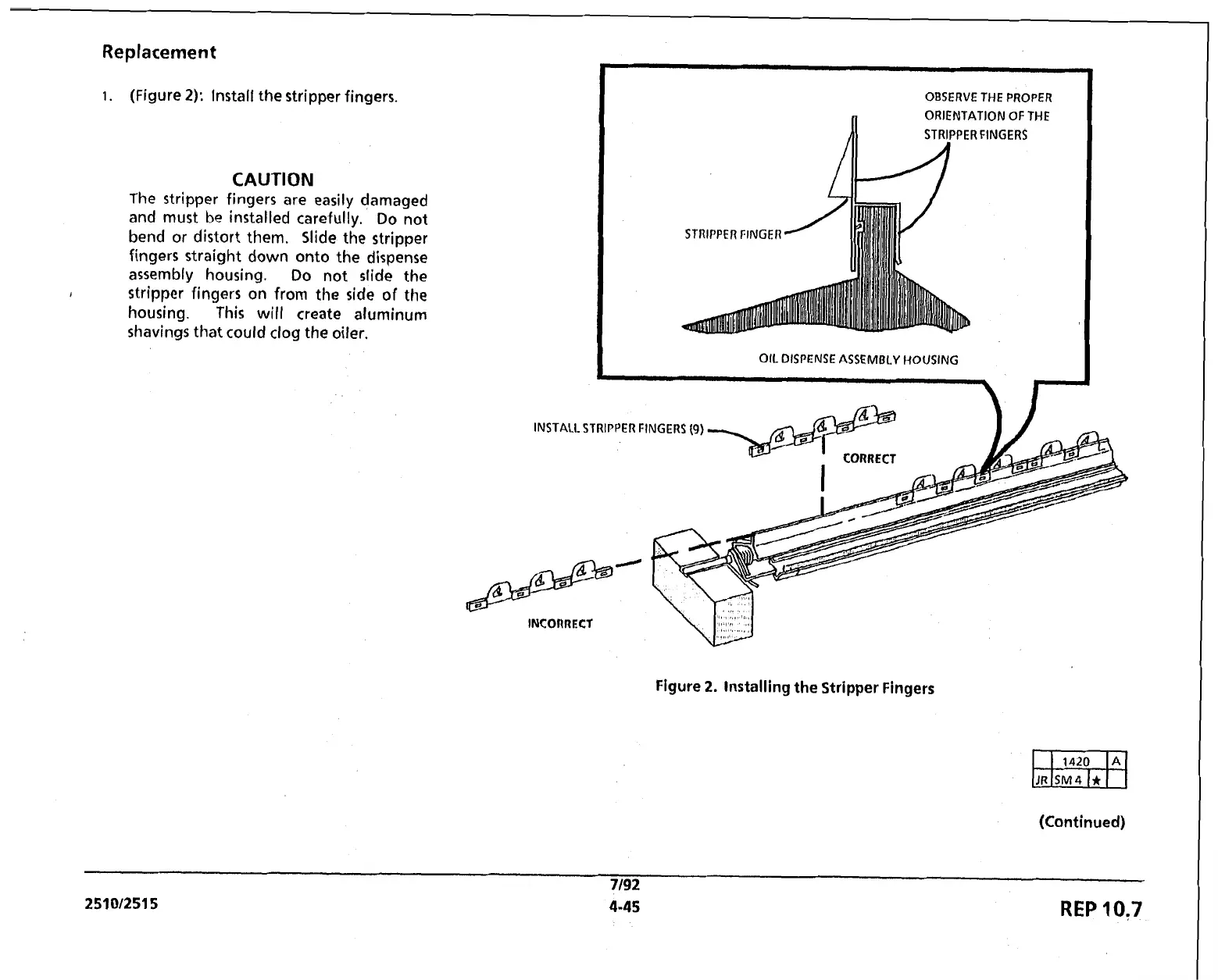

Figure 2. Installing the Stripper Fingers
(Continued)
