Xerox 2510 User Manual

NOTE: Inside the fuser roll, there is a packing
spring to support the fuser heat rod
during shipment.
12. (Figure 12): Prepare to remove the fuser
rod packing spring.
E
MANUALLY ROTATE THE FUSER
DRIVE GEAR UNTIL THE RETAINING
SCREWS ARE PARALLEL
WITH THE
MEDIA PATH
MEDIA PATH
REMOVE FUSER
ROLL BEARING
SCREWS
(2)
D
REMOVE THE
WIRE FROM CLIP
DISCONNECT
(2) 0
cu'r 'I I IE CAIILE I IE

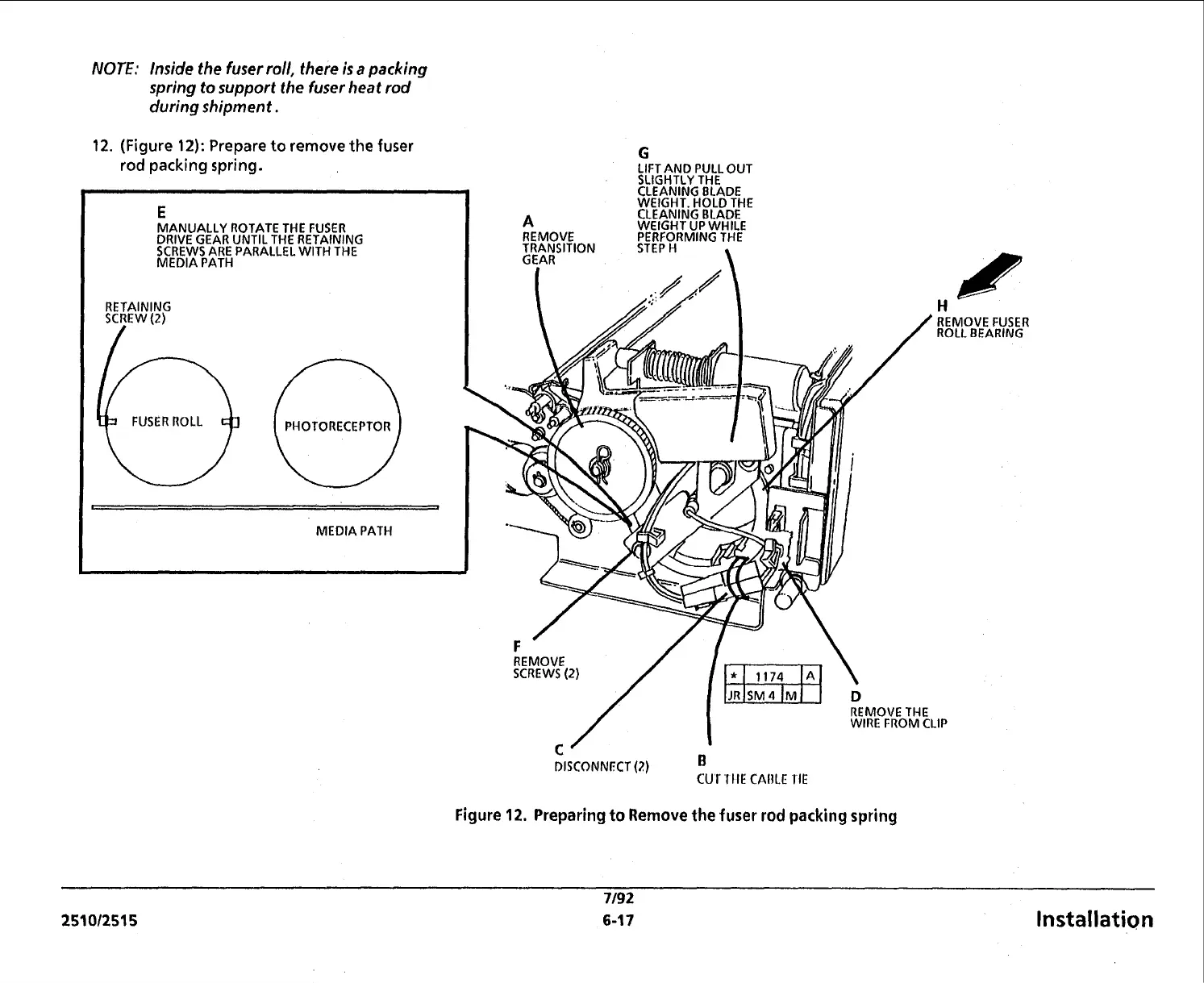

Figure 12. Preparing to Remove the fuser rod packing spring
7/92
25101251 5 6-1 7 Installation
