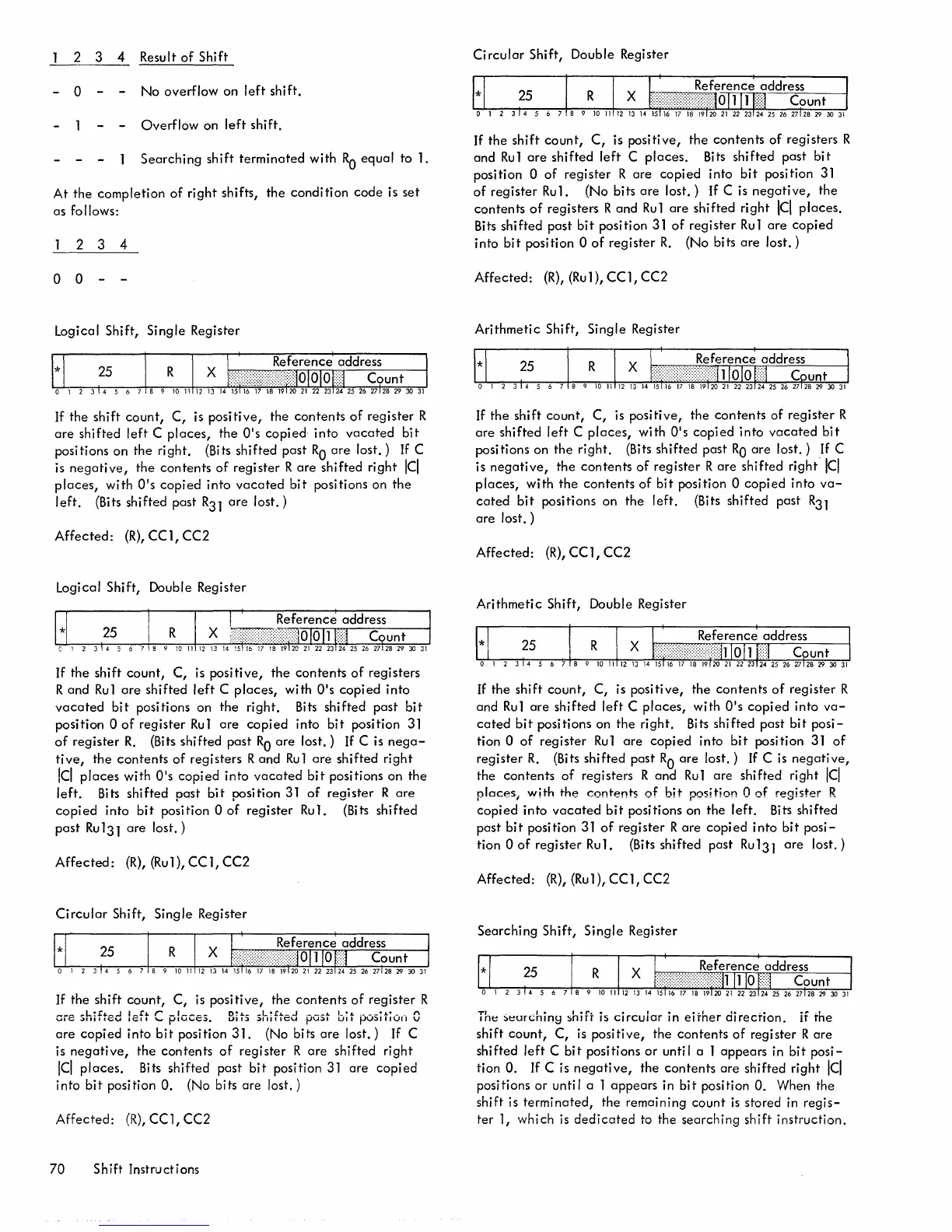

2 3 4 Result of Shift
- 0 No overflow on left shift.
Overflow on left shift.
Searching shift terminated with Ro equal to 1.
At the completion of right shifts, the condition code is set
as follows:
2 3 4
o 0
Logical Shift, Single Register
If the shift count, C, is positive, the contents of register R
are shifted left C places, the O's copied into vacated bit
positions on the right. (Bits shifted past RO are lost.) If C
is negative, the contents of register R are shifted right Ici
places, with O's copied into vacated bit positions on the
left. (Bits shifted past R31 are lost.)
Affected: (R), CCl, CC2
Logical Shift, Double Register
If the shift count, C, is positive, the contents of registers
Rand Rul are shifted left C places, with O's copied into
vacated bit positions on the right. Bits shifted past bit
position 0 of register Ru 1 are copied into bit position 31
of register R. (Bits shifted past RO are lost.) If C is nega-
tive, the contents of registers Rand Ru 1 are shifted right
Ici places with O's copied into vacated bit positions on the
left. Bits shifted past bit position 31 of register Rare
copied into bit position 0 of register Ru1. (Bits shifted
past Ru 131 are lost.)
Affected: (R), (Ru 1), CC 1, CC2
Circular Shift, Single Register
If the shift count, C, is positive, the contents of register R
aie shifted left C places. Bits shifted post bit positio(1 0
are copied into bit position 31. (No bits are lost.) If C
is negative, the contents of register R are shifted right
Ici places. Bits shifted past bit position 31 are copied
into bit position O. (No bits are lost.)
Affected: (R), CCl, CC2
70 Shift Instructions
Circular Shift, Double Register
If the shift count, C, is positive, the contents of registers R
and Ru 1 are shifted left C places. Bits shifted past bit
position 0 of register R are copied into bit position 31
of register Ru 1. (No bits are lost.) If C is negative, the
contents of registers Rand Ru 1 are shifted right Ici places.
Bits shifted past bit position 31 of register Ru 1 are copied
into bit position 0 of register R. (No bits are lost.)
Affected: (R), (Rul), CCl, CC2
Arithmetic Shift, Single Register
If the shift count, C, is positive, the contents of register R
are shifted left C places, with O's copied into vacated bit
positions on the right. (Bits shifted past RO are lost.) If C
is negative, the contents of register R are shifted right· lei
places, with the contents of bit position 0 copied into va-
cated bit positions on the left. (Bits shifted past R31
are lost.)
Affected: (R), cc 1 , CC2
Arithmetic Shift, Double Register
If the shift count, C, is positive, the contents of register R
and Rul are shifted left C places, with O's copied into va-
cated bit positions on the right. Bits shifted past bit posi-
tion 0 of register Rul are copied into bit position 31 of
register R. (Bits shifted past RO are lost.) If C is negative,
the contents of registers Rand Ru 1 are shifted right Ici
olacp.s_ with thp. contp.ntc; of hit noc;ition 0 of rpnidpr R
.' --~ ... _ ~- ... - .. -- -" -.- ,---.'._" - _ . . _.;;;J.-._' ...
copied into vacated bit positions on the left. Bits shifted
past bit position 31 of register R are copied into bit posi-
tion 0 of register Ru1. (Bits shifted past Ru131 are lost.)
Affected: (R), (Ru 1), CC 1, CC2
Searching Shift, Single Register
The :)eur(;hing ~hift is circuiar in either direction. if the
shift count, C, is positive, the contents of register Rare
shifted left C bit positions or until a 1 appears in bit posi-
tion O. If C is negative, the contents are shifted right Ici
positions or unti I a 1 appears in bit position O. When the
shift is terminated, the remaining count is stored in regis-
ter 1, which is dedicated to the searching shift instruction.
