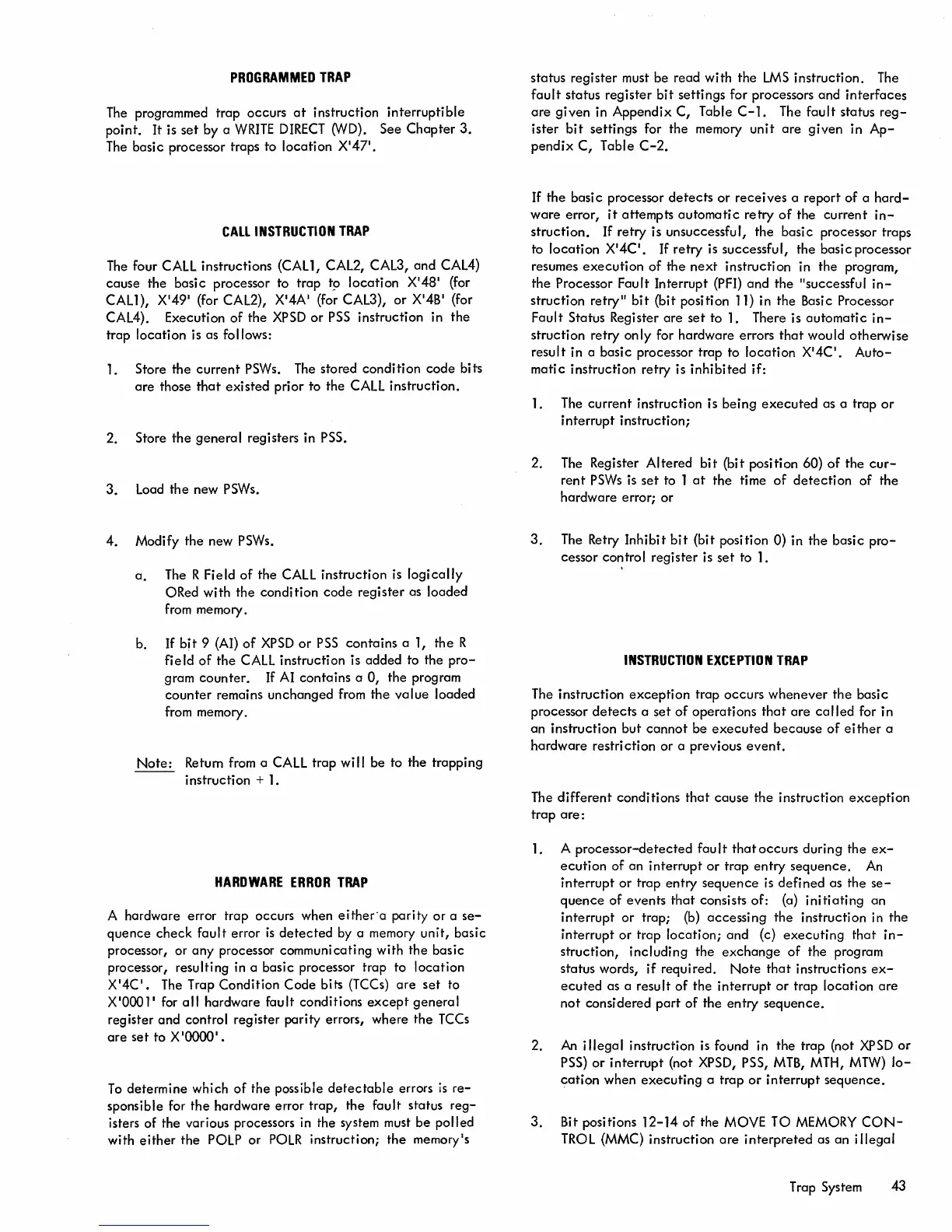

PROGRAMMED
TRAP
The programmed
trap
occurs
at
instruction
interruptible
point. It is
set
by a
WRITE
DIRECT
0ND).
See
Chapter
3.
The basic processor traps to
location
X'47'.
CALL
INSTRUCTION
TRAP
The four
CALL
instructions
(CAll,
CAL2, CAL3,
and
CAL4)
cause the basic processor to trap
tp
location
X'48'
(for
CAll),
X'49'
(for CAL2), X'4A' (for CAL3),
or
X'4B' (for
CAL4). Execution
of
the
XPSD
or
PSS
instruction in
the
trap
location
is as follows:
1.
Store
the
current
PSWs.
The stored
condition
code
bits
are
those
that
existed prior to the
CALL
instruction.
2. Store
the
general
registers in PSS.
3.
Load
the
new
PSWs.
4.
Modify
the
new
PSWs.
a.
The R Field
of
the
CALL
instruction
is
logically
ORed with
the
condition
code
register
as loaded
from memory.
b.
If
bit
9 (AI)
of
XPSD
or
PSS
contains
a 1,
the
R
field
of
the
CALL
instruction is added to the
pro-
gram
counter.
If AI
contains
a
0,
the
program
counter
remains unchanged from
the
value
loaded
from memory.
Note:
Return from a
CALL
trap will be to the trapping
i nstructi on
+ 1.
HARDWARE
ERROR
TRAP
A hardware error trap occurs when
either'a
parity or a
se-
quence
check
fault
error
is
detected
by a memory
unit,
basic
processor, or
any
processor communicating with
the
basic
processor, resulting in a basic processor trap to
location
X'4C'.
The Trap Condition
Code
bits (TCCs)
are
set
to
X'OOOl' for
all
hardware fault conditions
except
general
register
and
control register parity errors, where
the
TCCs
are
set
to
X'OOOQ'.
To
determine which
of
the
possible
detectable
errors
is
re-
sponsible for
the
hardware error
trap,
the fault status
reg-
isters of the various processors
in
the system must be polled
with
either
the POLP or
POLR
instruction;
the
memoris
status register must be read with the
LMS
instruction. The
fault
status
register
bit
settings for processors and
interfaces
are
given
in Appendix
C,
Table
C-1.
The
fault
status
reg-
ister
bit
settings for the memory
unit
are
given
in
Ap-
pendix
C,
Table
C-2.
If
the
basic processor
detects
or
receives
a report
of
a
hard-
ware
error,
it
attempts
automatic
retry
of
the
current
in-
struction.
If retry is unsuccessful, the
basic
processor traps
to
location
X'4C'.
If
retry
is successful, the basic processor
resumes
execution
of
the
next
instruction in the program,
the
Processor Fault Interrupt (PFI)
and
the "successful
in-
struction
retry"
bit
(bit position 11) in the Basic Processor
Fault
Status Register
are
set
to 1. There is
automatic
in-
struction retry
only
for hardware errors
that
would otherwise
result
in a basic processor trap to
location
X'4C'.
Auto-
matic
instruction retry is
inhibited
if:
1. The
current
instruction is
being
executed
as a trap
or
interrupt
instruction;
2. The Register
Altered
bit
(bit position 60)
of
the
cur-
rent
PSWs
is
set
to 1
at
the
time
of
detection
of
the
hardware error;
or
3.
The Retry Inhibit
bit
(bit position 0) in
the
basic
pro-
cessor control
register
is
set
to 1.
INSTRUCTION
EXCEPTION
TRAP
The instruction
exception
trap
occurs
whenever
the
basic
processor
detects
a
set
of
operati
ons
that
are
ca
II
ed for in
an instruction
but
cannot
be
executed
because
of
either
a
hardware restri
ction
or a previous
event.
The
different
conditions
that
cause
the
instruction
exception
trap
are:
1.
A
processor-detected
fault
that
occurs during
the
ex-
ecution
of an
interrupt
or
trap
entry
sequence.
An
interrupt
or
trap
entry
sequence
is
defined
as the
se-
quence
of
events
that
consists of: (a)
initiating
an
interrupt
or
trap;
(b)
accessing
the instruction in the
interrupt
or
trap
location;
and
(c)
executing
that
in-
struction,
including
the
exchange
of
the program
status words,
if
required.
Note
that
instructions
ex-
ecuted
as a result
of
the
interrupt
or
trap location
are
not
considered
part
of
the entry
sequence.
2.
An
illegal
instruction
is
found in the trap (not
XPSD
or
PSS)
or
interrupt
(not XPSD, PSS,
MTB,
MTH,
MTW)
lo-
cation
when
executing
a trap
or
interrupt
sequence.
3.
Bit positions
12-14
of
the MOVE TO MEMORY
CON-
TROL
(MMC) instruction
are
interpreted
as an
illegal
T rap System 43
