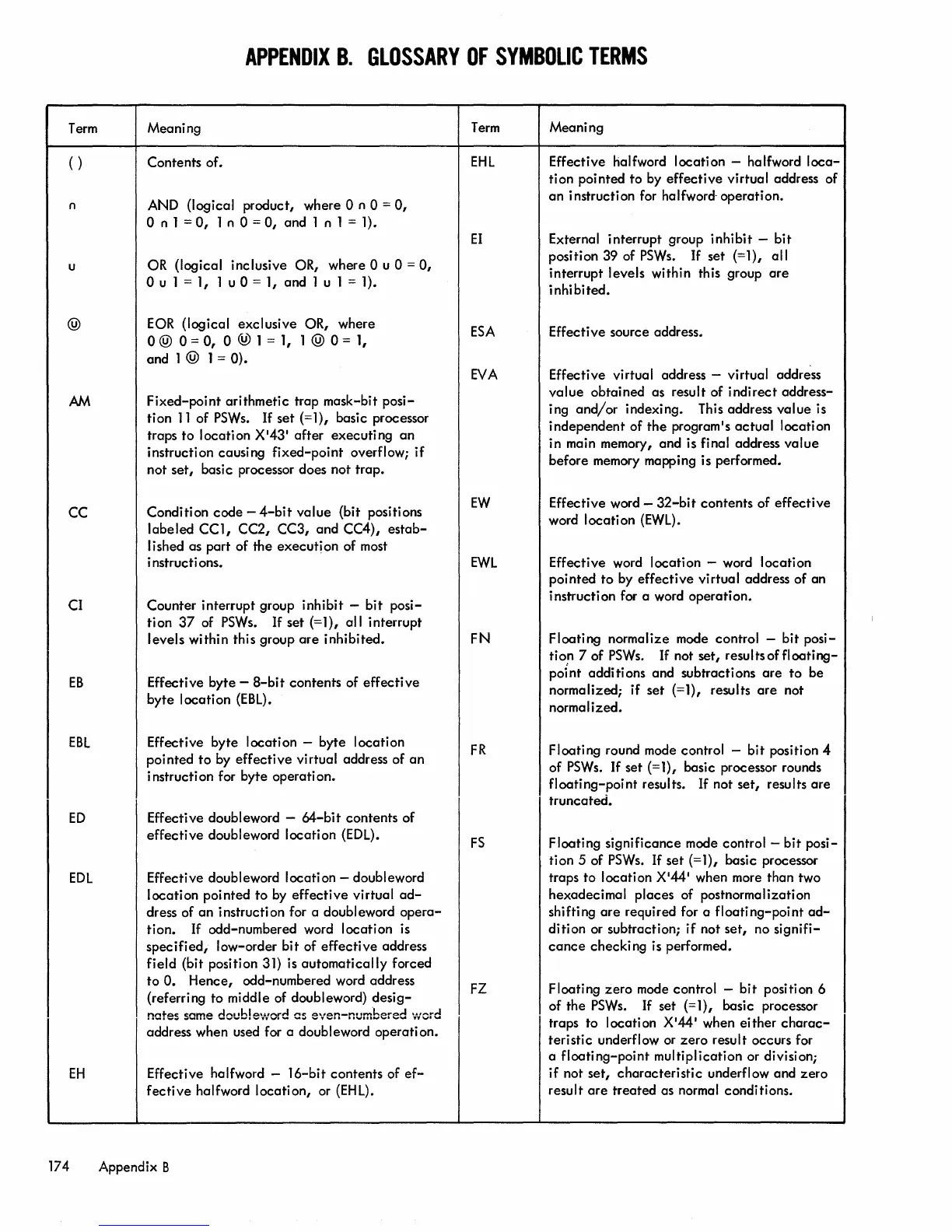

APPENDIX
B.
GLOSSARY
OF
SYMBOLIC
TERMS
Term
()
n
u
@
CC
CI
EB
EBl
ED
EDl
EH
Meaning
Contents of.
AND (logical product, where
0 n 0 =
0,
o n 1 =
0,
1 n 0 =
0,
and 1 n 1 = 1).
OR
(logical inclusive OR, where 0 u 0 =
0,
Ou
1
=1,1
uO=l,
and 1 u 1
=1).
EOR
(logical exclusive OR, where
o @ 0 =
0,
0 @ 1 =
1,
1 @ 0 = 1,
and
1 @ 1 = 0).
Fixed-point
arithmetic trap mask-bit
posi-
tion
11
of
PSWs.
If
set
(=1), basic processor
traps to location
X
'
43
1
after executing
an
instruction causing fixed-point overflow;
if
not set, basic processor does not trap.
Condition
code
-
4-bit
value (bit positions
labeled CC1, CC2, CC3, and CC4),
estab-
lished as part of the execution of most
i nstructi ons.
Counter interrupt group inhibit -
bit
posi-
tion
37
of
PSWs.
If
set (=1), all interrupt
levels within this group
are
inhibited.
Effective byte -
8-bit
contents of
effective
byte location (EBl).
Effective byte location - byte location
pointed
to
by
effective
virtual address of
an
i nstructi on for byte operati on.
Effective doubleword -
64-bit
contents of
effective
doubleword location (EDl).
Effective doubleword location - doubleword
location pointed
to
by
effective
virtual
ad-
dress of
an
instruction for a doubleword
opera-
tion.
If
odd-numbered word location
is
spec ifi
ed,
low-order bit of effecti ve address
field (bit position 31) is automatically forced
to
O.
Hence, odd-numbered word address
(referring to middle of doubleword)
desig-
nates same
doub!e\AJord
as
even-num'bered v{ord
address when used for a doubleword operation.
Effective halfword -
16-bit
contents of
ef-
fective
halfword location, or (EHl).
174 Appendix B
Term
EHl
EI
ESA
EVA
EW
EWl
FN
FR
FS
FZ
Meaning
Effective halfword location - halfword
loca-
tion pointed to by
effective
virtual address of
an
instruction for halfword- operation.
External interrupt group inhibit -
bit
position 39 of
PSWs.
If
set (=1),
all
interrupt levels within this group
are
inhibited.
Effective source address.
Effective virtual address - virtual address
value
obtained as result of
indirect
address-
ing
and/or
indexing. This address value is
independent of
the
program's
actual
location
in main memory, and is final address
value
before memory mapping is performed.
Effective word -
32-bit
contents of
effective
word location (EWl).
Effective word location - word location
pointed to by
effective
virtual address of an
instruction for a word operation.
Floating
normalize mode control - bit posi-
tion 7 of
PSWs.
If
not set, resul ts of
floating-
point additions and subtractions
are
to
be
normalized;
if
set
(=1), results
are
not
normalized.
Floating round mode control -
bit
position 4
of
PSWs.
If
set (=1), basic processor rounds
floating-point
results.
If
not set, results
are
truncated.
Floating significance mode control -
bit
posi-
tion
5 of
PSWs.
If
set
(=1), basic processor
traps to location
X
'
44
1
when more than two
hexadecimal places of postnormalization
shifting
are
required for a
floating-point
ad-
dition or subtraction;
if
not
set,
no signifi-
cance
checking is performed.
Floating
zero
mode control -
bit
position 6
of the
PSWs.
If set (=1), basic processor
traps to location
X'44' when
either
charac-
teristic underflow or
zero
result occurs for
a
floating-point
multiplication or division;
if not set,
characteristic
underflow and
zero
result
are
treated as normal conditions.
