Interrupt
State
FF
Configuration
Disarmed
~
I"
Armed
[$
III'
Waiting
[$
I
Active
~
level
Enable
Source
of
Change
Signal
Basic Processor
Basic Processor
or External Signal
~
~
Bas
i c Processor
Interrupt Timing
Group
Inhibit
off
No
higher-priority
level
active,
or
waiting
and
enabled

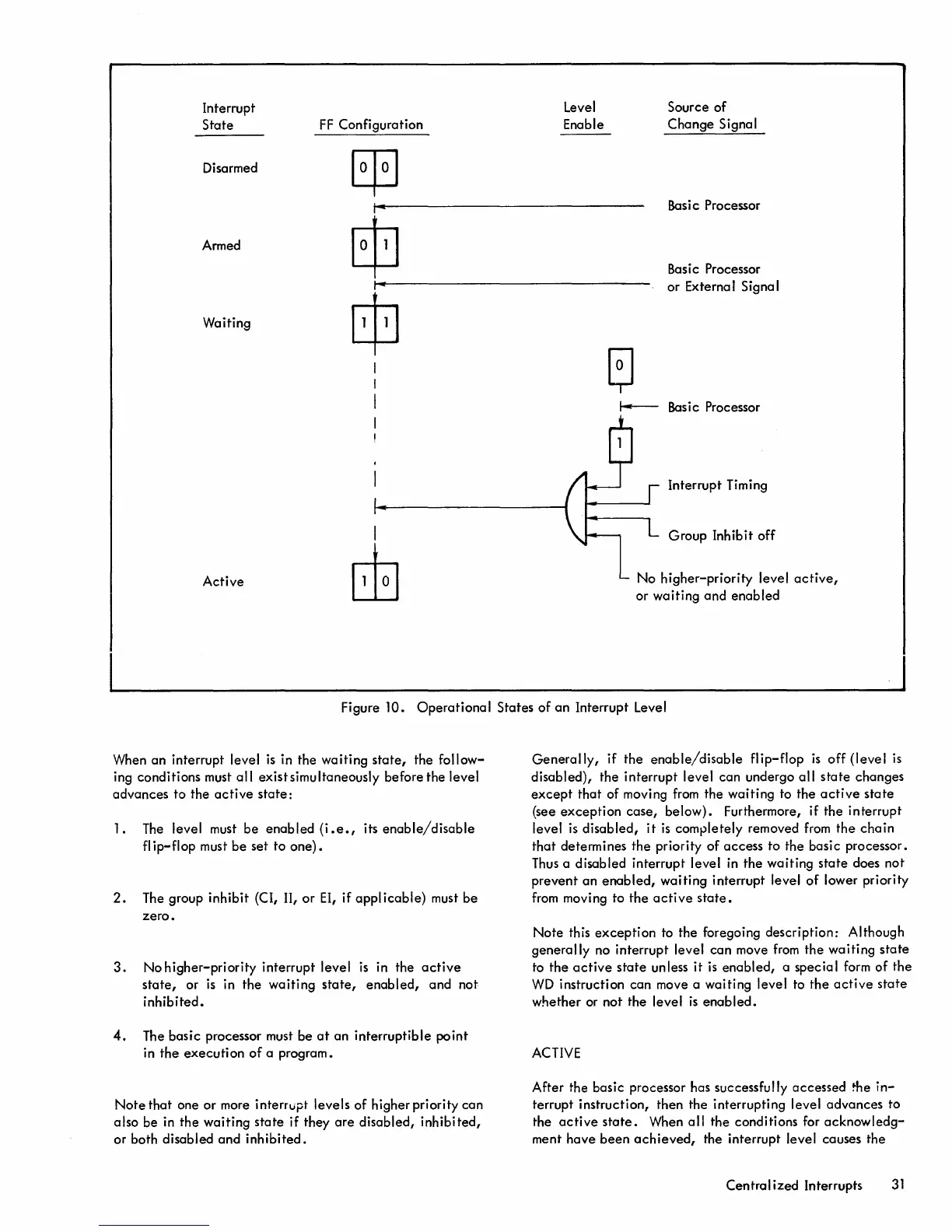

Figure
10.
Operational
States
of
an
Interrupt
level
When
an
interrupt level
is
in the
waiting
state,
the
follow-
ing conditions must
all
exist
simultaneously before the level
advances to the
active
state:
1.
The level must
be
enabled
(i
.e.,
its
enable/disable
fl
ip-flop
must
be
set
to
one).
2.
The group inhibit (CI, II,
or
EI,
if appl
icable)
must
be
zero.
3.
No
higher-priority
interrupt
level
is
in the
active
state,
or
is
in the
waiting
state,
enabled,
and
not
inhibited.
4.
The
basic
processor must
be
at
an
interruptible
point
in
the
execution
of
a program.
Note
that
one or more interrupt levels of higher priority
can
also be in
the
waiting
state
if
they
are
disabled,
inhibited,
or
both disabled
and
inhibited.
Generally,
if
the
enable/disable
flip-flop
is
off
(level
is
disabled),
the
interrupt
level
can
undergo
all
state
changes
except
that
of moving
from
the
waiting
to the
active
state
(see
excepti
on
case,
be low). Furthermore,
if
the
interrupt
level
is
disabled,
it
is
completely removed from
the
chain
that
determines the priority
of
access
to
the
basic processor.
Thus a disabled interrupt
level
in
the
waiting
state
does
not
prevent
an
enabled,
waiting
interrupt level
of
lower priority
from moving to
the
active
state.
Note
this
exception
to the foregoing description: Although
generally
no
interrupt
level
can
move
from
the
waiting
state
to
the
active
state
un less
it
is
enabled,
a
specia
I form
of
the
WD
instruction
can
move a
waiting
level to
the
active
state
whether
or not the level
is
enabled.
ACTIVE
After the basic processor has successfully
accessed
!"he
in-
terrupt instruction, then the interrupting level
advances
to
the
active
state.
When
all
the
conditions for
acknowledg-
ment
have
been
achieved,
the interrupt level causes
the
Central
ized
Interrupts
31
