General Procedures and Information
PHASER 3124 / PHASER 3125 09/06 6-9
Toner Cartridge

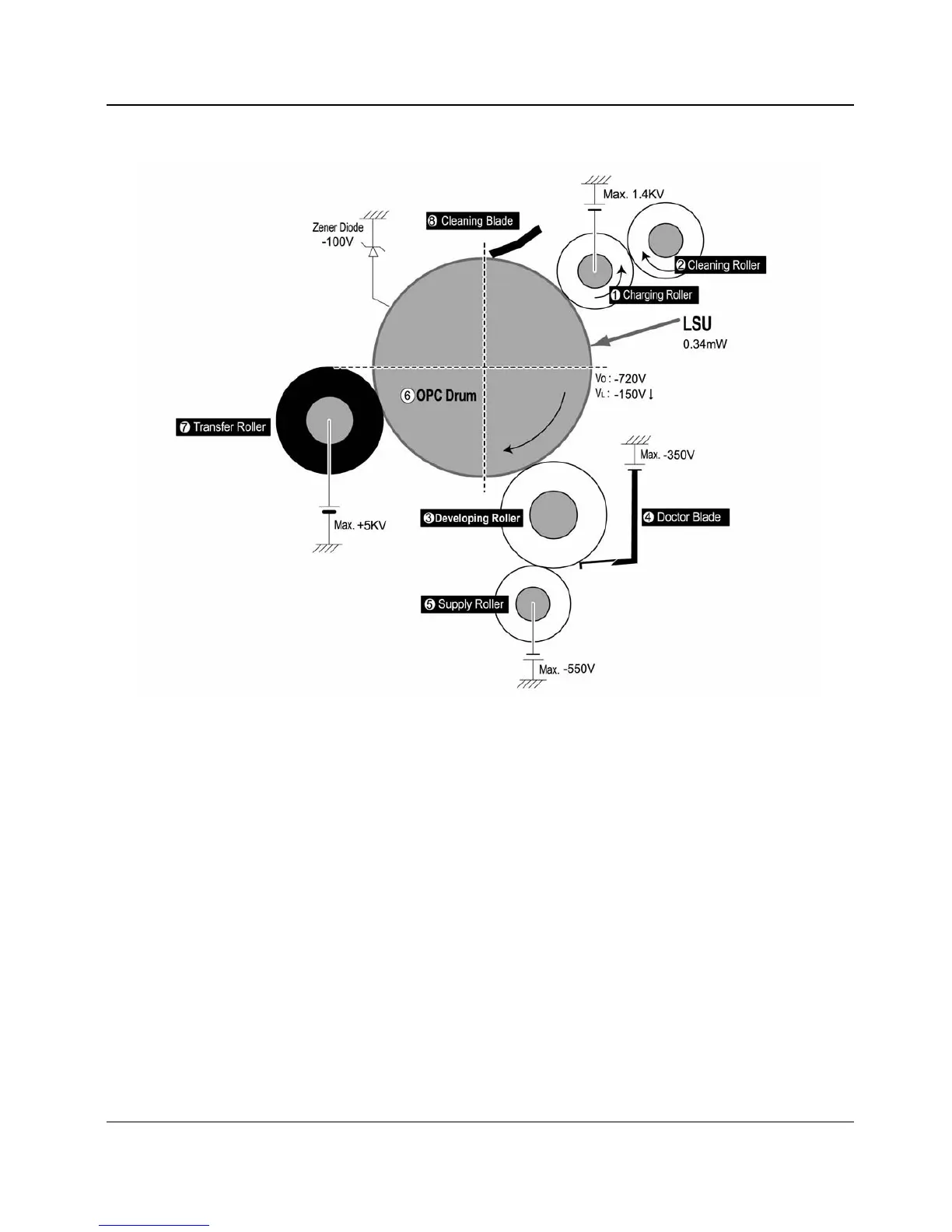

Figure 3 Toner Cartridge Layout
The OPC unit consists of an OPC drum and a charge roller, while the developer unit consists of
a toner cartridge, supply roller, developing roller and blade.
- OPC Cleaning: Removes toner by using static electricity
- OPC drum protective shutter: N/A
- Classifying device for toner cartridge: ID is classified by interruption of the frame channel.
