Repairs/Adjustments
4-4 09/06 PHASER 3124 / PHASER 3125
REP 2 Cassette Tray
Parts list on PL 1
WARNING
Switch off the electricity to the machine. Dis-
connect the power cord from the customer
supply while performing tasks that do not
need electricity. Electricity can cause death or
injury. Moving parts can cause injury.

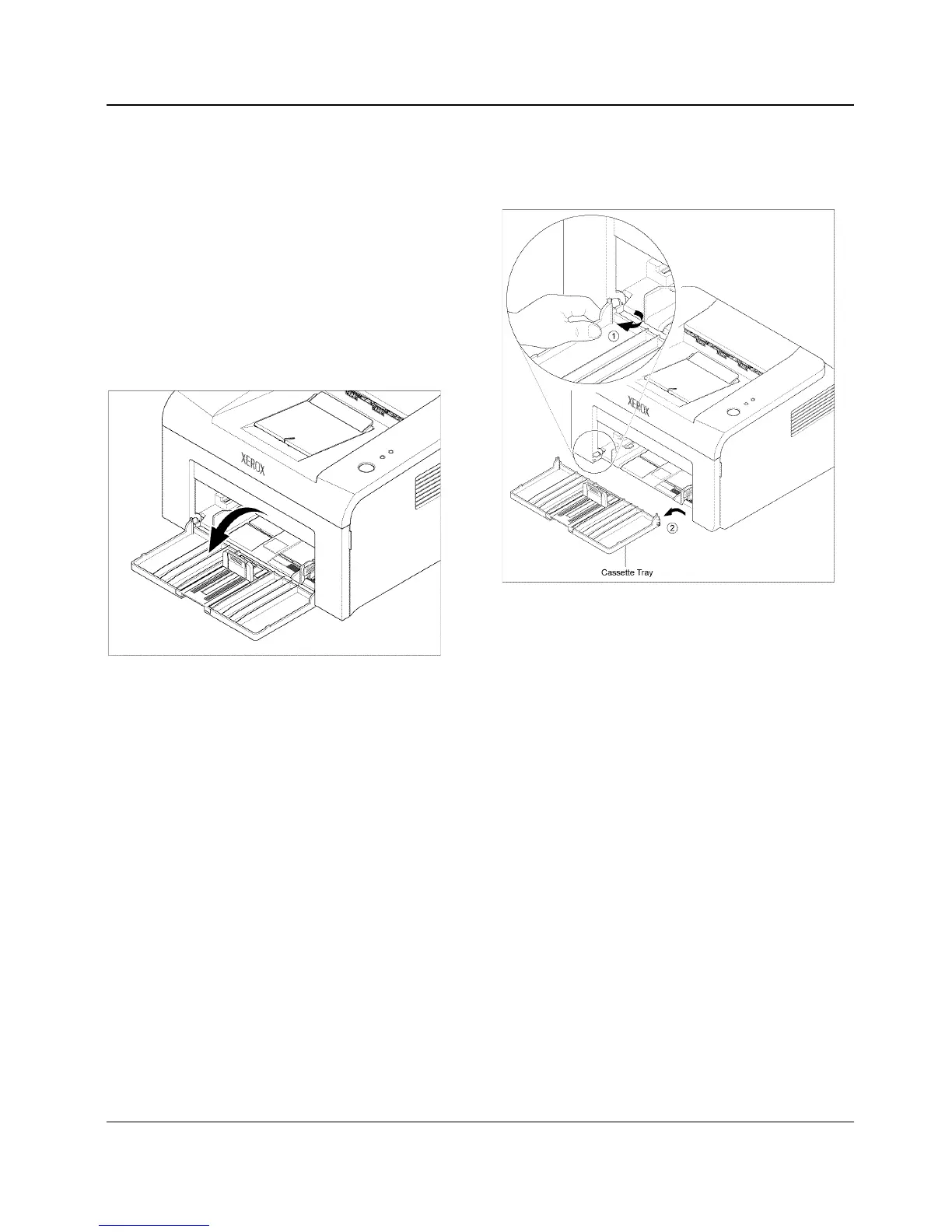

1. Open the cassette tray, Figure 1.
Figure 1
2. Unhinge the cassette tray in the direction
of the arrow, then remove the cassette
tray, Figure 2.
Figure 2
Replacement
Replacement is the reverse of the removal
procedure.
