Xerox Phaser 3124 - REP 10 Main PBA; REP 11 Main Drive Assembly

Repairs/Adjustments
PHASER 3124 / PHASER 3125 09/06 4-15
REP 10 Main PBA
Parts list on PL 1
WARNING
Switch off the electricity to the machine. Dis-
connect the power cord from the customer
supply while performing tasks that do not
need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
1. Remove the rear cover (refer to REP 3).

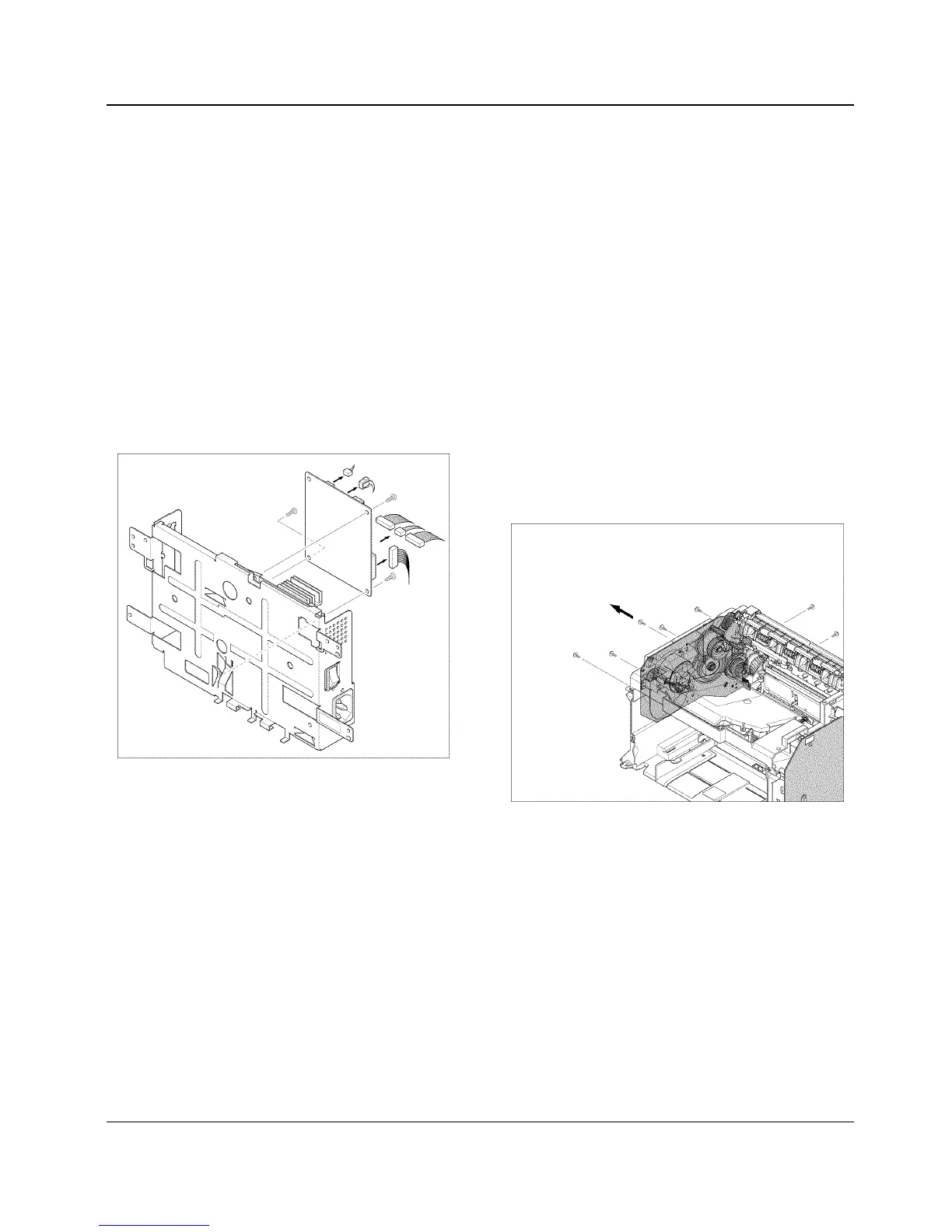

2. Disconnect all Main PBA connectors.
Remove 6 screws, then the Main PBA,
Figure 1.
Figure 1
Replacement
Replacement is the reverse of the removal
procedure.
REP 11 Main Drive Assembly
Parts list on PL 5
WARNING
Switch off the electricity to the machine. Dis-
connect the power cord from the customer
supply while performing tasks that do not
need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
1. Remove the front cover assembly (refer to
REP 1).
2. Remove the rear cover (refer to REP 3).
3. Remove the top cover assembly (refer to
REP 4).
4. Remove the left cover (refer to REP 5).
5. Remove 8 screws, Figure 1.
Figure 1
