Xerox Phaser 3124 Service Manual

Repairs/Adjustments
4-8 09/06 PHASER 3124 / PHASER 3125
REP 5 Left Cover and Right
Cover
Parts list on PL 1
WARNING
Switch off the electricity to the machine. Dis-
connect the power cord from the customer
supply while performing tasks that do not
need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
1. Remove the top cover (refer to REP 4).

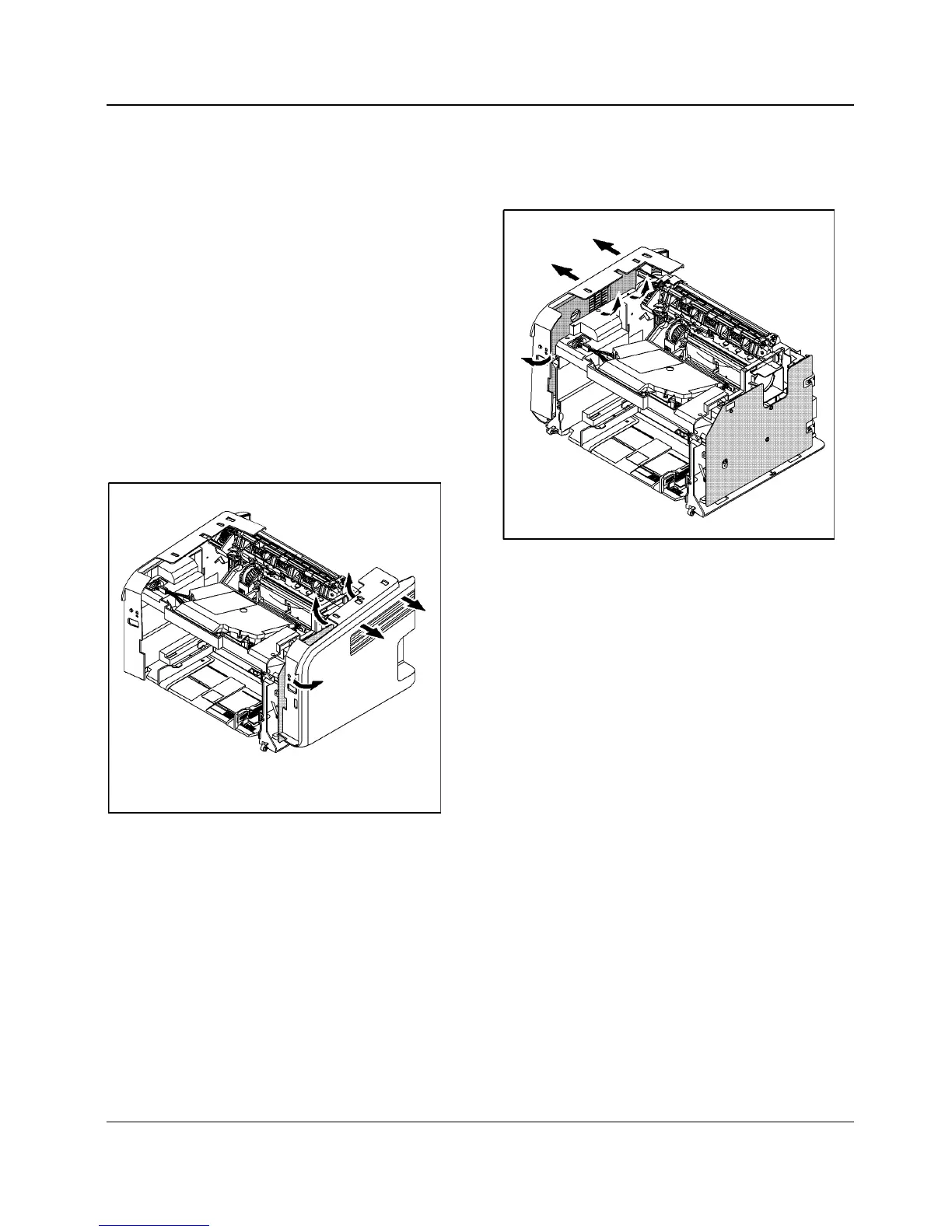

2. Gently flex the left cover in the direction of
the arrows, then remove the left cover,
Figure 1.
Figure 1
3. Gently flex the right cover in the direction
of the arrows, then remove the right
cover, Figure 2.
Figure 2
Replacement
Replacement is the reverse of the removal
procedure.
