Xerox Phaser 3124 - REP 3 Rear Cover

Repairs/Adjustments
PHASER 3124 / PHASER 3125 09/06 4-5
REP 3 Rear Cover
Parts list on PL 1
WARNING
Switch off the electricity to the machine. Dis-
connect the power cord from the customer
supply while performing tasks that do not
need electricity. Electricity can cause death or
injury. Moving parts can cause injury.

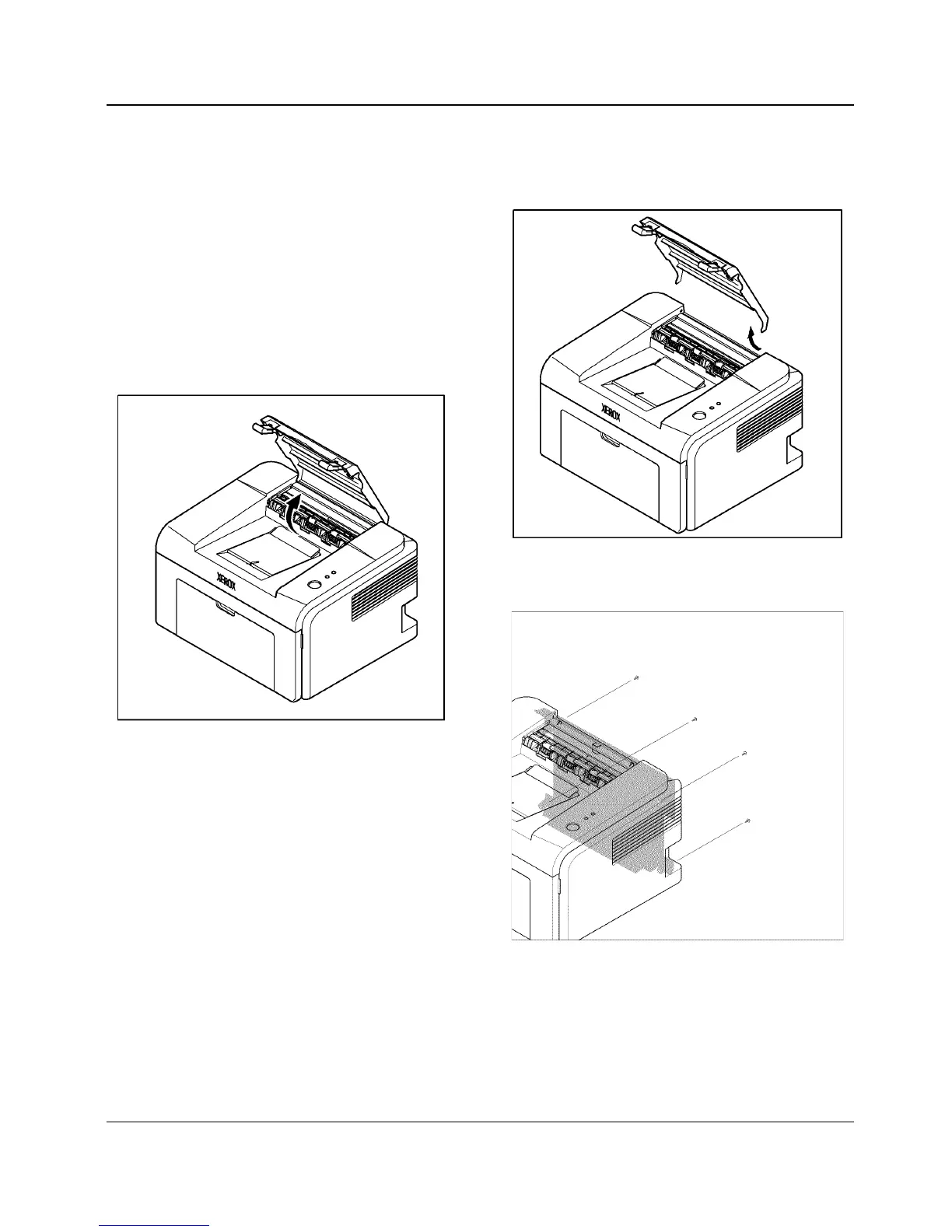

1. Open the exit cover, Figure 1.
Figure 1
2. Gently flex the exit cover in the direction
of the arrow, then remove the exit cover,
Figure 2.
Figure 2
3. Remove 4 screws, Figure 3.
Figure 3
