Xerox Phaser 3124 Service Manual

Repairs/Adjustments
4-14 09/06 PHASER 3124 / PHASER 3125
Replacement
1. When replacing the main drive assembly,
tighten the screws in the reverse order
they are numbered.
Replacement is the reverse of the removal
procedure.
REP 9 SMPS
Parts list on PL 1
WARNING
Switch off the electricity to the machine. Dis-
connect the power cord from the customer
supply while performing tasks that do not
need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
1. Remove the rear cover (refer to REP 1).
2. Disconnect all SMPS connectors.
Remove 5 screws, then the SMPS, Figure
1.

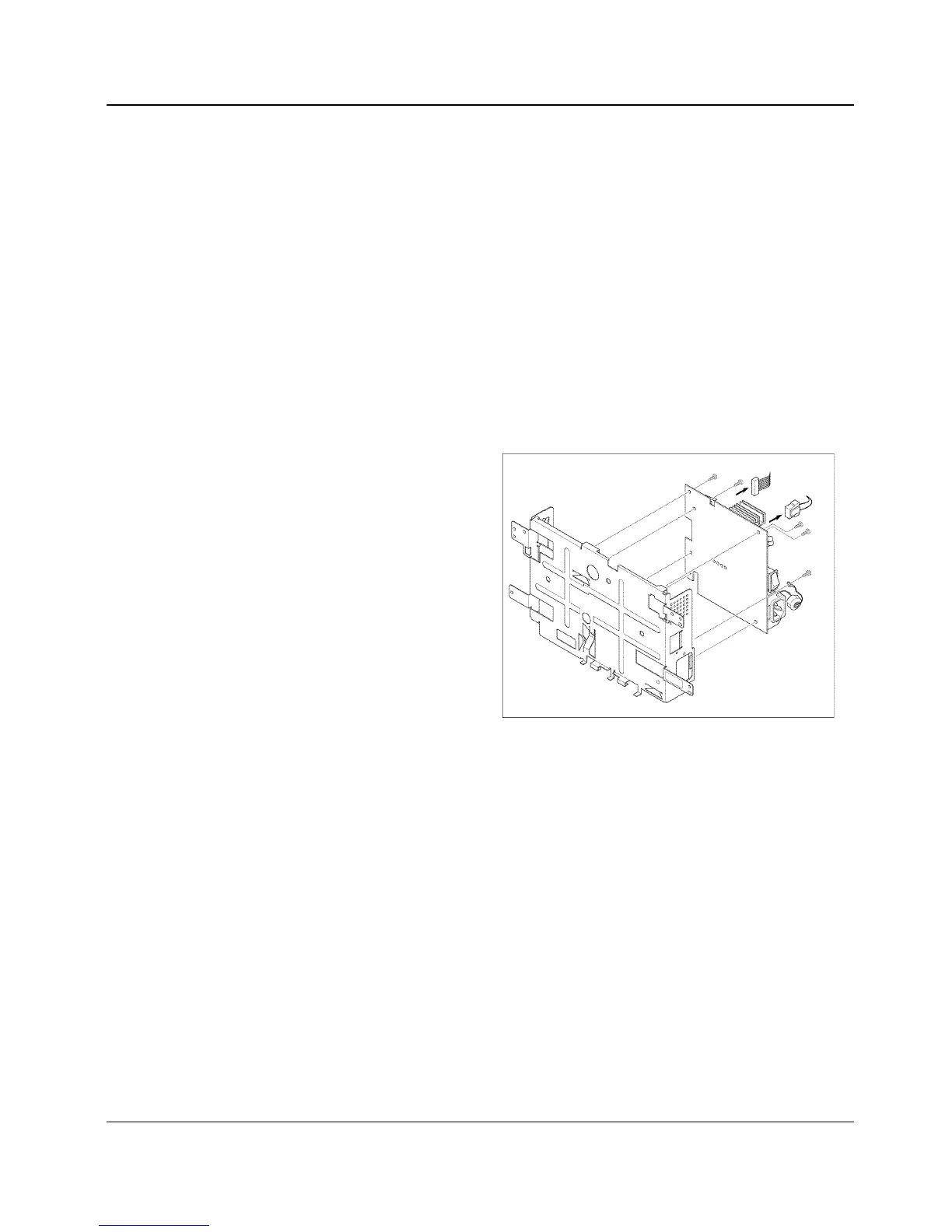

Figure 1
Replacement
Replacement is the reverse of the removal
procedure.

Xerox Phaser 3124 Specifications

General

Color	No
Print technology	Laser
Maximum resolution	600 x 1200 DPI
Time to first page (black, normal)	9 s
Print speed (black, normal quality, A4/US Letter)	25 ppm
Internal memory	8 MB
Sound power level (standby)	35 dB
Sound pressure level (printing)	53 dB
Paper tray media types	Envelopes, Labels, Plain paper, Transparencies
Non-ISO print media sizes	Folio
ISO A-series sizes (A0...A9)	A4
Power requirements	220 – 240 V, 50/60 Hz
Power consumption (standby)	65 W
Power consumption (printing)	390 W
Power consumption (PowerSave)	6.5 W
Operating temperature (T-T)	10 - 32 °F
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Dimensions (WxDxH)	358 x 298 x 253 mm
