Xerox Phaser 3124 Service Manual

Repairs/Adjustments
PHASER 3124 / PHASER 3125 09/06 4-9
REP 6 Engine Shield
Parts list on PL 1
WARNING
Switch off the electricity to the machine. Dis-
connect the power cord from the customer
supply while performing tasks that do not
need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
1. Remove the front cover assembly (refer to
REP 1).
2. Remove the rear cover (refer to REP 3).
3. Remove the top cover assembly (refer to
REP 4).
4. Disconnect all connectors from the main
PBA and SMPS except CN 18 (Phaser
3124) / CN 11 (Phaser 3125) from the
main PBA and CON 2 from the SMPS,
Figure 1.

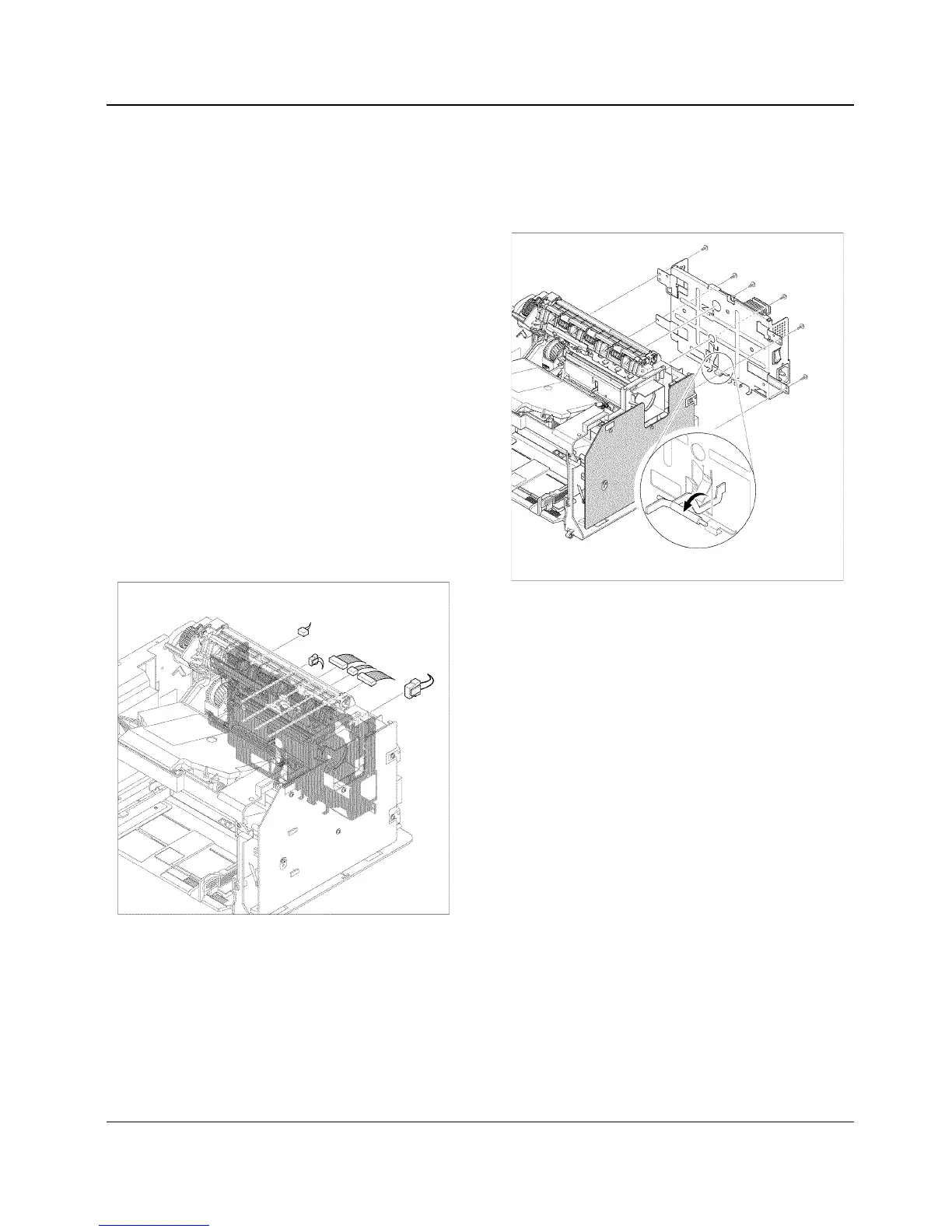

Figure 1
5. Remove 6 screws, then the shield assem-
bly. Carefully release all the harnesses
wound around the shield assembly.
CAUTION
Take care not to bend the feed sensor actua-
tor when removing and replacing the shield
assembly, Figure 2.
Figure 2
Replacement
Replacement is the reverse of the removal
procedure.
