Xerox Phaser 3124 - Rep 12 Lsu; REP 13 Paper Path Assembly

Repairs/Adjustments
4-18 09/06 PHASER 3124 / PHASER 3125
REP 12 LSU
Parts list on PL 1
WARNING
Switch off the electricity to the machine. Dis-
connect the power cord from the customer
supply while performing tasks that do not
need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
1. Remove the top cover (refer to REP 4).
2. Remove 3 screws, then lift the LSU and
disconnect all the harnesses attached.
Remove the LSU, Figure 1.

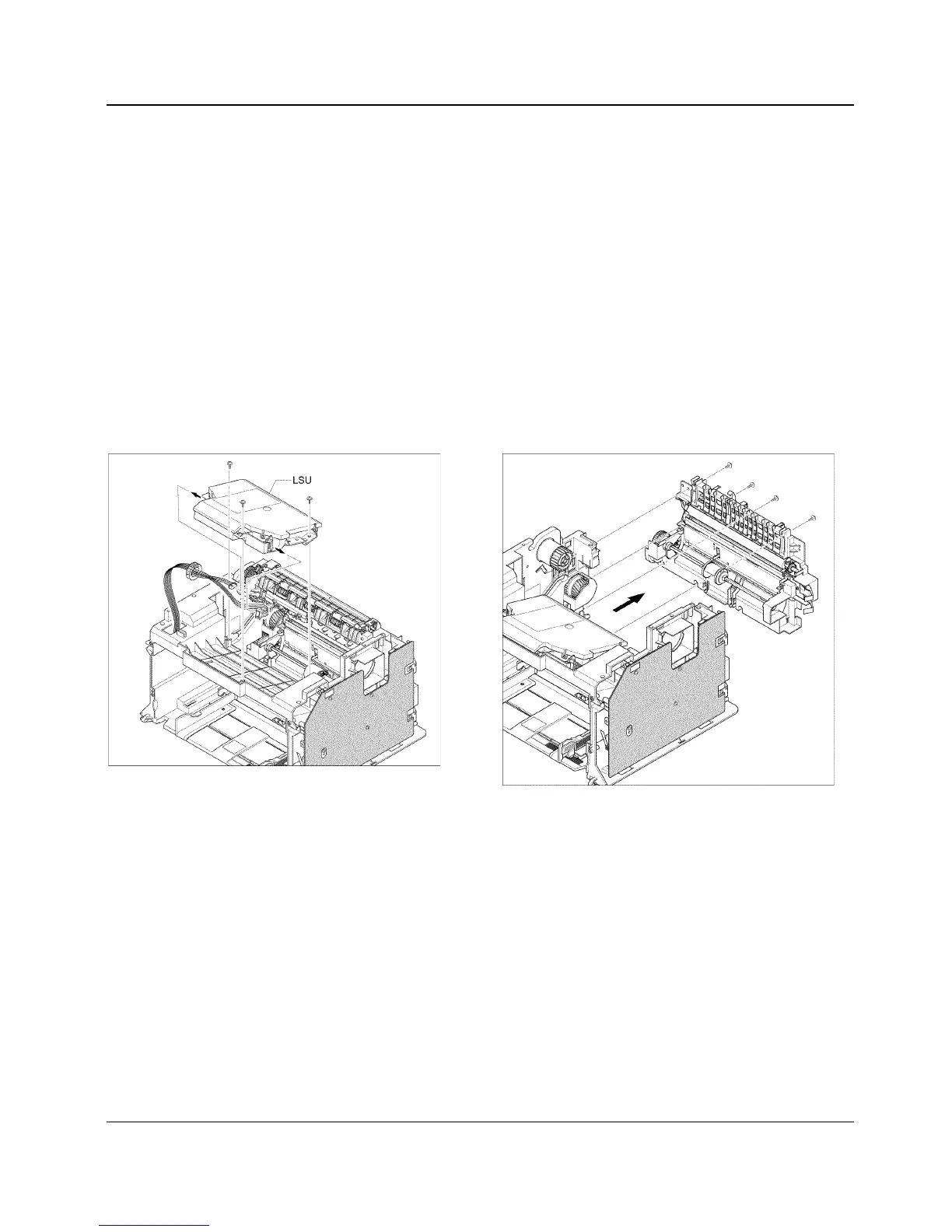

Figure 1
Replacement
Replacement is the reverse of the removal
procedure.
REP 13 Paper Path Assembly
Parts list on PL 4
WARNING
Switch off the electricity to the machine. Dis-
connect the power cord from the customer
supply while performing tasks that do not
need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
1. Remove the fuser assembly (refer to REP
6).
2. Remove 4 screws, then the paper path
assembly, Figure 1.
Figure 1
