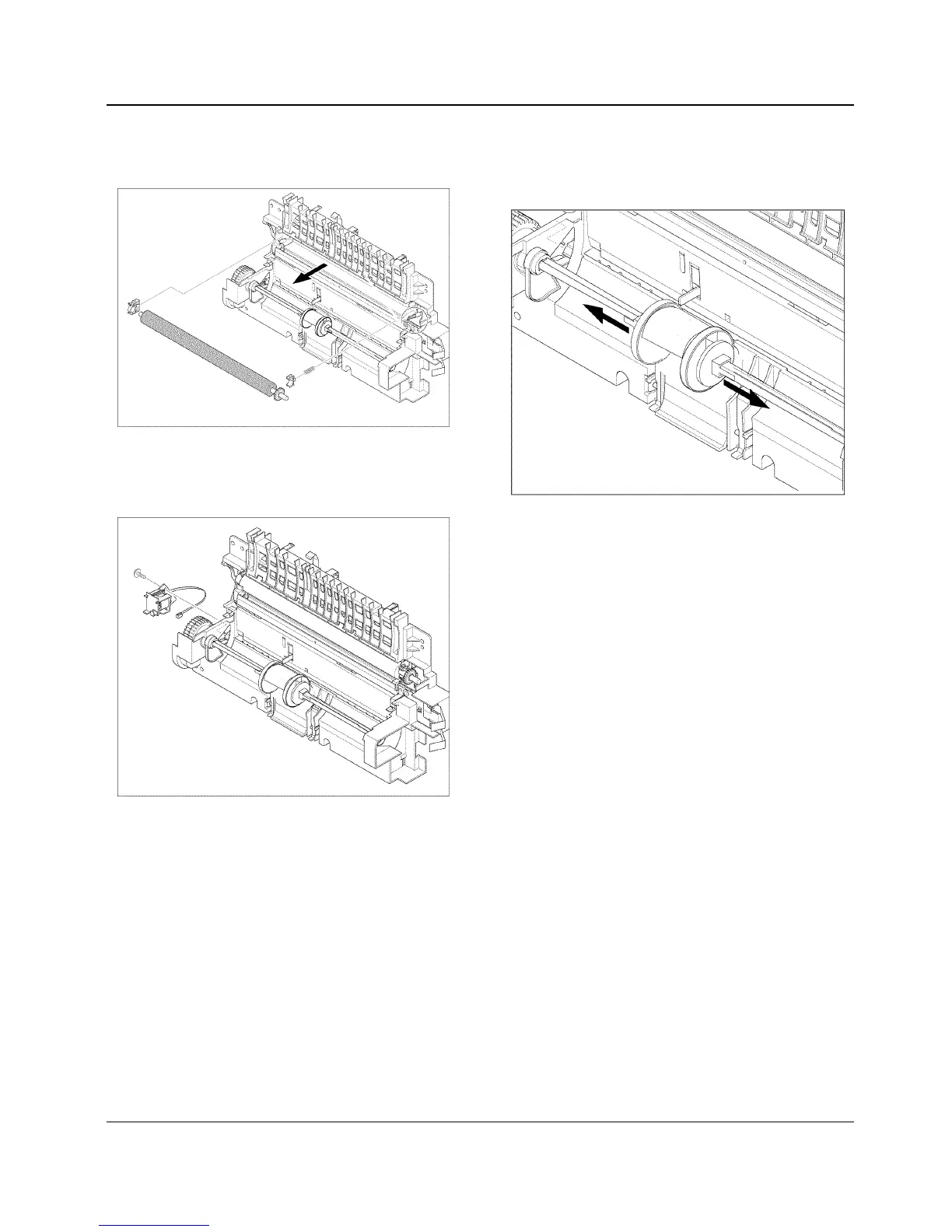

3. Unlatch the transfer roller bushes then
remove the transfer roller, Figure 2.
Figure 2
4. Remove 1 screw, then the solenoid, Fig-
ure 3.
Figure 3
5. Release the catches on both sides of the
pick up assembly, then slide them apart,
Figure 4.
Figure 4
6. Remove the pick up assembly.
Replacement
Replacement is the reverse of the removal
procedure.
