Repairs/Adjustments
4-10 09/06 PHASER 3124 / PHASER 3125
REP 7 Fuser Assembly
Parts list on PL 3
WARNING
Switch off the electricity to the machine. Dis-
connect the power cord from the customer
supply while performing tasks that do not
need electricity. Electricity can cause death or
injury. Moving parts can cause injury.

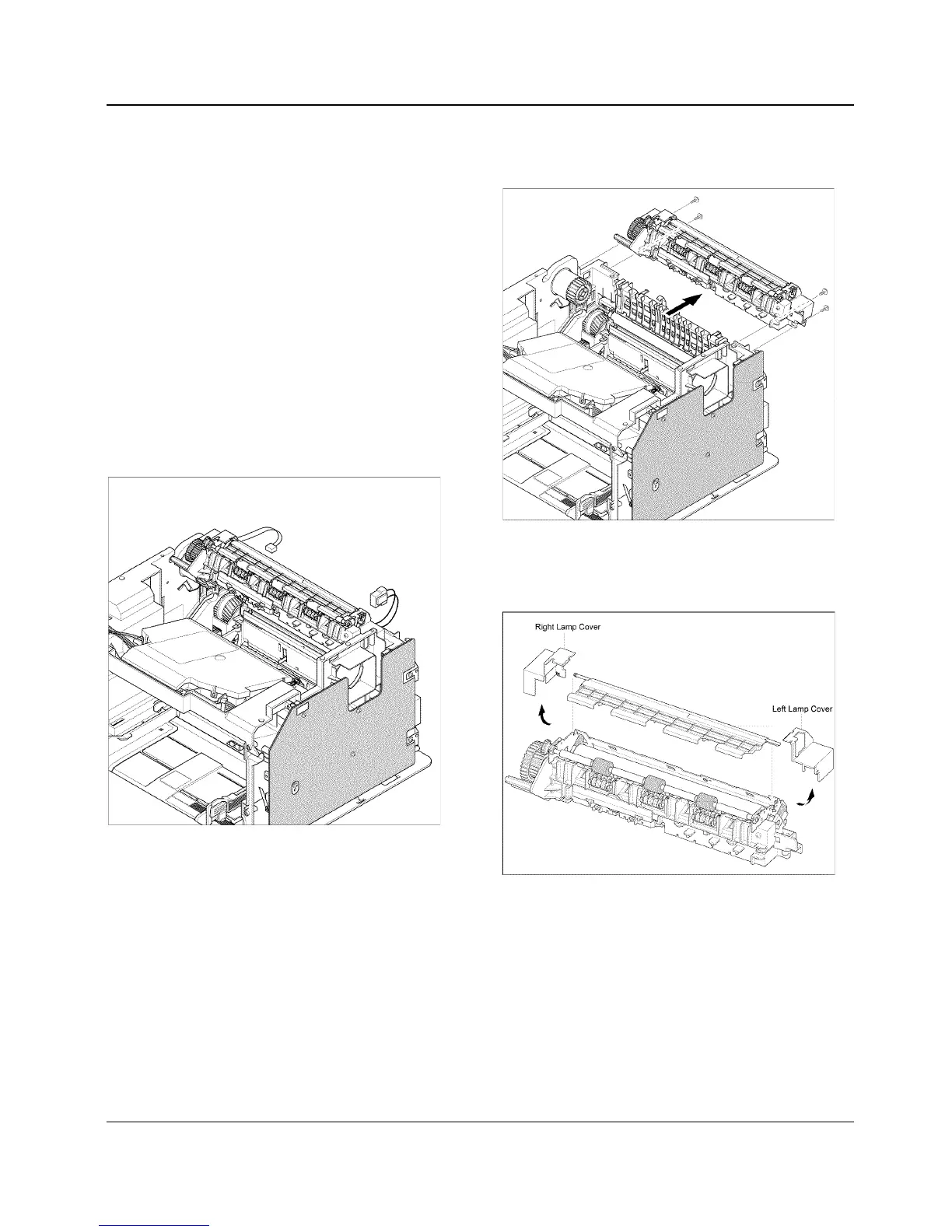

1. Remove the engine shield (refer to REP
6).
2. Disconnect CN 1 (Phaser 3124) / CN 4
(Phaser 3125) from the main PBA and
CON 1 from the SMPS, Figure 1.
Figure 1
3. Remove 4 screws, then the fuser assem-
bly, Figure 2.
Figure 2
4. Remove the right lamp cover, left lamp
cover and the fuser dummy, Figure 3.
Figure 3
To Next Page
