Repairs/Adjustments
PHASER 3124 / PHASER 3125 09/06 4-3
REP 1 Front Cover Assembly
Parts list on PL 1
WARNING
Switch off the electricity to the machine. Dis-
connect the power cord from the customer
supply while performing tasks that do not
need electricity. Electricity can cause death or
injury. Moving parts can cause injury.

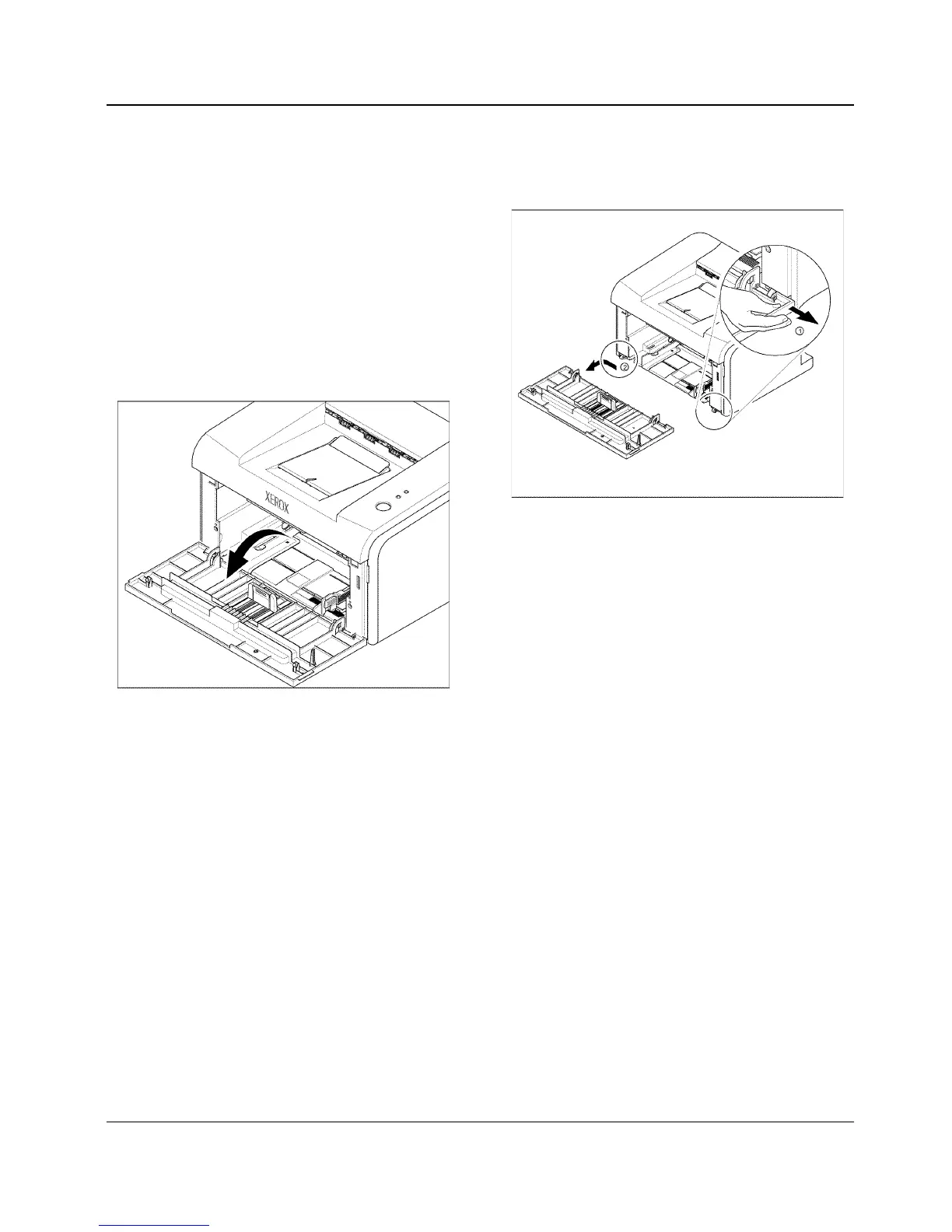

1. Open the front cover, Figure 1.
Figure 1
2. Gently flex the right hinge of the front
cover in the direction of the arrow, then
remove the front cover, Figure 2.
Figure 2
Replacement
Replacement is the reverse of the removal
procedure.
