Repairs/Adjustments
PHASER 3124 / PHASER 3125 09/06 4-13
REP 8 HVPS
Parts list on PL 1
WARNING
Switch off the electricity to the machine. Dis-
connect the power cord from the customer
supply while performing tasks that do not
need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
1. Remove the front cover assembly (refer to
REP 1).
2. Remove the rear cover (refer to REP 3).
3. Remove the top cover (refer to REP 4).
4. Remove the left cover (refer to REP 5).
5. Remove 6 screws, then the protective
sheet.

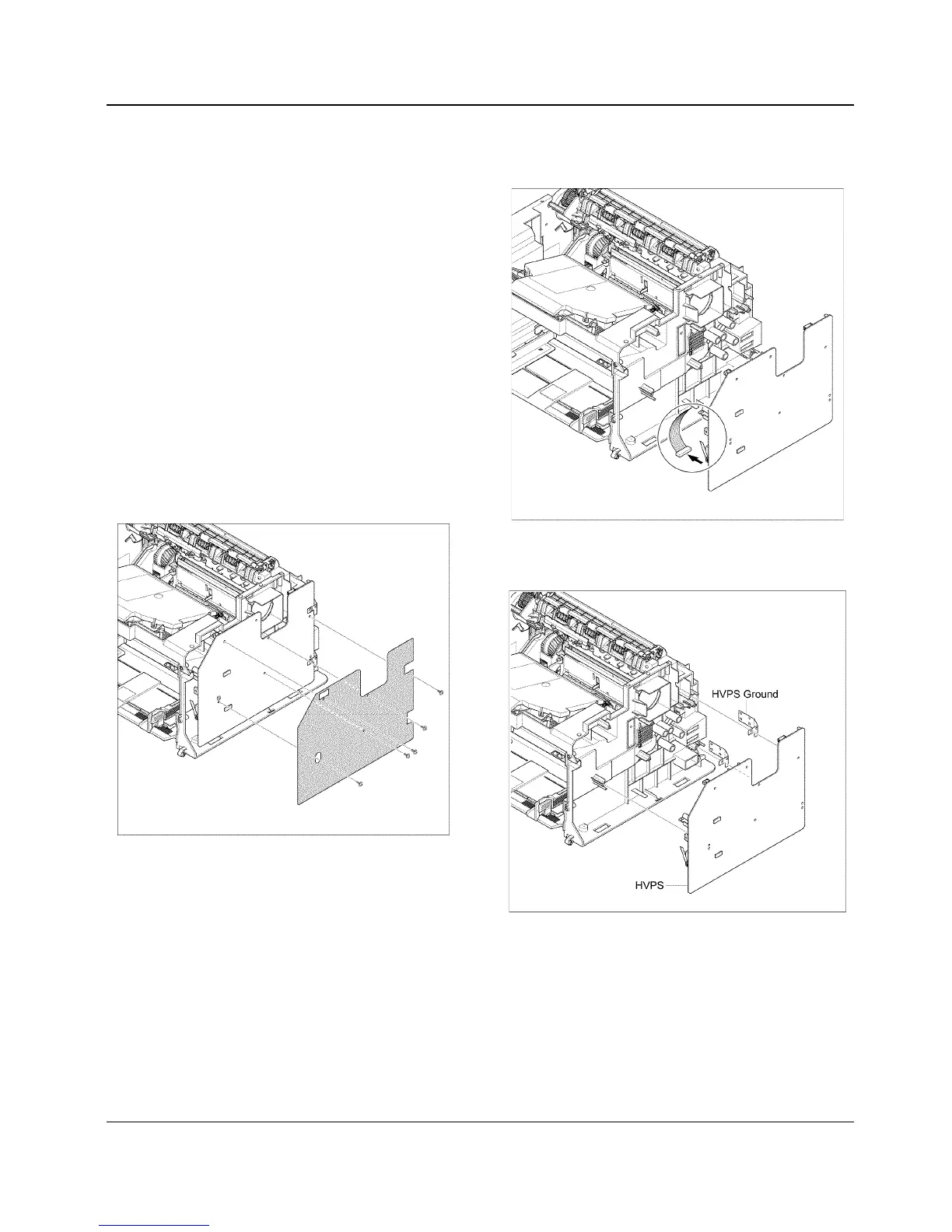

Figure 1
6. Disconnect CN 1 and CN 3, then remove
the HVPS, Figure 2.
Figure 2
7. Remove 2 HVPS grounds.
Figure 3
