Repairs/Adjustments
4-16 09/06 PHASER 3124 / PHASER 3125

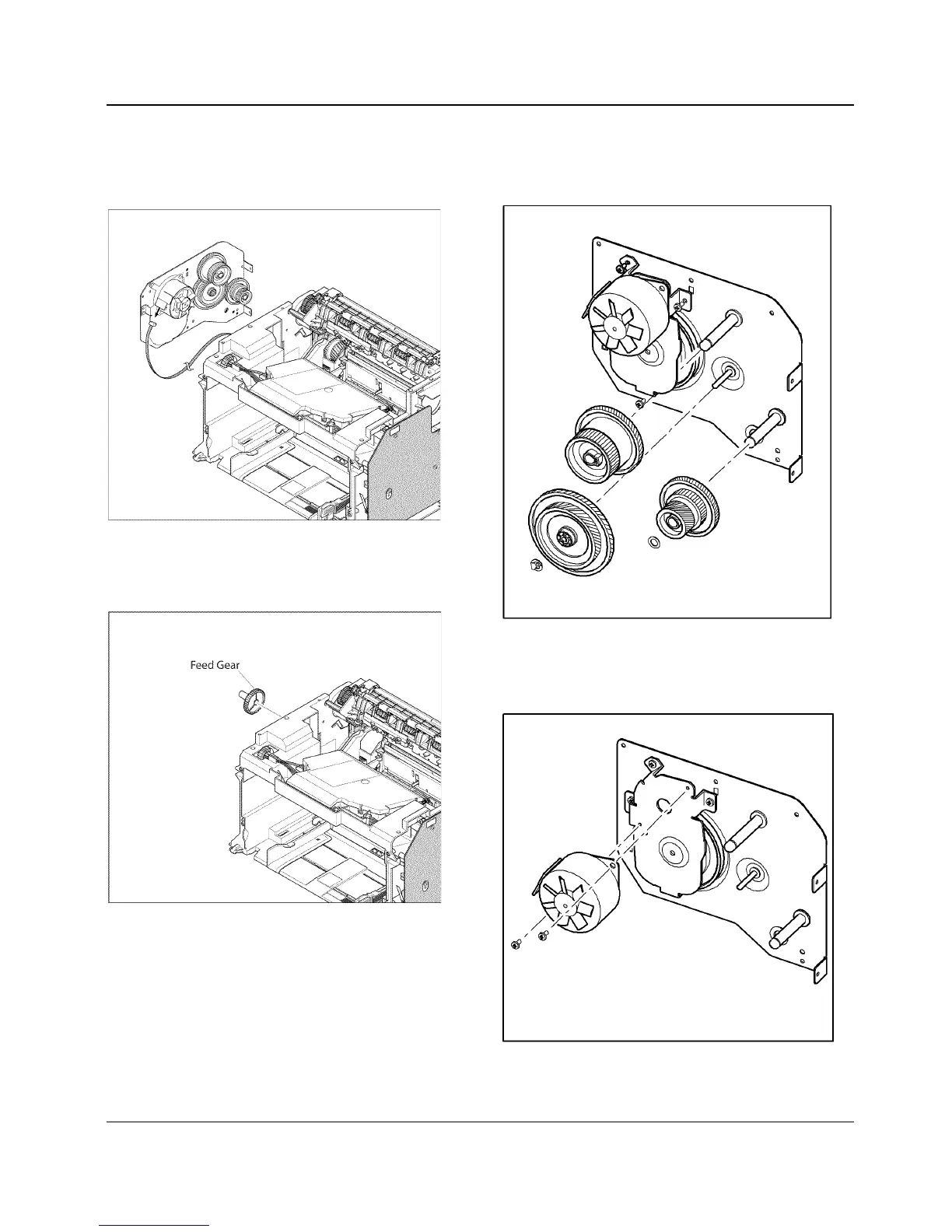

6. Disconnect the main motor harness, then
remove the main drive assembly, Figure
2.
Figure 2
7. Remove the feed gear if necessary, Fig-
ure 3.
Figure 3
8. Remove the fuser drive gear, OPC drive
gear, then the RDCN gear 113/83, Figure
4.
Figure 4
9. Remove the 2 screws, then the main
motor, Figure 5.
Figure 5
To Next Page
