Control Panel
Phaser® 8510/8560MFP Multifunction Product
1-10

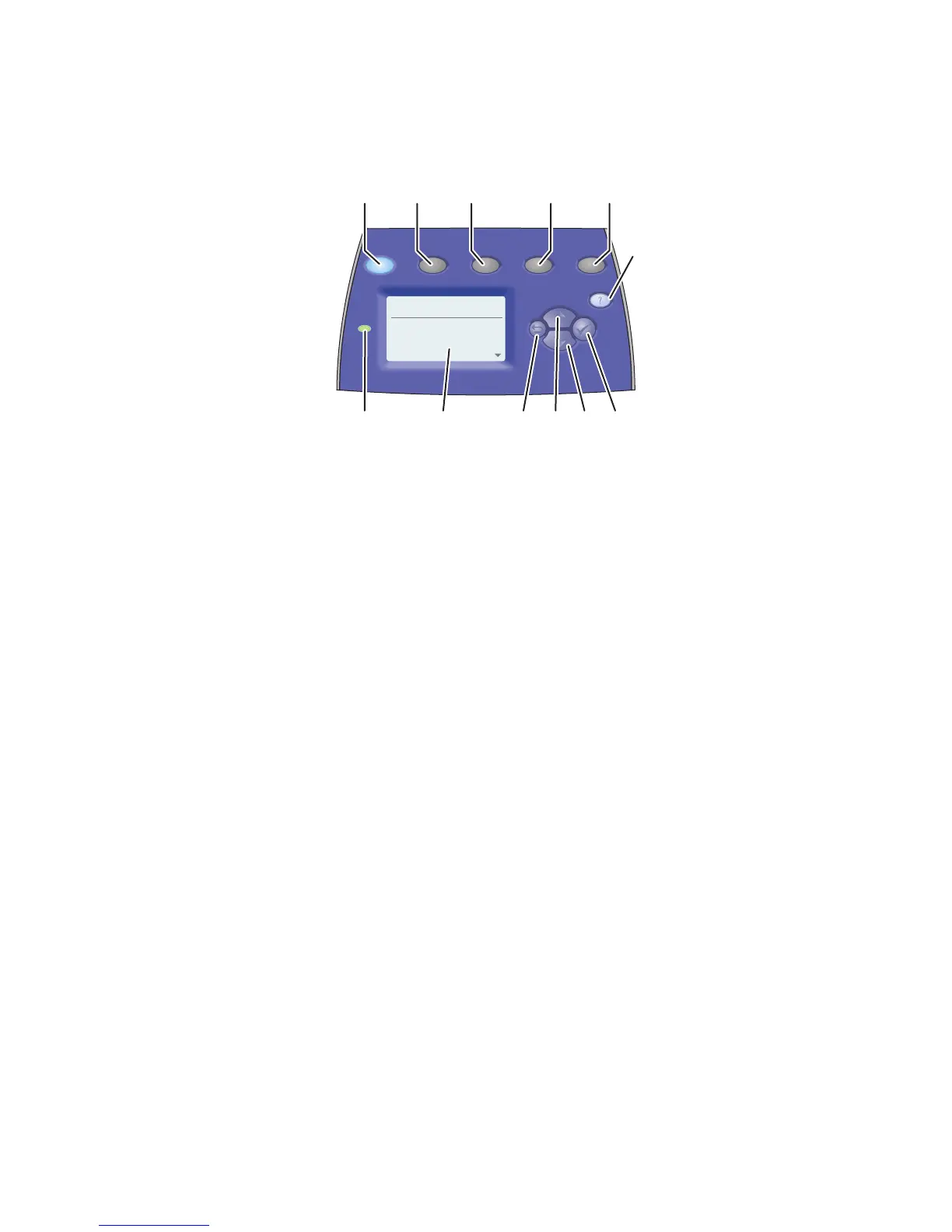

Middle of the Control Panel
1. Copy button
Press to view the
Copy menu on the display
screen.
2. Scan button
Press to view the
Scan menu on the display
screen.
3. Print button
Press to view the
Print menu on the display
screen.
4. Fax button
Press to view the Fax menu on the display
screen.
5. System button
Press to view the
System Setup menu on
the display screen.
6. Help (?) button
Press to read a help message explaining the
menu or message that appears on the display
screen.
7. OK (
✓) button
Press to accept the setting selected.
8. Down Arrow button
Press to scroll down through menu options.
9. Up Arrow button
Press to scroll up through menu options.
10. Back button
Press to return to the previous menu.
11. Graphic display screen indicates status
messages and menus.
12. Status indicator LED:
Green: System is ready to print, copy, scan, or
fax.
Yellow: Warning condition, system continues
to print, copy, scan or fax.
Red: Startup sequence or error condition
exists for the current function.
Blinking: System is busy or warming up.
8560-006
Copy Scan Print Fax System
2: Letter 8.5X11
100%
0
Tray/Auto
Paper Supply...
Reduce/Enlarge...
Lighten/Darken...
Original Size...
Ready to Copy
1
1
2
3
11
12
6
4
5
10
9
8
7
