Paper and Media
150 Xerox
®
VersaLink
®
B7025/B7030/B7035 Multifunction Printer
User Guide
Configuring Tray 6
Tray 6 is a dedicated high-capacity feeder. You can configure Tray 6 to support the paper size that you
will use. For details on supported paper sizes, refer to Supported Standard Paper Sizes on page 146.
To configure Tray 6:
Note: Before you make any tray adjustments, compare the paper size to the current Tray 6
configuration. If the paper size matches the tray configuration, no tray adjustment is needed.

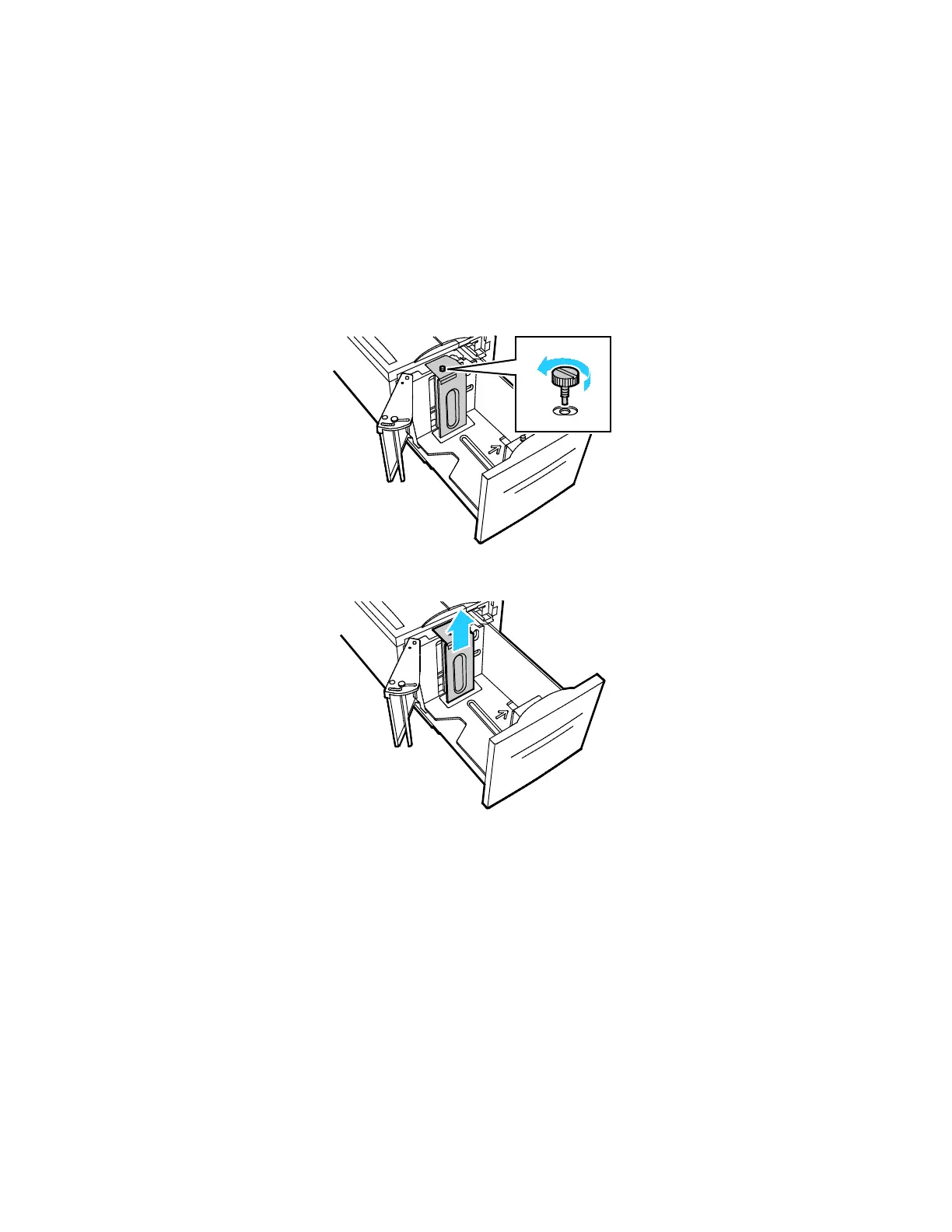

1. Remove the screw that holds the spacer plate at the back of the tray.
2. T
o remove the spacer plate, grasp the spacer plate and lift upward.
3. P
lace the tabs at the bottom of the spacer plate into the slots in the bottom of Tray 6 tha
t
c
orrespond with the paper size.
