Parts of the Printer
This section includes:
• Front View ...........................................................................................................................................................................22
• D
uplex Automatic Document Feeder........................................................................................................................23
• C
ontrol Panel ......................................................................................................................................................................24
• In
ternal Parts ......................................................................................................................................................................25
• R
ear View .............................................................................................................................................................................26
• Configurations ...................................................................................................................................................................27

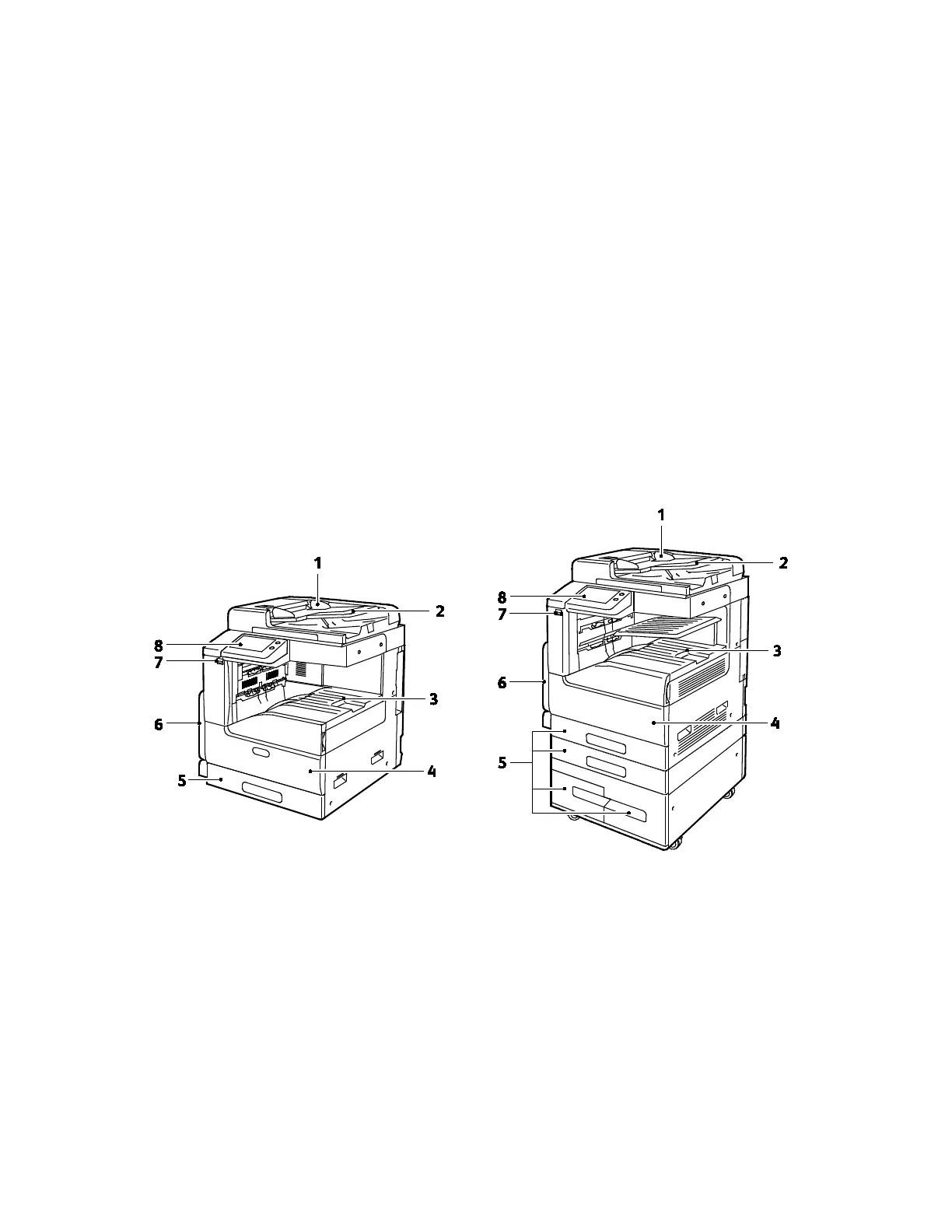

Front View
1. Paper Guides
2. Duplex Automatic Document Feeder Input Tray
3. Paper Output, shown with and without the
optional Center Top Tray
4. Front Door
5. P
aper Trays. Configurations vary from 1 to
4
t
rays. Tandem Tray shown on bottom right
6. Bypass Tray
7. USB Port
8. Control Panel
