Xilinx VC709 User Manual

VC709 Evaluation Board www.xilinx.com 65
UG887 (v1.0) February 4, 2013
Appendix A
Default Switch and Jumper Settings
GPIO DIP Switch SW2
See Figure 1-2, page 8 Item 24 for the location of SW2. Default settings are shown in
Figure A-1 and details are listed in Table A-1.
X-Ref Target - Figure A-1

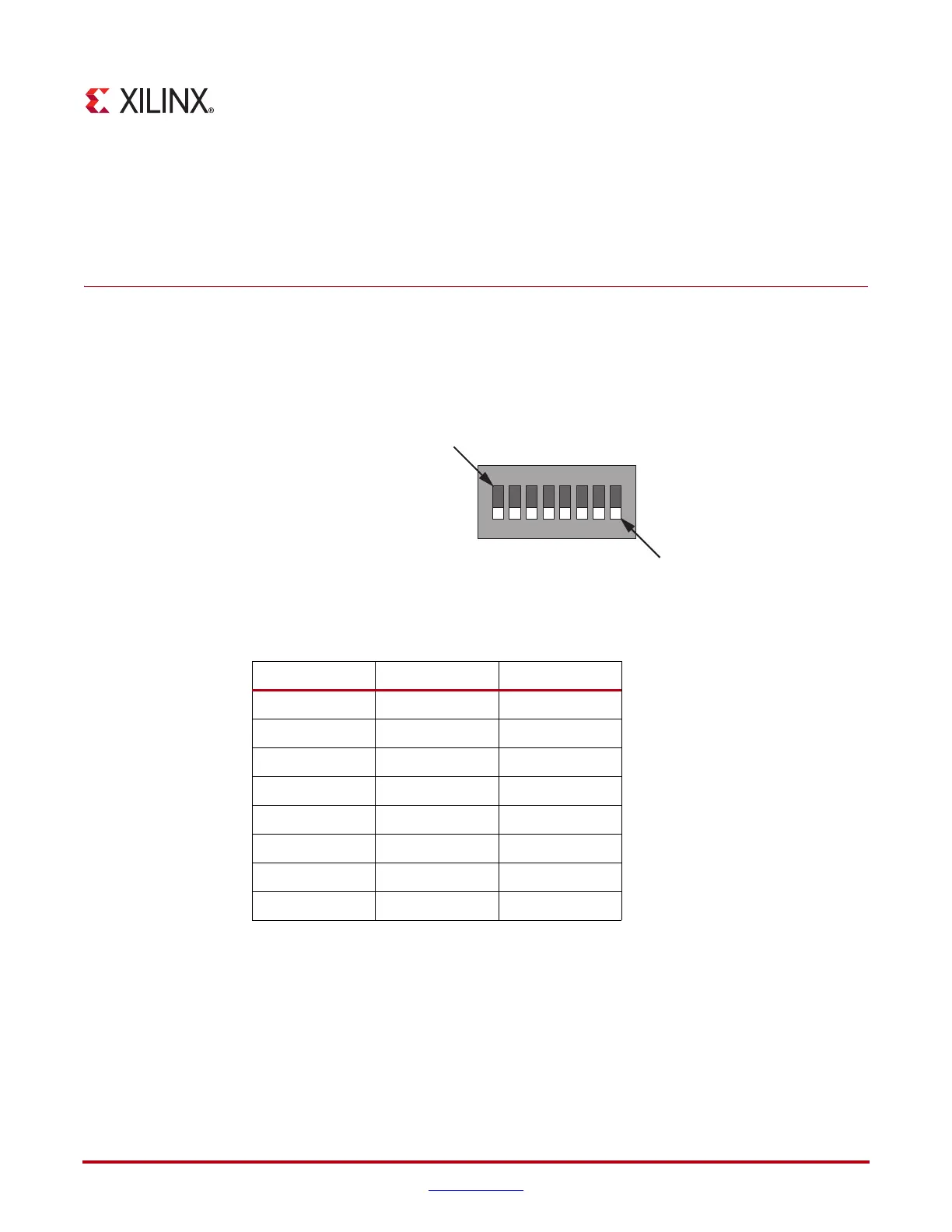

Figure A-1: SW2 Default Settings
Tab le A- 1 : SW2 Default Switch Settings
Position Function Default
1 GPIO_DIP_SW0 Off
2 GPIO_DIP_SW1 Off
3 GPIO_DIP_SW2 Off
4 GPIO_DIP_SW3 Off
5 GPIO_DIP_SW4 Off
6 GPIO_DIP_SW5 Off
7 GPIO_DIP_SW6 Off
8 GPIO_DIP_SW7 Off
UG887_aA_01_083012
1
SW2
OFF Position = 0
ON Position = 1
2 3 4
5 678
