Memory Clock (SYSCLK_233_P and SYSCLK_233_N)
[Figure 1-2, callout 27]
The VC709 board has a LVDS 233.3333 MHz oscillator (U13) soldered onto the back side of
the board and wired to an FPGA MRCC clock input on bank 32. This 233.3333 MHz signal
pair is named SYSCLK_233_P and SYSCLK_233_N. The P and N signals are connected to
FPGA U1 pins AY18 and AY17 respectively.
• Oscillator: Si Time SIT9122AC-2D3-25E233.333333 (233.3333 MHz)
• PPM frequency jitter: 50 ppm
• Differential output
The LVDS termination resistor R43 is located within the FPGA via matrix on the bottom of
the board, and is not populated.

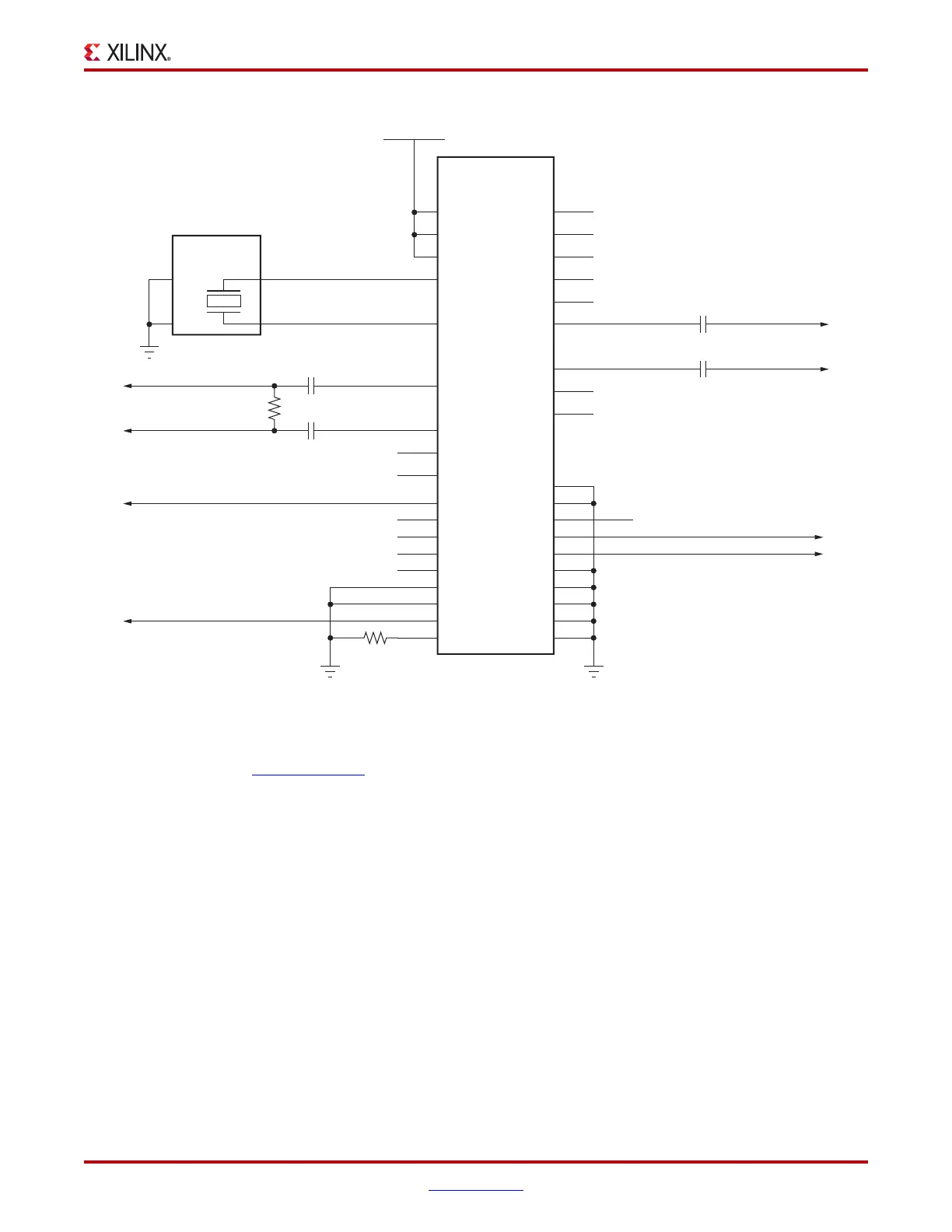

X-Ref Target - Figure 1-11
