Feature Descriptions
Switches
[Figure 1-2, callout 21, 19]
The VC709 board includes a power and a configuration switch:
• Power on/off slide switch SW12 (callout 21)
• FPGA_PROG_B SW9, active-Low (callout 19)
Power On/Off Slide Switch SW12
[Figure 1-2, callout 21]
The VC709 board power switch is SW12. Sliding the switch actuator from the Off to On
position applies 12V power from J18, a 6-pin mini-fit connector. Green LED DS16
illuminates when the VC709 board 12V power is on. See Power Management, page 54 for
details on the onboard power system.
Caution!
Do NOT plug a PC ATX power supply 6-pin connector into J18 on the VC709 board.
The ATX 6-pin connector has a different pinout than J18. Connecting an ATX 6-pin connector into
J18 damages the VC709 board and voids the board warranty.
The VC709 evaluation kit provides the adapter cable shown in Figure 1-20 for powering
the VC709 board from the ATX power supply 4-pin peripheral connector. The Xilinx part
number for this cable is 2600304, and is equivalent to Sourcegate Technologies part number
AZCBL-WH-1109-RA4.
AV30 GPIO_DIP_SW0 SW2.16
AY33 GPIO_DIP_SW1 SW2.15
BA31 GPIO_DIP_SW2 SW2.14
BA32 GPIO_DIP_SW3 SW2.13
AW30 GPIO_DIP_SW4 SW2.12
AY30 GPIO_DIP_SW5 SW2.11
BA30 GPIO_DIP_SW6 SW2.10
BB31 GPIO_DIP_SW7 SW2.9
Reset Pushbutton Switch
AV40 CPU_RESET SW8.3
Table 1-19: GPIO Connections to FPGA U1 (Cont’d)
FPGA (U1) Pin Schematic Net Name GPIO Pin
X-Ref Target - Figure 1-20

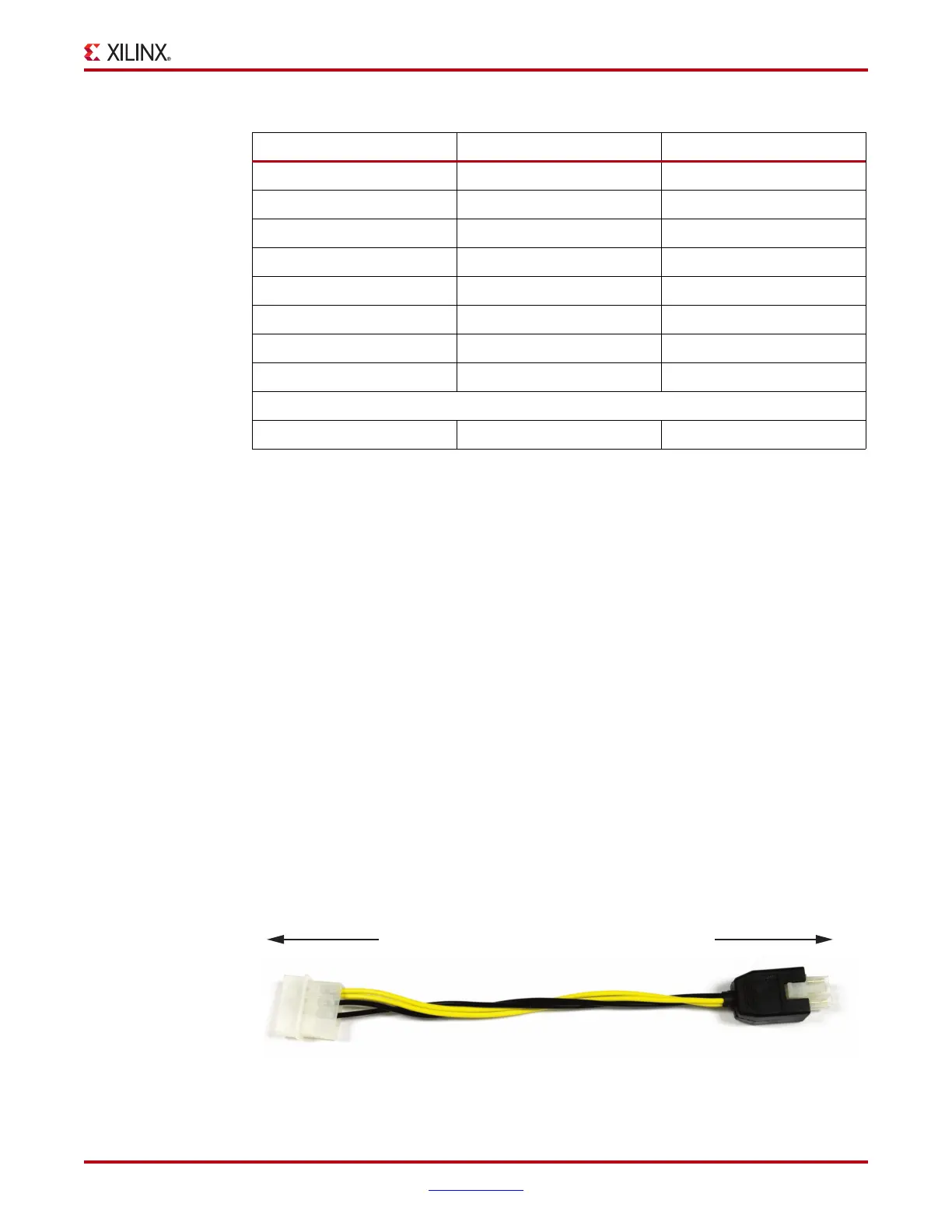

Figure 1-20: ATX Power Supply Adapter Cable
UG887_c1_20_083112
To ATX 4-Pin Peripheral
Power Connector
To J18 on VC709 Board
