Xilinx VCK190 Series User Manual

Appendix A
VITA 57.4 FMCP Connector Pinouts
Overview
The following gure shows the pinout of the FPGA plus mezzanine card (FMCP) high pin count
(HSPC) connector dened by the VITA 57.4 FMC specicaon. For a descripon of how the
VCK190 evaluaon board implements the FMCP specicaon, see FPGA Mezzanine Card
Interface.

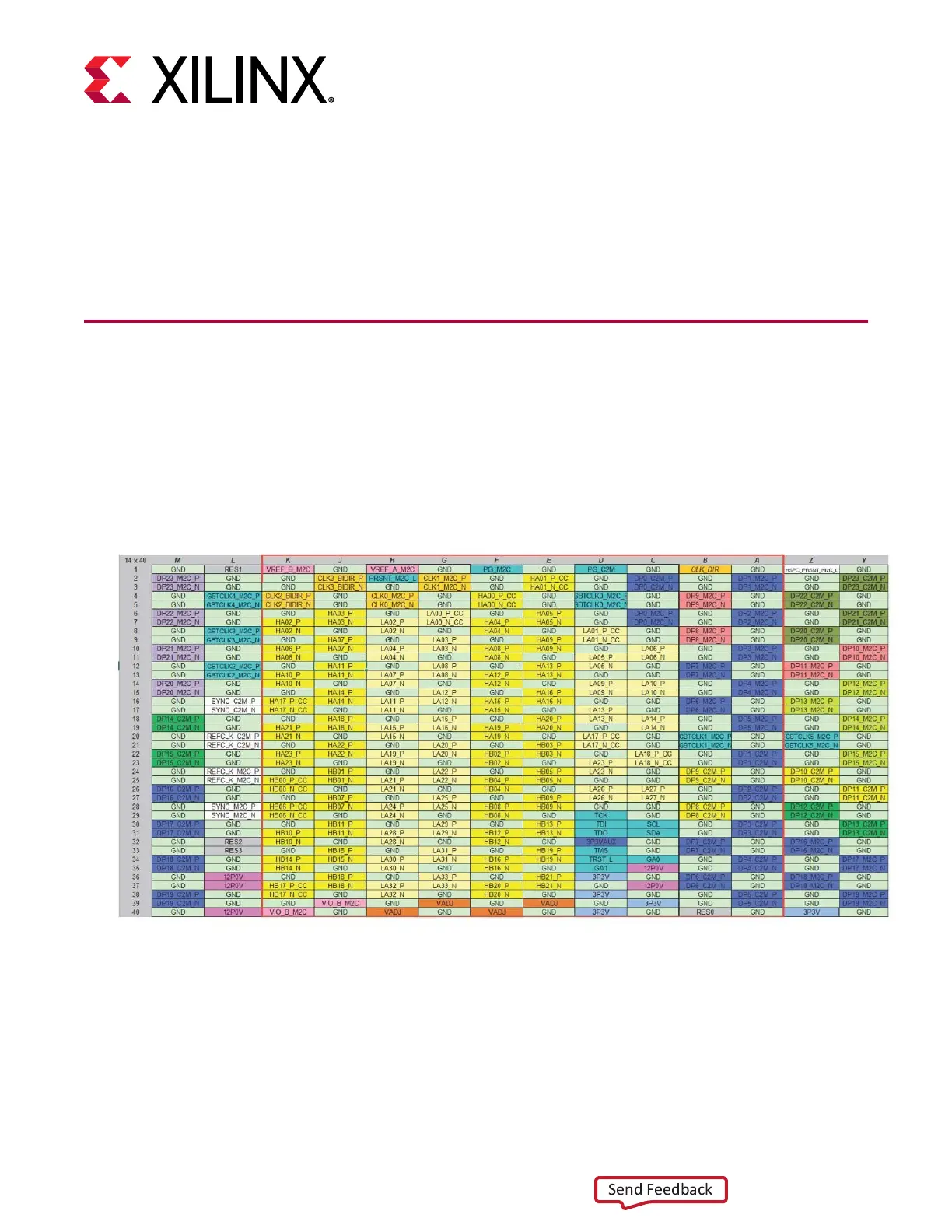

Figure 27: FMCP HSPC Connector Pinout
X24957-121420
