Feature Descriptions
Feature Descriptions
Detailed information for each feature shown in Figure 1-2 and listed in Table 1-1 is
provided in this section.
Zynq-7000 XC7Z020 SoC
[Figure 1-2, callout 1]
The ZC702 board is populated with the Zynq-7000 XC7Z020-1CLG484C SoC. The XC7Z020
SoC consists of an SoC-style integrated processing system (PS) and programmable logic
(PL) on a single die.
The high-level block diagram is shown in Figure 1-3.
31 J60 12V power input 2x6 connector MOLEX 39-30-1060 47
Notes:
1. The ZC702 board schematics are available for download. See ZC702 Evaluation Kit.
2. Jumper locations are shown in Figure A-1.
Table 1-1: ZC702 Board Component Descriptions (Cont’d)
Callout
Reference
Designator
Component Description Notes
Schematic
(1)
0381449 Page
Number
X-Ref Target - Figure 1-3

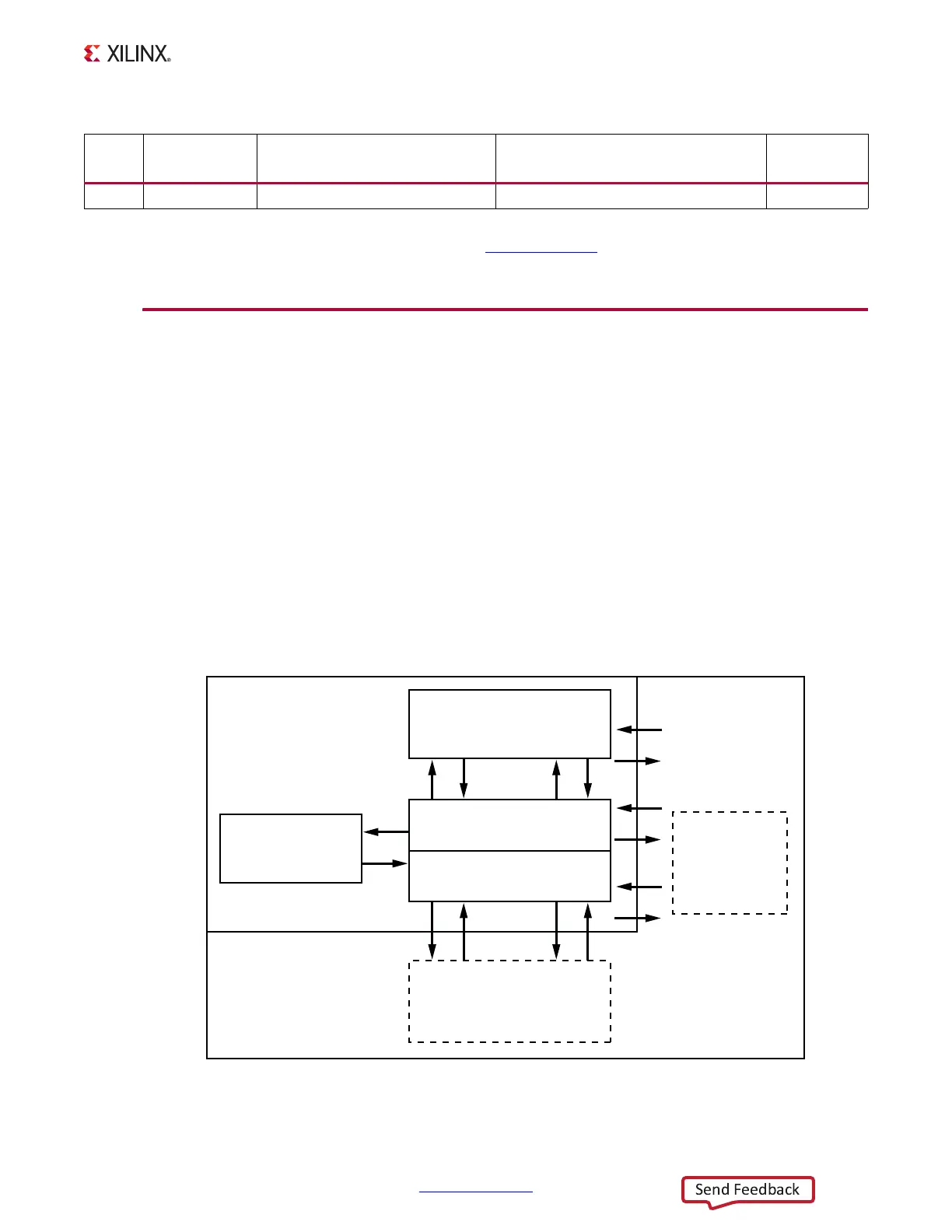

Figure 1-3: High-Level Block Diagram
Application
Processor Unit (APU)
Common
Peripherals
Custom
Peripherals
Common Accelerators
Custom Accelerators
Memory
Interfaces
Processing
System
(PS)
Programmable
Logic
(PL)
Input Output
Peripherals
(IOP)
High-Bandwidth
AMBA
®
AXI Interfaces
UG850_c1_03_081612
Interconnect
Send Feedback
