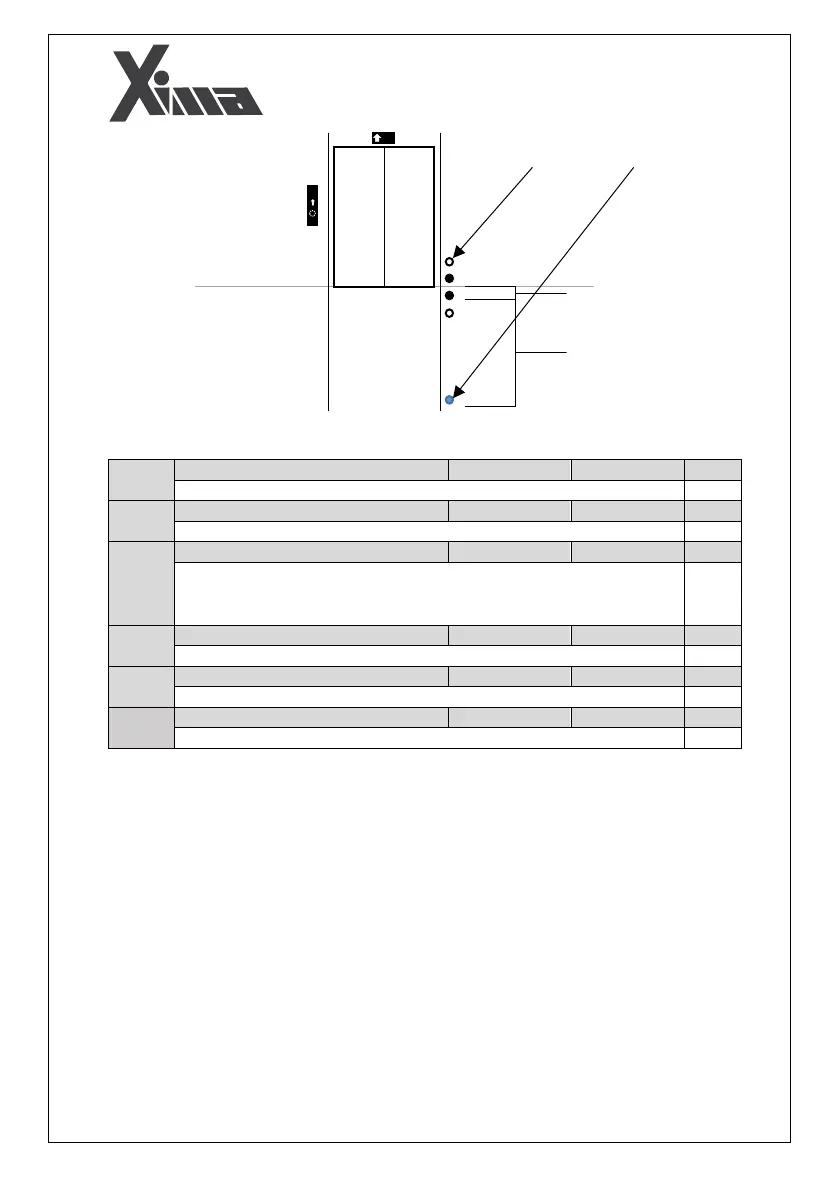

Fig. 17: Parameters X0 and X3

X3
0-300 cm
155
R/W
Distance between the low-speed magnet and the floor level

X0
0.0-50.0 cm
5.2
R/W
Half of the distance between leveling magnets

Stop Method
0-1
0
R/W
Xima uses two methods for stopping
0 – Distance approach using parameters  and 
1 – Deceleration approach using parameters  to 

Deceleration
0.00-1.50 m/s
2
0.70
R/W
Deceleration, in m/s
2

Jerk 3
0.00-5.0 m/s
3
0.80
R/W
Jerk at the beginning of speed decrease in m/s
3

Jerk 4
0.00-5.0 m/s
3
0.80
R/W
Jerk at the end of speed decrease in m/s
3
X0
X3
Leveling magnet
Low speed magnet
Floor Level
Leveling
Low Speed


