Xima L100 - Rated Parameters

33

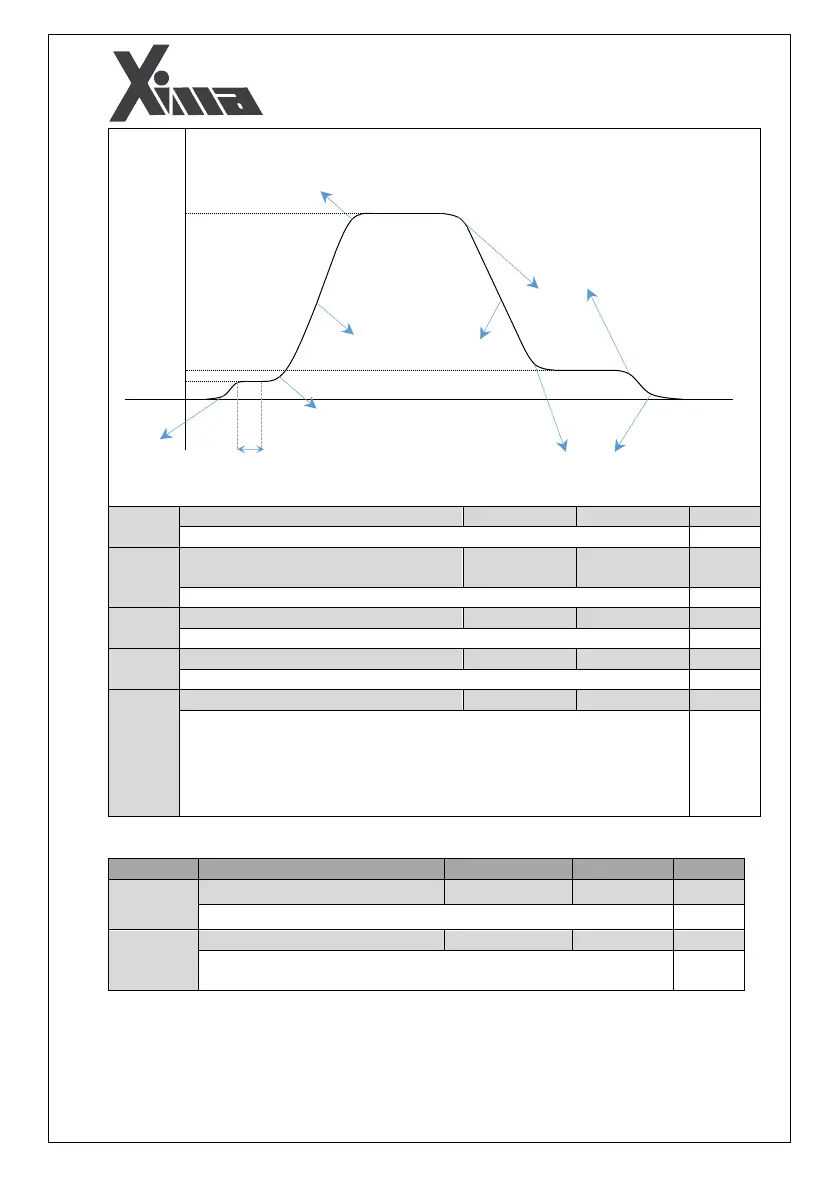

Fig. 19: Speed vs. time diagram of the elevator

Initial Acceleration
0.1-3.0 m/s
2
0.1
R/W
Initial Acceleration in m/s
2

Initial Speed
0.000-0.300
m/s
0.01
R/W
Initial Speed

Initial Time
0.0-2.0 s
0.5
R/W
Initial Time

Mechanical Brake Enable
0.000-0.100 m/s
0.000
R/W
The speed in which the mechanical brake is enabled (in m/s).

Rescue Speed/Rescue Frequency
0.00-1.00 m/s
0.10 m/s
R/W
If the parameter  is equal to 1 or 2, it determines the maximum speed
in the rescue mode. This speed is limited by the power of the UPS. If the
power output extracted from the UPS reaches the value specified in the
parameter , the speed will not increase.
If Pd03 = 3, this parameter determines the motor speed in the rescue mode.
o Rated parameters
Parameter
Name
Setting range
Default value
Type

Motor Rated Current
2-18 A
15
R/W
Motor Rated Current

Motor Rated Voltage
100-500 V
380
R/W
Motor Rated Voltage











