Xima L100 - Page 33

32

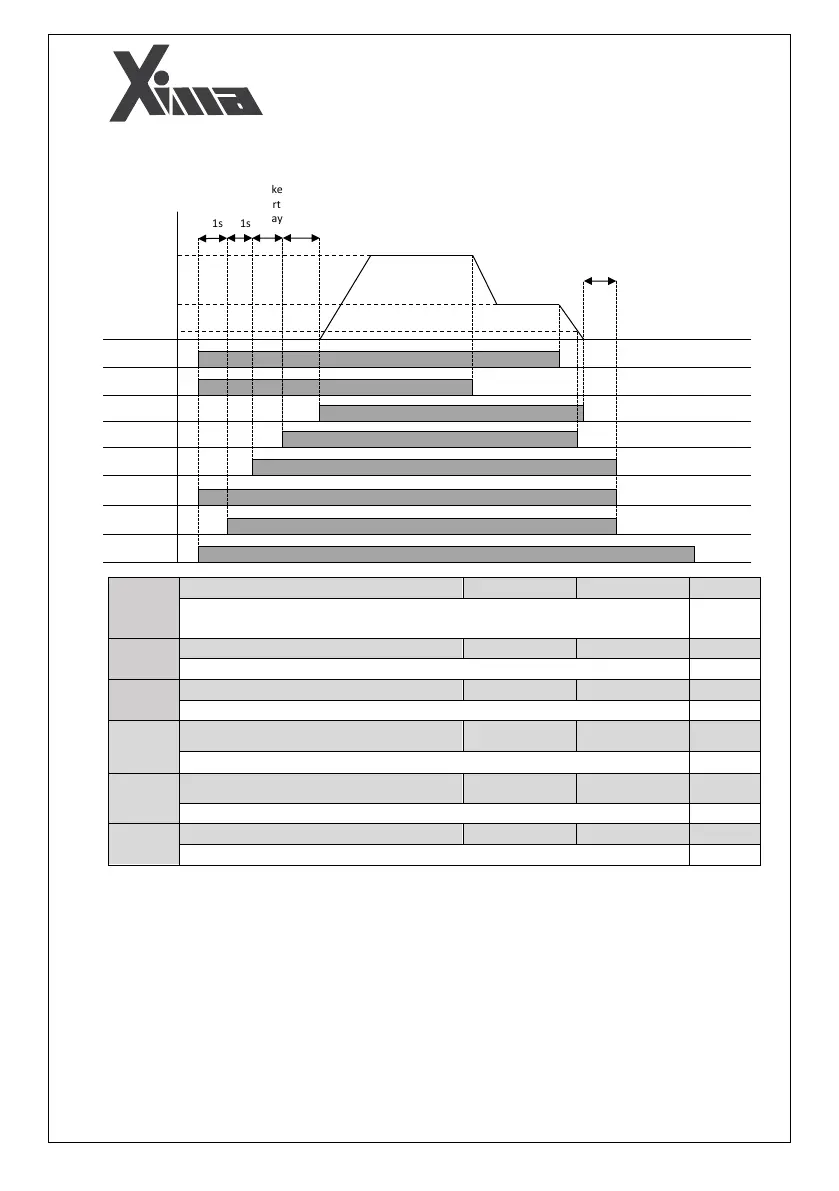

Fig. 18: Brake Sequence in Xima inverter

Brake on Delay
0.0-3.0 s
0.7
R/W
Delay time in the beginning of the movement, from the time of brake on to
the time of start command in seconds.

Brake off Delay
0.0-3.0 s
0.8
R/W
The time in which PWM is still going on, after braking.

Brake Start Delay
0.0-3.0 s
0.2
R/W
Delay time from PWM starting to the brake on in seconds.

Inspection Acceleration
0.00-1.00 m/s
2
0.40
R/W
Acceleration in the inspection mode, in m/s
2

Inspection Deceleration
0.00-1.50 m/s
2
0.70
R/W
Deceleration in the inspection mode, in m/s
2

Inspection Jerk
0.00-5.00 m/s
3
0.40
R/W
Jerk in the inspection mode, in m/s
3
Up
Enable
Contactor
PWM
Brake
Start
V3
V0
Speed
V3
V0
<1s
0.1s
Brake
Start
Delay
Brake
on
Delay
Brake off Delay

