Stop Mode Function
The Xima inverter has two methods for stopping at the floors. In the first method (Distance
Mode), the inverter selects exactly the best speed and deceleration to stop at the floor, by
entering the distance between the low-speed magnet and the floor level, and half the distance
between the two leveling magnets.
Important parameters of this method are according to the table below:

Stop Method
0-1
0
Selection of stop method, which is by default the distance mode. In this
case, only two parameters X3 and X0 must be defined.

X3
0-300 cm
165
The distance between the low-speed magnet and the floor level

X0
0.0-50.0 cm
8.0
Landing distance (half the distance between the two leveling magnets)

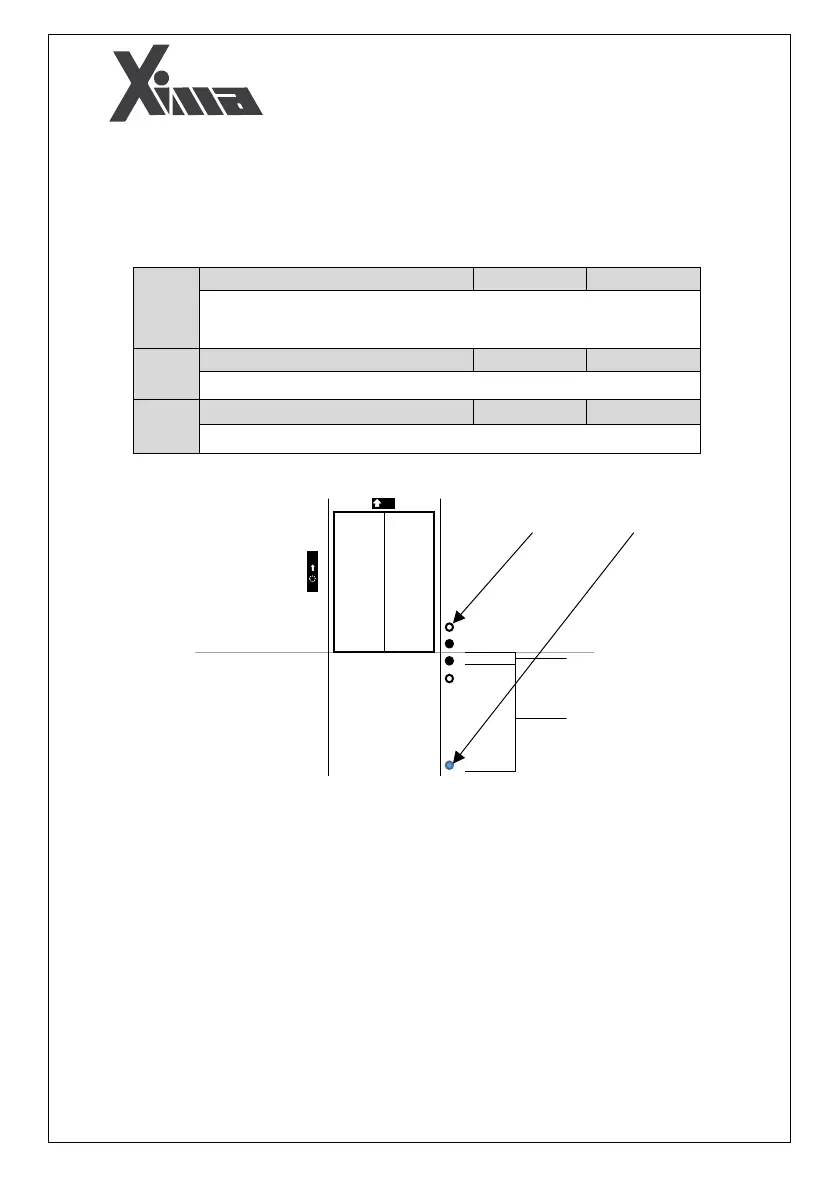

Fig. 21: X0 and X3 distances in the elevator well
X0
X3
Leveling Magnets
Low speed
Magnets
Floor Level
Leveling
Slow Down


