(5) Avoid oil and water
Install a protective cover over the
servomotor if it is used in a location that is
subject to water or oil mist. Also use a
servomotor with an oil seal when needed to
seal the through-shaft section.
(6) Cable stress
Make sure that the power lines are free from bends and tension. Be especially careful to
wire signal line cables so that they are not subject to stress because the core wires are very
thin, measuring only 0.2 to 0.3mm
2
.
2. Servo drive
The DS2 series servo drivers are base-mounted servo drivers. Incorrect installation will
cause problems. Follow the installation instructions below:
(1) Storage temperature
Store the servo driver within -20~+85℃ , as long as it is stored with the power cable
disconnected.
(2) Installation location
The following precautions apply to the installation site.
Installation in a
Control Panel
Design the control panel size, unit layout, and cooling method so the
temperature around the servo drivers does not exceed 50°C.
Installation Near a
Heating Unit
Minimize heat radiated from the heating unit as well as any
temperature rise caused by natural convection so the temperature
around the servo drivers does not exceed 50°C.
Installation Near a
Source of Vibration
Install a vibration isolator beneath the servo driver to avoid subjecting
it to vibration.

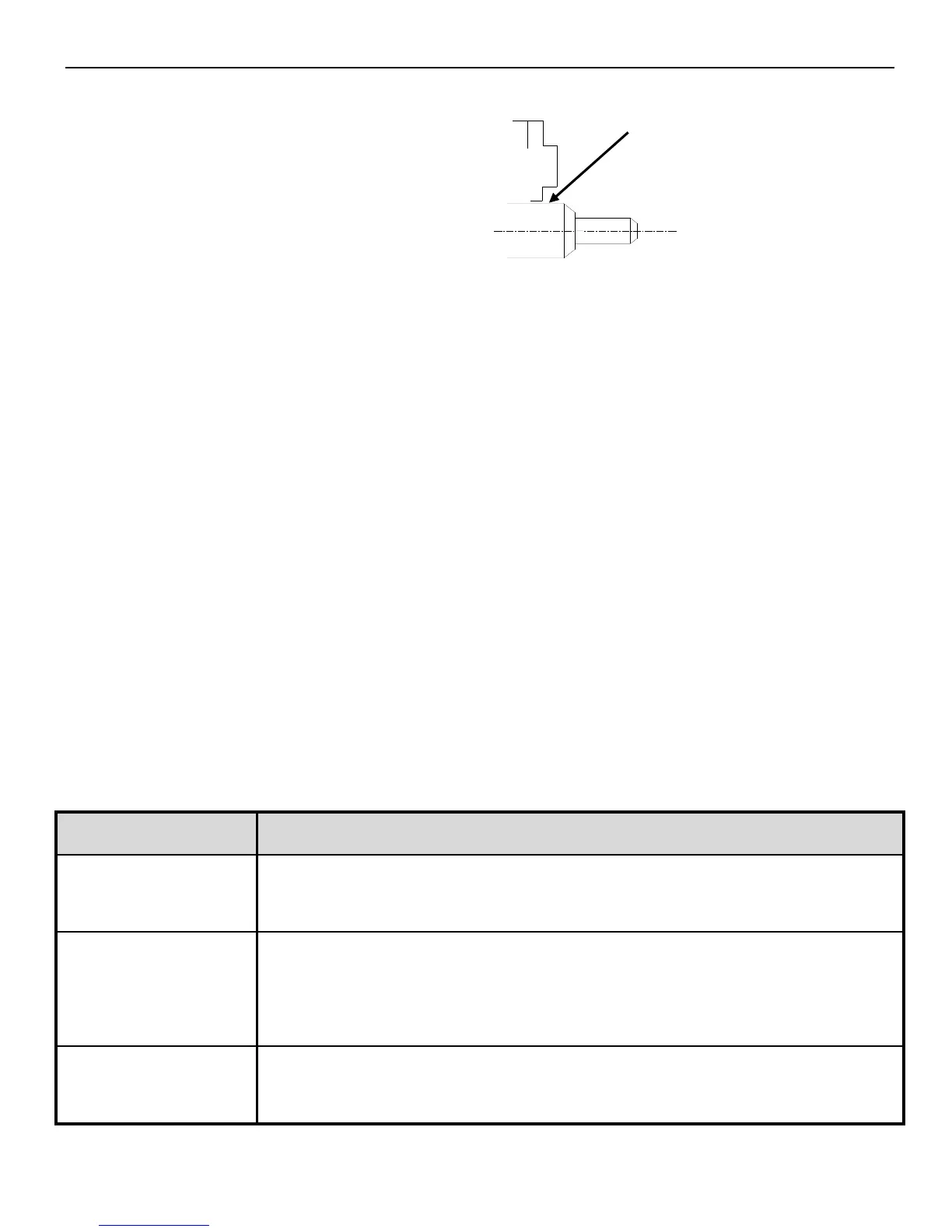

Through part of the shaft
