Xinje DS2 series Manual

24
►► Wiring

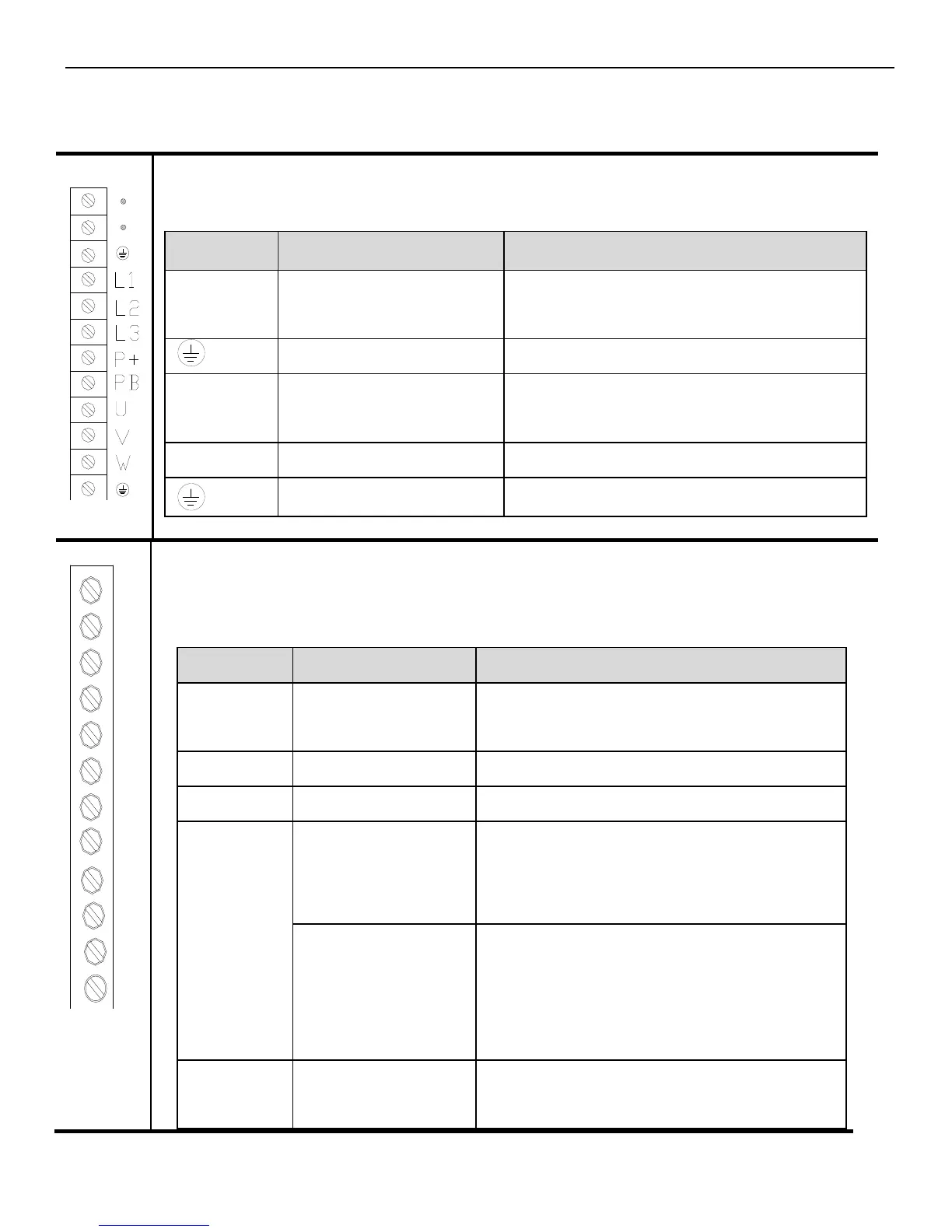

1. Main circuit
 DS2-20P2-AS/AS6, DS2-20P4-AS/AS6, DS2-20P7-AS/AS6
 The terminal function of main circuit:
Terminal
Function
Explanation
L1/L2/L3
Power input of main
circuit
AC single-phase or 3-phase
200~240V, 50/60Hz
Ground terminal
Connect to ground terminal of motor
P+, PB
Regeneration brake
resistor
Connect the regeneration resistor
between P+ and PB
U, V, W
Motor terminal
Connect to motor
Ground terminal
Connect to motor ground terminal
R
S
T
.
U
V
W
P+
D
C
P-
.
 DS2-43P0-AS/AS6
According to the order from top to bottom, the functions of the main circuit
are as followed:
Terminal
Function
Explanation
R/S/T
Power input of
main circuit
3-phase 360～400V, 50/60Hz
●
Empty pin
U, V, W
Motor terminal
Connect to motor
P+, D, C
Use internal
regeneration
resistor
Short connect the terminal P+ and D,
disconnect P+ and C;
Set P0-10=0
Use external
regeneration
resistor
Connect regeneration resistor to
terminal P+ and C, cut down the short
wires between P+ and D; set
P0-10=1
P+/P-
Bus terminal
Can measure the real-time voltage of
bus , be careful it is dangerous
