Xinje DS2 series Manual

25
.
.

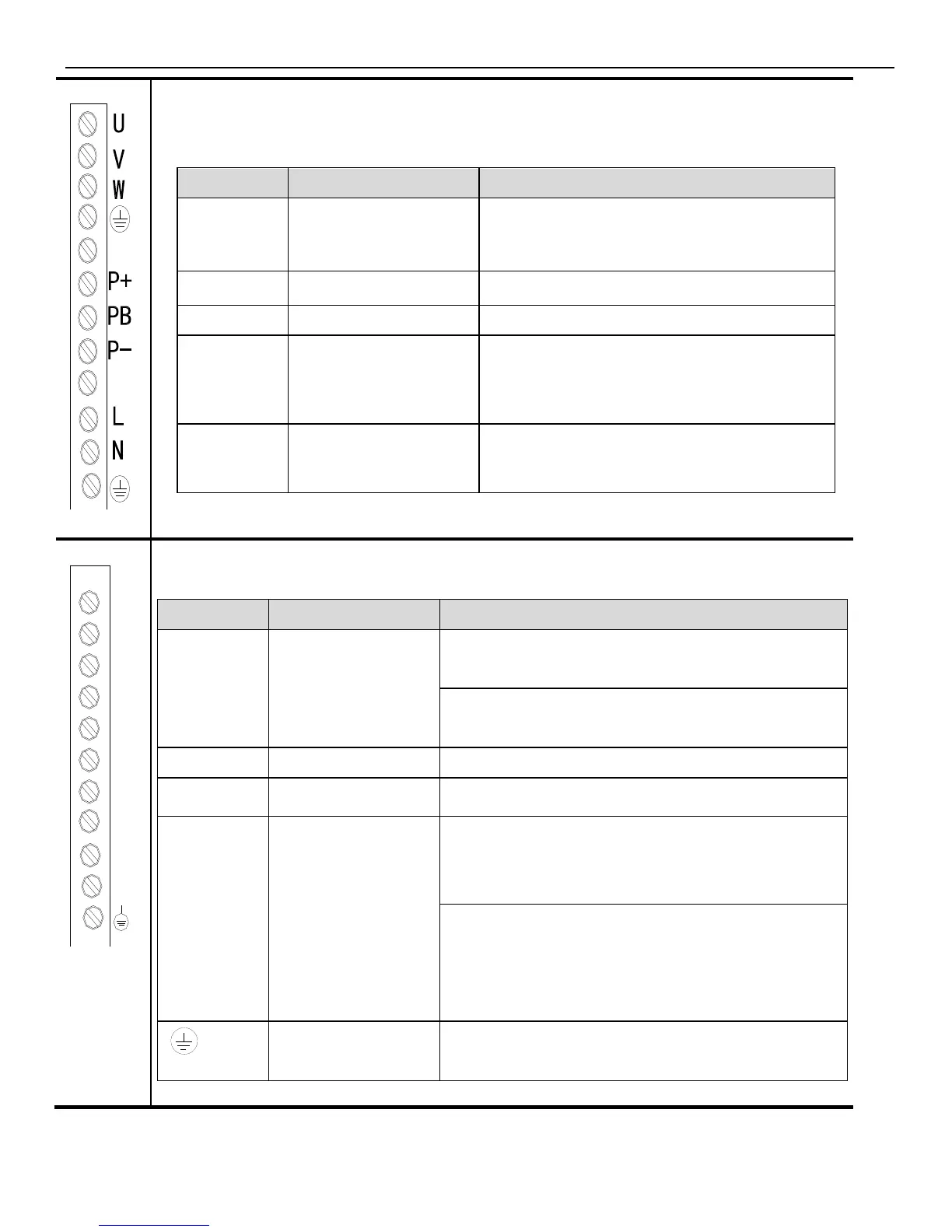

 DS2-20P4-BS/BS6
According to the order from top to bottom，the functions of the main circuit
are as followed:
Terminal
Function
Explanation
L/N
Power input of
main circuit
AC single-phase 200 ～240V,
50/60Hz
●
Empty pin
U, V, W
Motor terminal
Connect to motor;
P+, PB
Regenerative
braking resistor
terminal
Connect the external regeneration
resistor between P and PB;
P+/P-
Bus terminal
Can measure the real-time voltage of
bus, be careful it is dangerous
R
S
T
.
U
V
W
P+
D
C
 DS2-21P5-AS/AS6, DS2-22P3-AS/AS6,
DS2-41P5-AS/AS6, DS2-21P5-AS2
Terminal
Function
Explanation
R/S/T
Power input of
main circuit
3-phase 200～240V, 50/60Hz
(DS2-2□P□-AS/AS6 DS2-21P5-AS2)
AC 3-phase 360～400V, 50/60Hz
(DS2-4□P□-AS)
●
Empty Pin
U, V, W
Motor terminal
Connect to motor
P+, D, C
Regenerative
braking resistor
terminal
When using internal regeneration resistor,
short connect the terminal P+ and D; set
P0-10=0
When using external regeneration resistor,
cut down the short wires between P+ and
D, Connect regeneration resistor to
terminal P+ and C; set P0-10=1
Ground terminal
Connect to motor terminal, Connect to
motor ground terminal
