XO FLEX – Instructions for use Operation
34

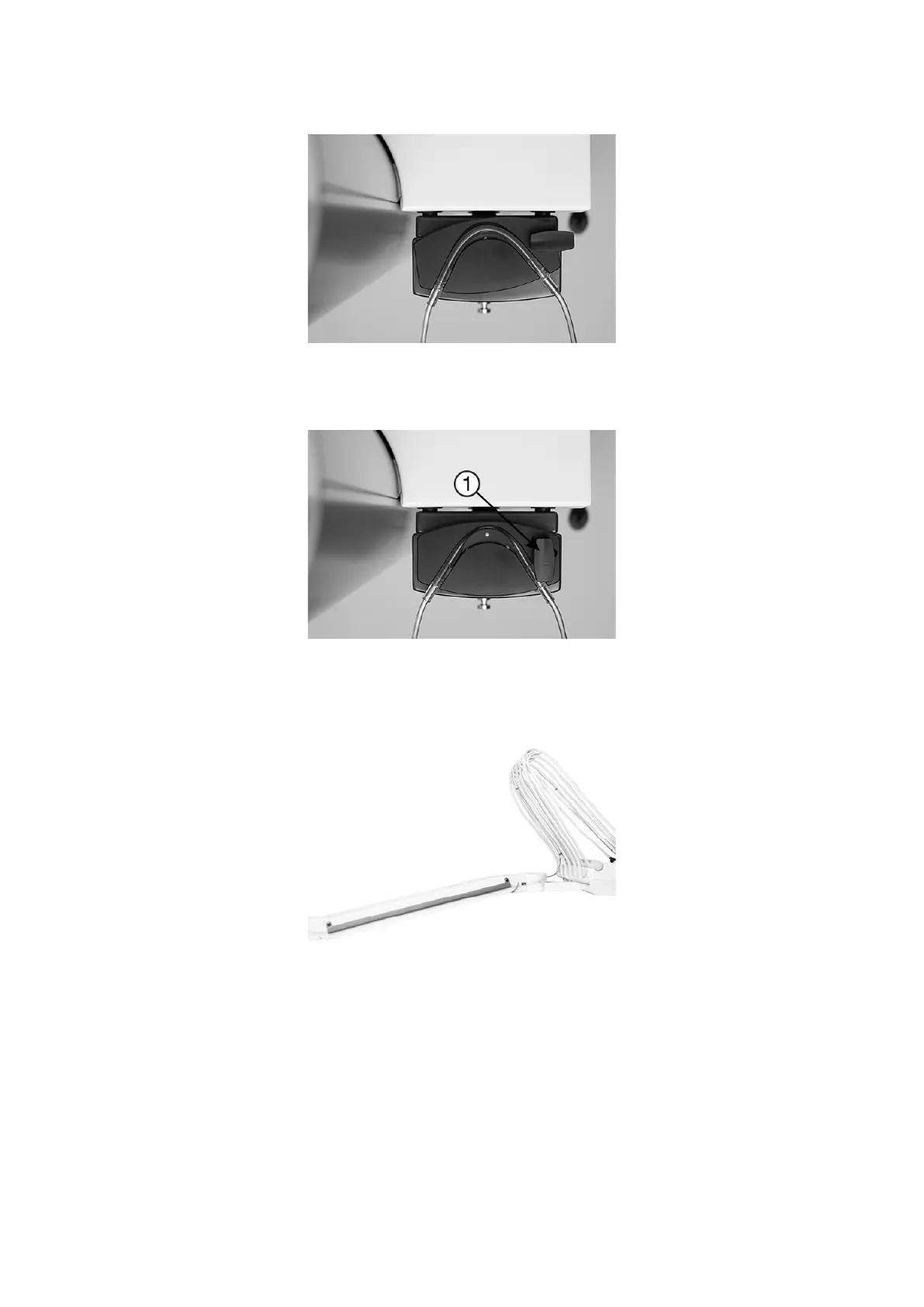

Figure 34 – Attaching the irrigation tubing
Lock the pump head by turning the handle (1) clockwise – see Figure 35.
Figure 35 – Locking the pump head
Place the irrigation tube into the tube guide and attach it to the instrument bridge arm, as shown in
Figure 36.
Figure 36 – Placing the irrigation tube
Attach the irrigation tube to the hose of the instrument to be used using the stainless steel clips –
see Figure 37.
