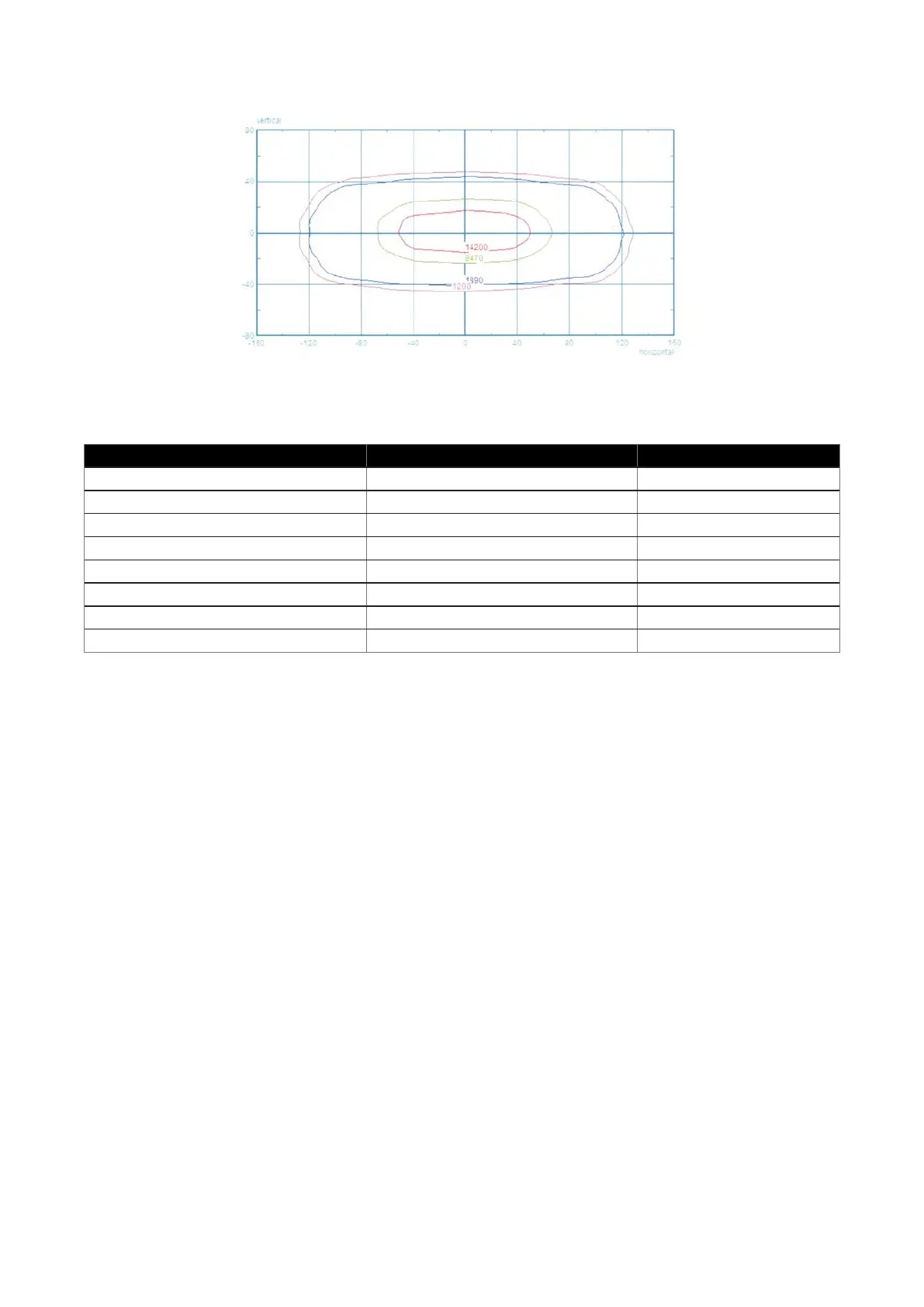

Figure 92 – XO Light – Illuminance pattern contour lines
corresponding to 10%, 50% and 75% of the maximum illuminance
Table 19 – Boxes dimensions and weight
Box
Dimensions (cm) L x W x H
Gross weight (kg)
Unit stand
120 x 72.1 x 140
150 – 170
Arm and instrument bridge
134.4 x 72.4 x 44
35
Operating light
118 x 53 x 40
15
Patient chair
165 x 80 x 56
65
XO SEAT
60 x 60 x 37
10.3
XO STOOL
60 x 60 x 37
14.6
XO HD display incl. arm
93 x 63.8 x 43
19
Steel installation plate
120 x 93 x 18
54 incl. pallet
