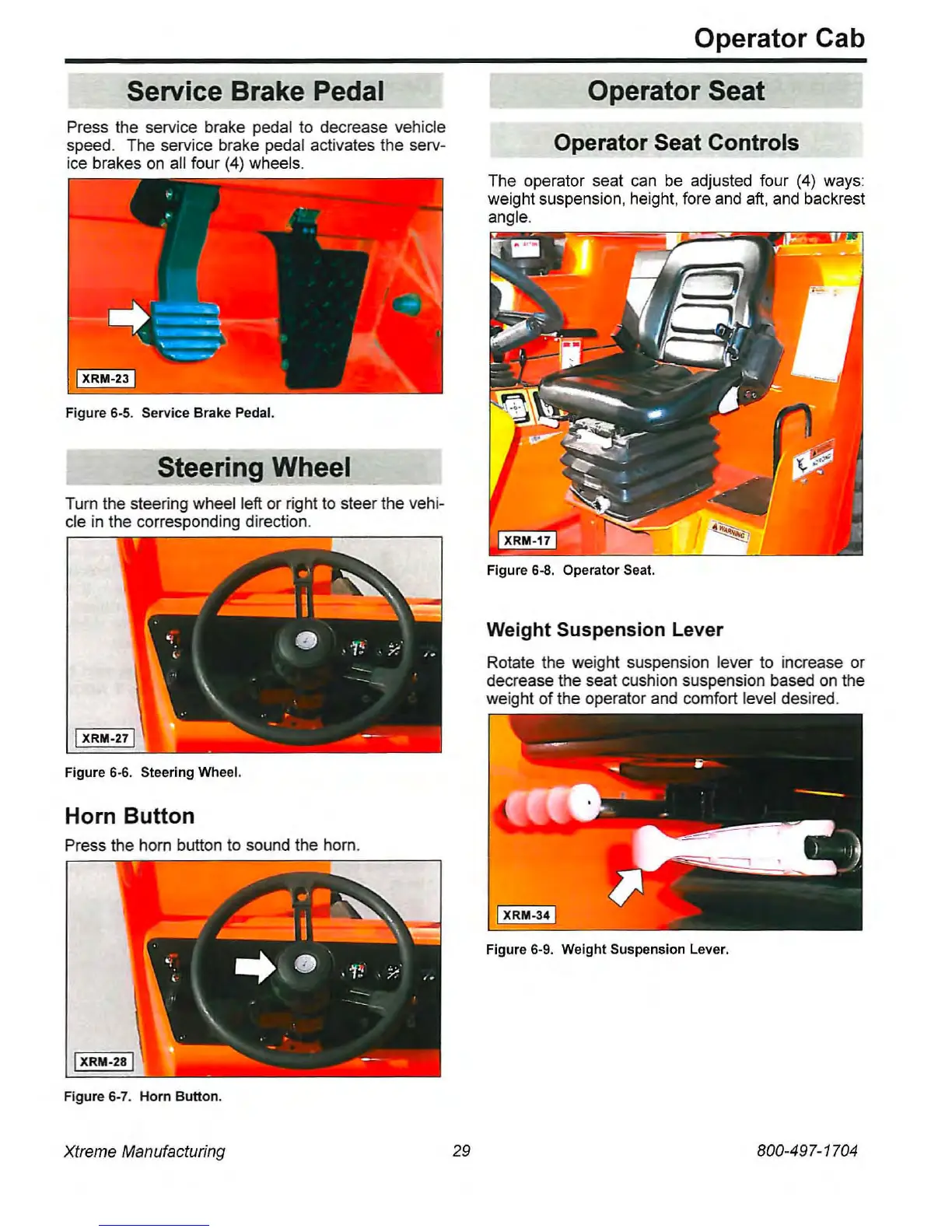

Operator Cab
Service Brake Pedal
Operator Seat
IXRM-27I
The operator seat
can
be
adjusted four
(4)
ways:
weight suspension, height, fore
and
aft,
and
backrest
angle.
I
XRM-34!
Operator Seat Controls
Weight Suspension Lever
Rotate the weight suspension lever
to
increase or
decrease the seat cushion suspension based
on
the
weight of the operator and comfort level desired.
Figure
6-8.
Operator Seat.
Figure
6-9.
Weight Suspension Lever.
_~_Steering
Wheel _
IXRM-2
S
I
Press the service brake pedal
to
decrease vehicle
speed. The service brake pedal activates the serv-
ice brakes
on
all four
(4)
wheels.
Figure
6-5.
Service Brake Pedal.
Turn the steering wheel left or right
to
steer the vehi-
cle
in
the corresponding direction.
Horn Button
Press the horn button
to
sound the horn.
Figure
6-6.
Steering Wheel.
Figure
6-7.
Horn Button.
