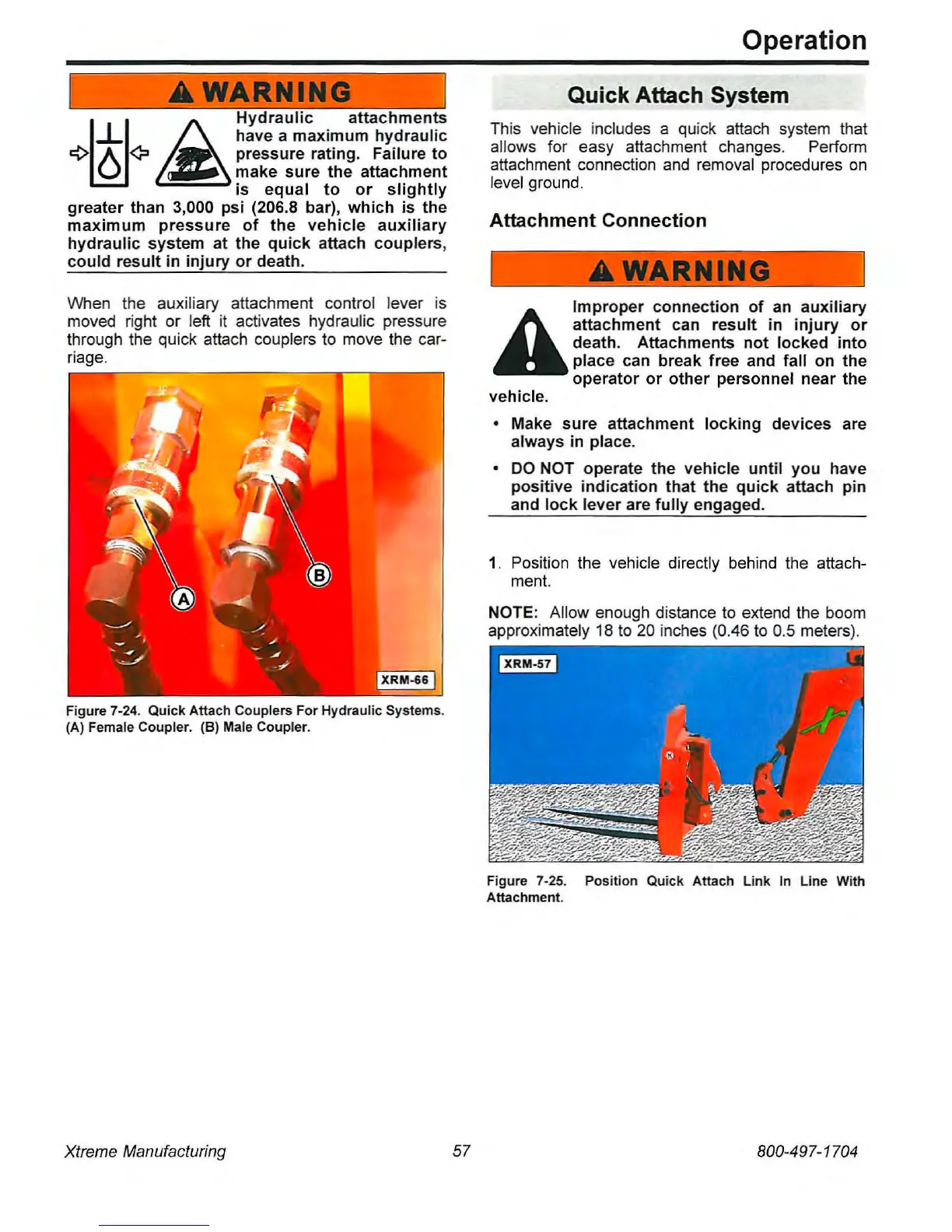

A WARNING
Operation
Quick Attach System
ltJ
Hydraulic
attachments
.l.. £ have a maximum hydraulic
c(>
6
¢'
I~\
pressure rating. Failure
to
~
make
sure
the
attachment
is
equal
to
or
slightly
greater than 3,000 psi (206.8 bar),
which
is
the
maximum
pressure
of
the
vehicle
auxiliary
hydraulic
system
at the
quick
attach couplers,
could result in
injury
or
death.
When the auxiliary attachment control lever is
moved right or left it activates hydraulic pressure
through the quick attach couplers
to
move the car-
riage.
Figure 7-24. Quick Attach Couplers For Hydraulic Systems.
(A) Female Coupler. (B) Male Coupler.
Xtreme Manufacturing
57
This vehicle includes a quick attach system that
allows for easy attachment changes. Perform
attachment connection
and
removal procedures
on
level ground.
Attachment
Connection
Improper
connection
of
an auxiliary
A
attachment
can
result
in
injury
or
death. Attachments
not
locked
into
place can break free and fall on the
operator
or
other
personnel near the
vehicle.
• Make sure attachment
locking
devices are
always in place.
•
DO
NOT operate the vehicle until
you
have
positive indication
that
the
quick
attach pin
and
lock
lever are fUlly engaged.
1.
Position the vehicle directly behind the attach-
ment.
NOTE: Allow enough distance
to
extend the boom
approximately 18 to
20
inches (0.46
to
0.5 meters).
Figure 7-25. Position Quick Attach
Link
In
Line With
Attachment.
800-497-1704
