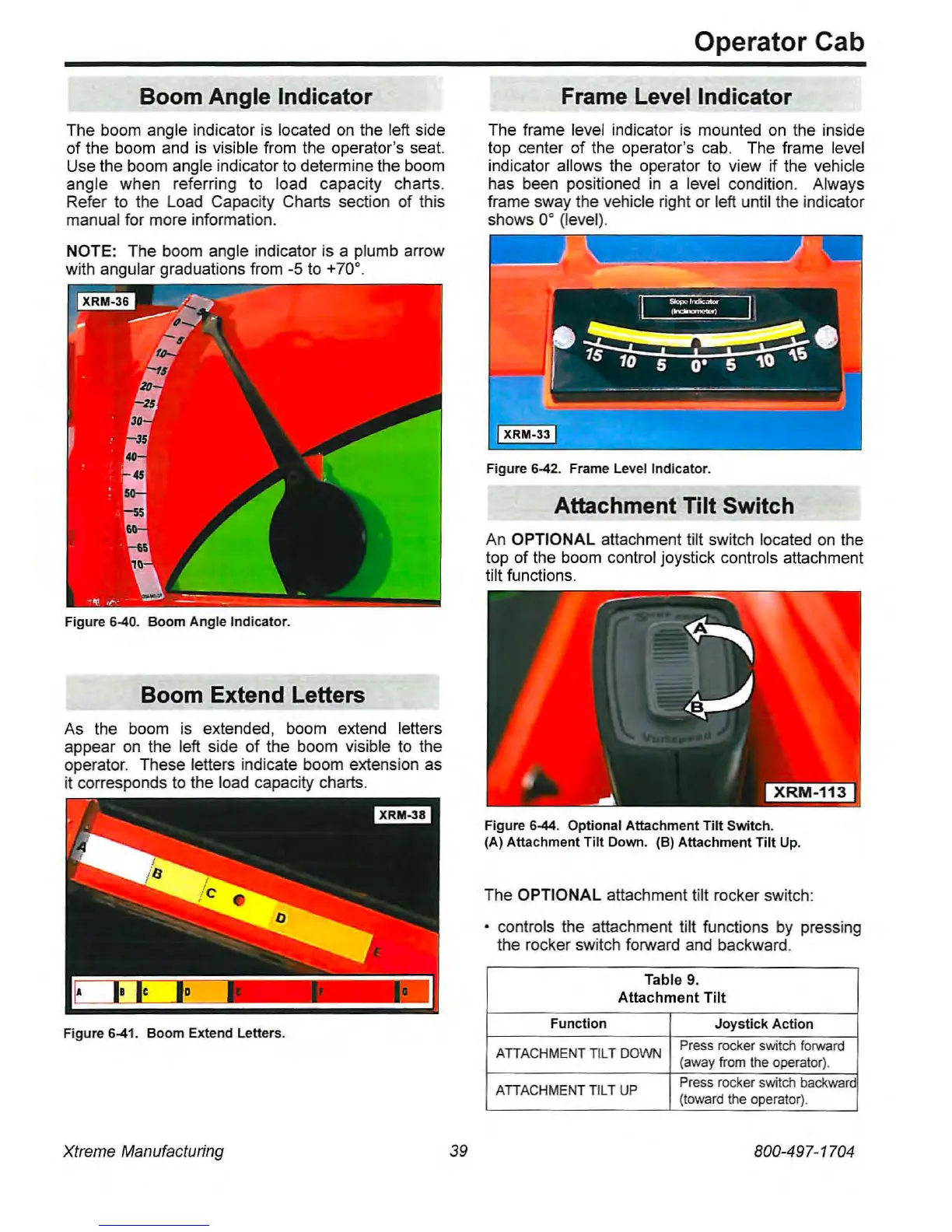

Xtreme XRM1145 User Manual

Operator Cab
Boom Angle Indicator Frame Level Indicator
The boom angle indicator is located on the left side
of the boom and is visible from the operator's seat.
Use the boom angle indicator
to determine the boom
angle when referring to load capacity charts.
Refer
to the Load Capacity Charts section of this
manual for more information.
The frame level indicator is mounted
on the inside
top center of the operator's
cab. The frame level
indicator allows the operator
to view if the vehicle
has been positioned
in a level condition. Always
frame sway the vehicle right or left until the indicator
shows
0" (level).
Attachment Tilt Switch
Figure 6-42. Frame Level Indicator.
Table 9.
Attachment Tilt
Function
Joystick Action
ATIACHMENT
TILT DOWN
Press rocker switch fOlWard
(away from the operator).
ATIACHMENT
TILT UP
Press rocker switch backward
(toward the operator).
An OPTIONAL attachment tilt switch located on the
top of the boom control joystick controls attachment
tilt functions.
Figure 6-44. Optional Attachment Tilt Switch.
(A) Attachment Tilt Down. (B) Attachment
Tilt Up.
The OPTIONAL attachment tilt rocker switch:
• controls the attachment tilt functions by pressing
the rocker switch forward and backward.
Boom Extend Letters
NOTE: The boom angle indicator is a plumb arrow
with angular graduations from -5
to +70".
As the boom is extended, boom extend letters
appear
on the left side of the boom visible to the
operator. These letters indicate boom extension
as
it corresponds to the load capacity charts.
~i!II
Figure 6-40. Boom Angle Indicator.
Figure 6-41. Boom Extend Letters.
Xtreme Manufacturing 39 800-497-1704
