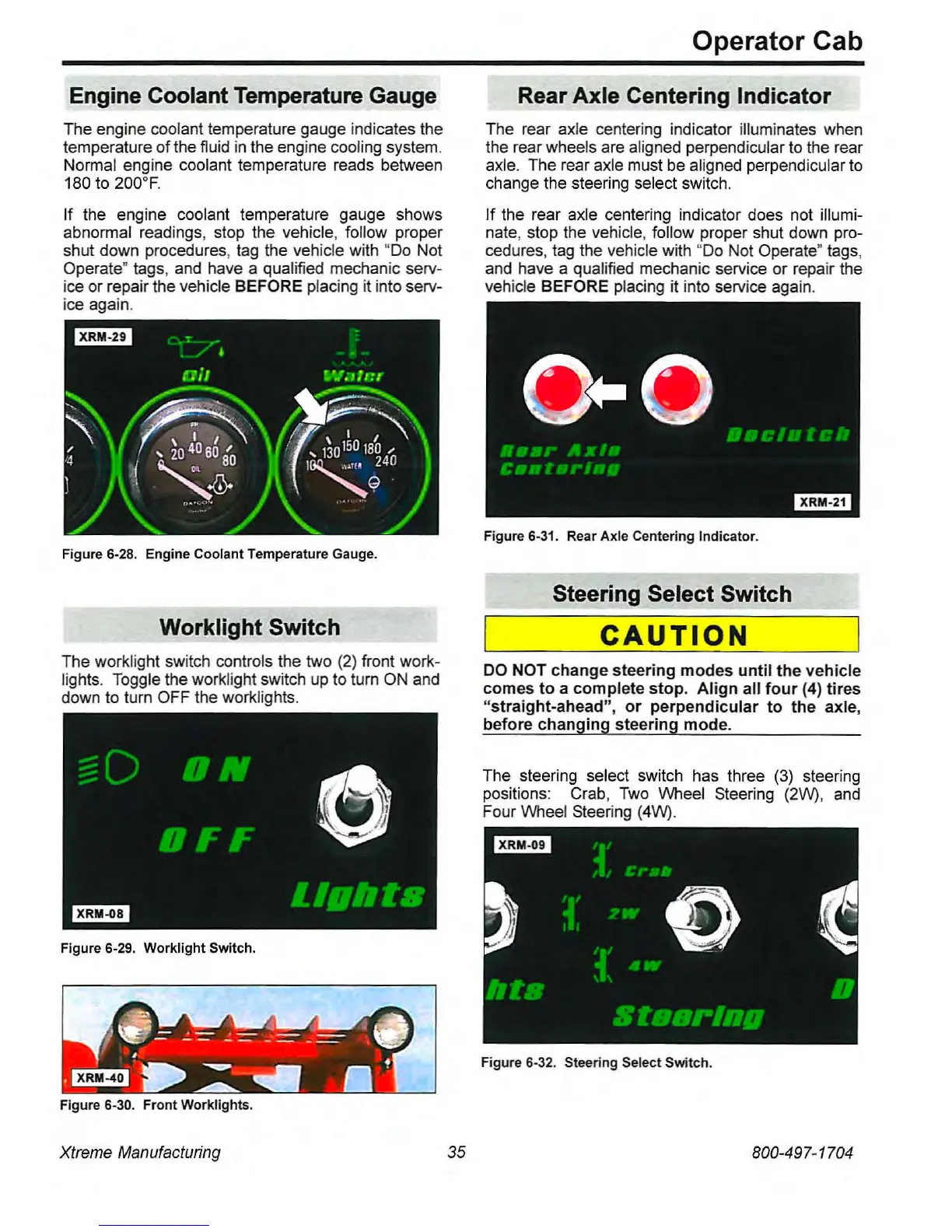

Engine Coolant Temperature Gauge
The engine coolant temperature gauge indicates the
temperature ofthe fluid
in
the engine cooling system.
Normal engine coolant temperature reads between
180
to
200'F.
If the engine coolant temperature gauge shows
abnormal readings, stop the vehicle, follow proper
shut down procedures,
tag
the vehicle with "Do Not
Operate" tags, and have a qualified mechanic serv-
ice or repair the vehicle BEFORE placing it into serv-
ice again.
Figure 6-28. Engine Coolant Temperature Gauge.
Worklight Switch
The worklight switch controls the two
(2)
front work-
lights. Toggle the worklight switch
up
to turn ON and
down to turn OFF the worklights.
Figure 6-29. Worklight Switch.
Figure 6-30. Front Worklights.
Xtreme Manufacturing
35
Operator Cab
Rear Axle Centering Indicator
The rear axle centering indicator illuminates when
the rear wheels are aligned perpendicular
to
the rear
axle. The rear axle must
be
aligned perpendicular
to
change the steering select switch.
If the rear axle centering indicator does not illumi-
nate, stop the vehicle, follow proper shut down pro-
cedures,
tag
the vehicle with "Do Not Operate" tags,
and have a qualified mechanic service or repair the
vehicle BEFORE placing it into service again.
Figure 6-31. Rear Axle Centering Indicator.
Steering Select Switch
CAUTION
DO
NOT change steering modes
until
the
vehicle
comes
to
a complete stop.
Align
all
four
(4) tires
"straight-ahead",
or
perpendicular
to
the axle,
before changing steering mode.
The steering select switch has three
(3)
steering
positions: Crab,
Two
Wheel Steering (2W),
and
Four Wheel Steering (4W).
Figure 6-32. Steering Select Switch.
800-497-1704
