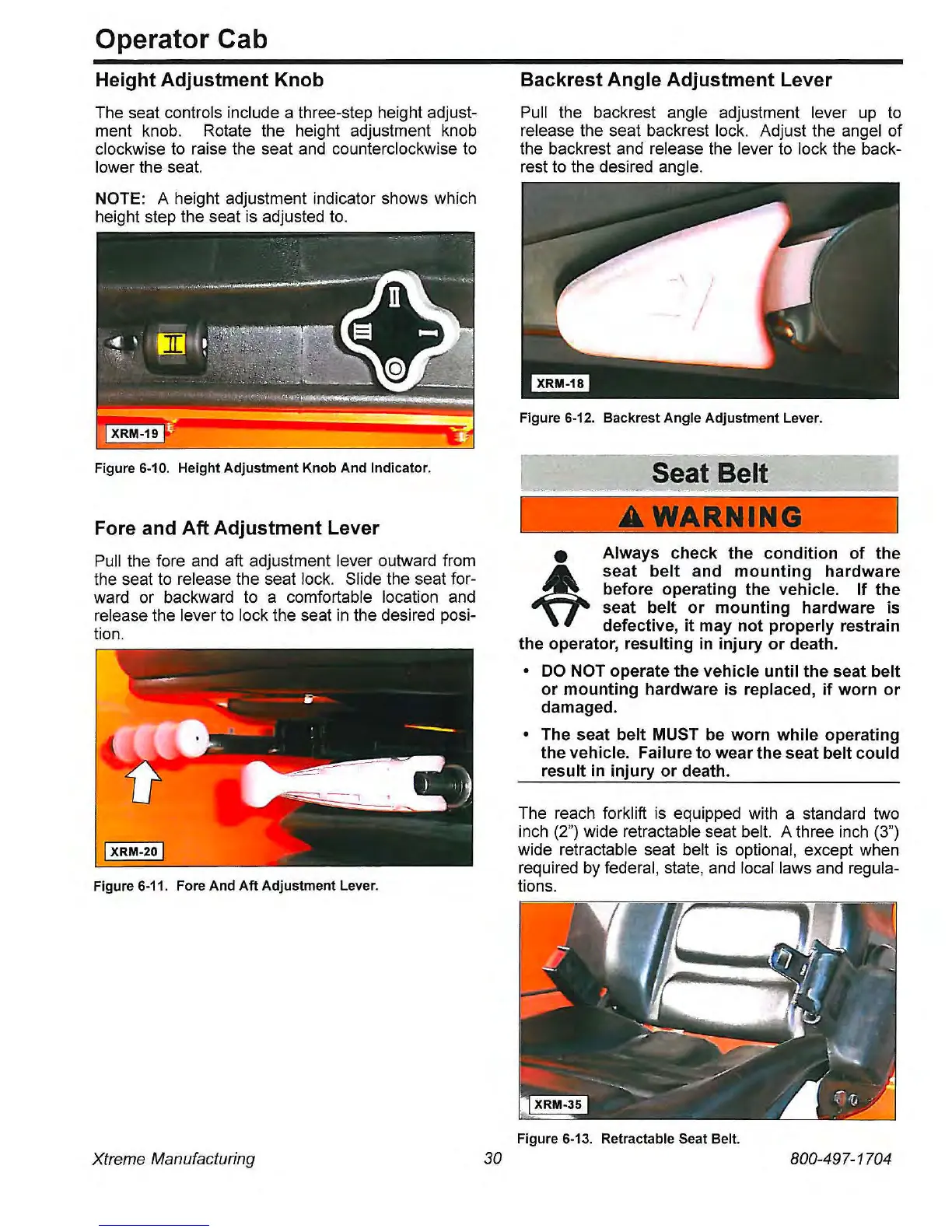

Operator Cab
Height
Adjustment
Knob
The seat controls include a three-step height adjust-
ment
knob.
Rotate the height adjustment
knob
clockwise to raise the seat
and
counterclockwise to
lower the seat.
NOTE: A height adjustment indicator shows which
height step the seat is adjusted
to.
Figure 6-10. Height Adjustment Knob And Indicator.
Fore and
Aft
Adjustment
Lever
Pull
the fore
and
aft adjustment lever outward from
the seat
to
release the seat lock. Slide the seat for-
ward or backward
to
a comfortable location
and
release the lever
to
lock the seat
in
the desired posi-
tion.
IXRM-20 I
Figure 6-11. Fore
And
Aft
Adjustment Lever.
Xtreme Manufacturing
30
Backrest
Angle
Adjustment
Lever
Pull the backrest angle adjustment lever
up
to
release the seat backrest lock. Adjust the angel of
the backrest and release the lever
to
lock the back-
rest to the desired angle.
Figure 6-12. Backrest Angle Adjustment Lever.
Seat Belt
• Always check
the
condition
of
the
~
seat
belt
and
mounting
hardware
before operating the vehicle.
If
the
seat belt
or
mounting
hardware is
defective,
it
may
not
properly restrain
the
operator, resulting in
injury
or
death.
•
DO
NOT operate
the
vehicle until the seat
belt
or
mounting
hardware is replaced,
if
worn
or
damaged.
• The seat belt MUST be worn
while
operating
the vehicle. Failure
to
wear
the
seat belt could
result in injUry
or
death.
The reach forklift
is
equipped with a standard two
inch
(2")
wide retractable seat belt. A three inch (3")
wide retractable seat belt
is
optional, except when
required
by
federal, state,
and
local laws
and
regula-
tions.
(;7
" L
~
. < .
.
}.
,
'!b,'
'-
I"J
. • .
-,
,
'.
'·'1
..
'
~_
J • •
-.J!'i
"
..........-
.~b."
~7'"
/
\~,
.'
.
I .
/~
'--,
-'
- .
lliQP
~
<.~.,
Figure 6-13. Retractable Seat Belt.
800-497-1704
