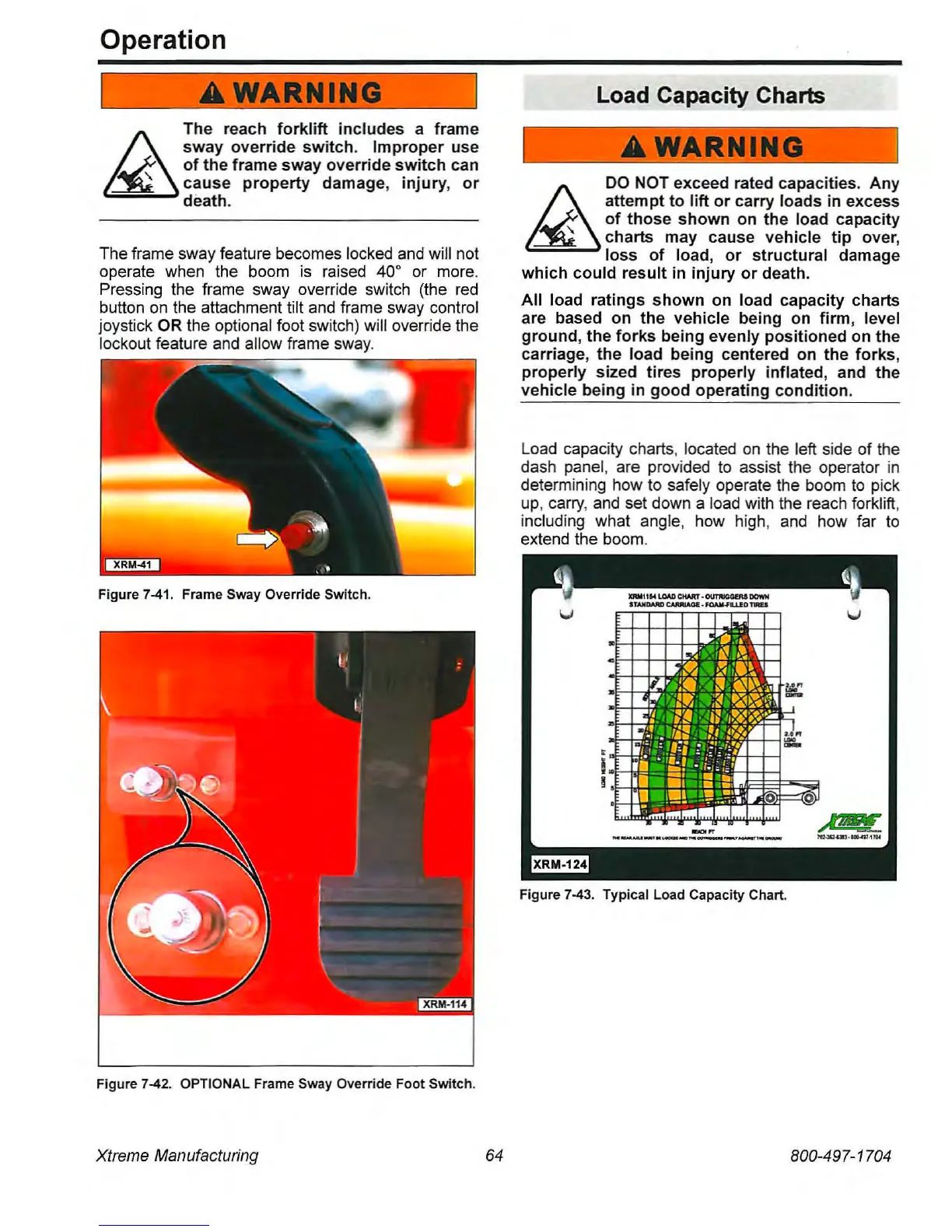

Operation
A
WAR
Load Capacity Charts
The reach
forklift
includes a frame
~
sway
override
switch.
Improper
use
L/
of
the frame sway override
switch
can
~
cause
property
damage, injury,
or
death.
The frame sway feature becomes locked and will not
operate when the boom
is
raised 40° or more.
Pressing the frame sway override switch (the
red
button
on
the attachment tilt and frame sway control
joystick OR the optional foot switch) will override the
lockout feature and allow frame
sway.
Figure 7-41. Frame Sway Override Switch.
Figure 7-42. OPTIONAL Frame Sway Override Foot Switch.
Xtreme Manufacturing 64
~
DO
NOT exceed rated capacities. Any
attempt
to
lift
or
carry loads in excess
L/
of
those
shown
on
the
load capacity
~
charts may cause vehicle
tip
over,
loss
of
load,
or
structural damage
which
could
result in
injury
or
death.
All
load ratings
shown
on load capacity charts
are based on the vehicle being on firm, level
ground, the
forks
being evenly positioned on the
carriage, the load being centered on the forks,
properly sized
tires
properly inflated, and the
vehicle being in
good
operating condition.
Load capacity charts, located
on
the left side of the
dash panel, are provided
to
assist the operator
in
determining how
to
safely operate the boom
to
pick
up,
carry,
and set down a load with the reach forklift,
including what angle, how high, and how far
to
extend the boom.
"H-+f-l-
-H-+-+-:;I7ll
•
•
•
XRM·124
Figure
7-43.
Typical Load Capacity Chart.
800-497-1704
