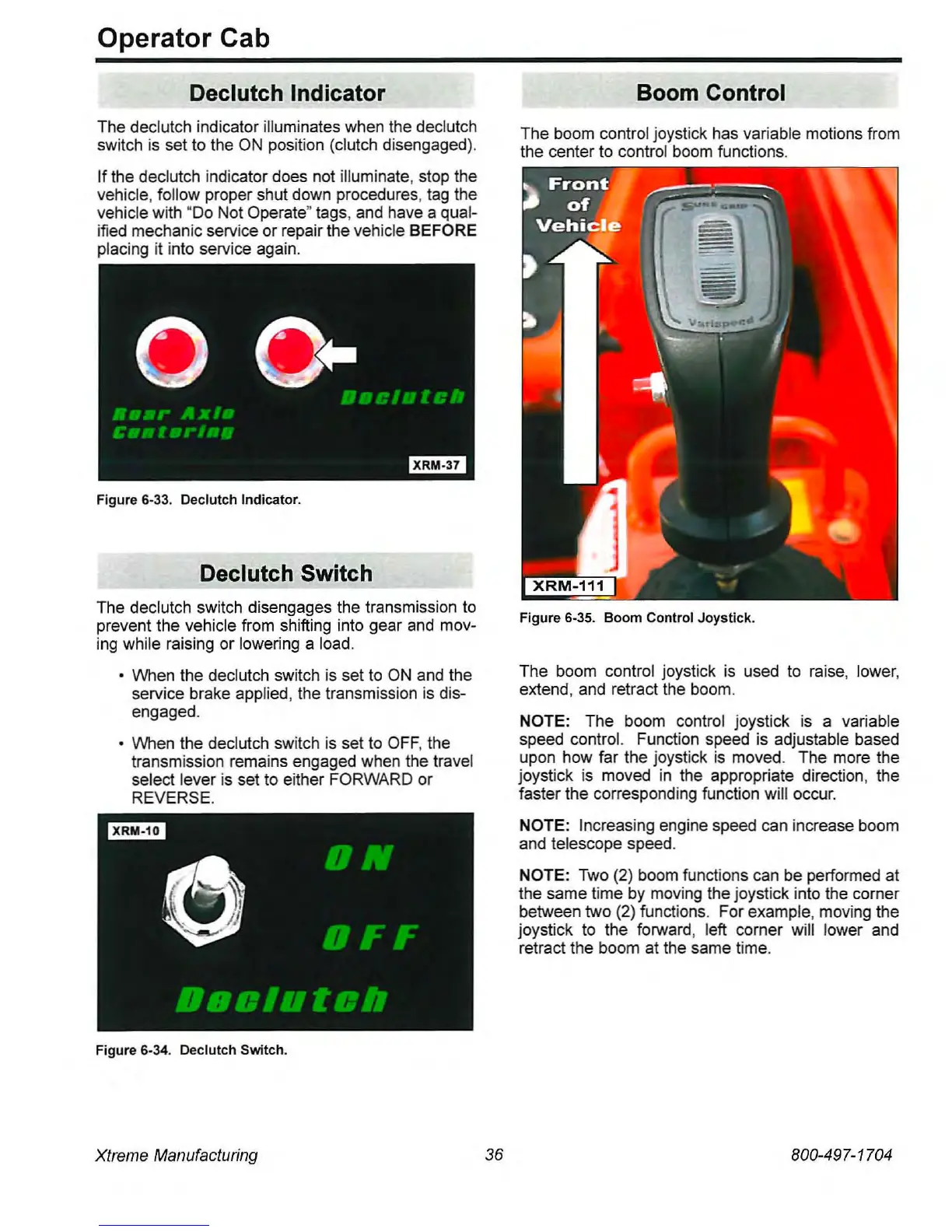

Operator Cab
Declutch Indicator
The declutch indicator illuminates when the declutch
switch is set to the
ON
position (clutch disengaged).
If the declutch indicator does not illuminate, stop the
vehicle, follow proper shut down procedures, tag the
vehicle with "Do Not Operate" tags, and have a qual-
ified mechanic service or repair the vehicle
BEFORE
placing it into service again.
Figure 6-33. Declutch Indicator.
Declutch Switch
The declutch switch disengages the transmission to
prevent the vehicle from shifting into gear
and
mov-
ing
while raising or lowering a load.
• When the declutch switch is set to
ON
and the
service brake applied, the transmission is dis-
engaged.
• When the declutch switch is set to
OFF,
the
transmission remains engaged when the travel
select lever
is
set to either FORWARD or
REVERSE.
Figure 6-34. Declutch Switch.
Xtreme Manufacturing
36
Boom Control
The boom control joystick has variable motions from
the center to control boom functions.
Figure 6-35. Boom Control Joystick.
The boom control joystick is used to raise, iower,
extend, and retract the boom.
NOTE: The boom control joystick is a variable
speed control. Function speed is adjustable based
upon how far the joystick is moved. The more the
joystick is moved
in
the appropriate direction, the
faster the corresponding function will occur.
NOTE: Increasing engine speed can increase boom
and telescope speed.
NOTE: Two (2) boom functions
can
be
performed at
the same time by moving the joystick into the corner
between two
(2)
functions. For example, moving the
joystick to the forward, left corner will lower and
retract the boom at the same time.
800-497-1704
