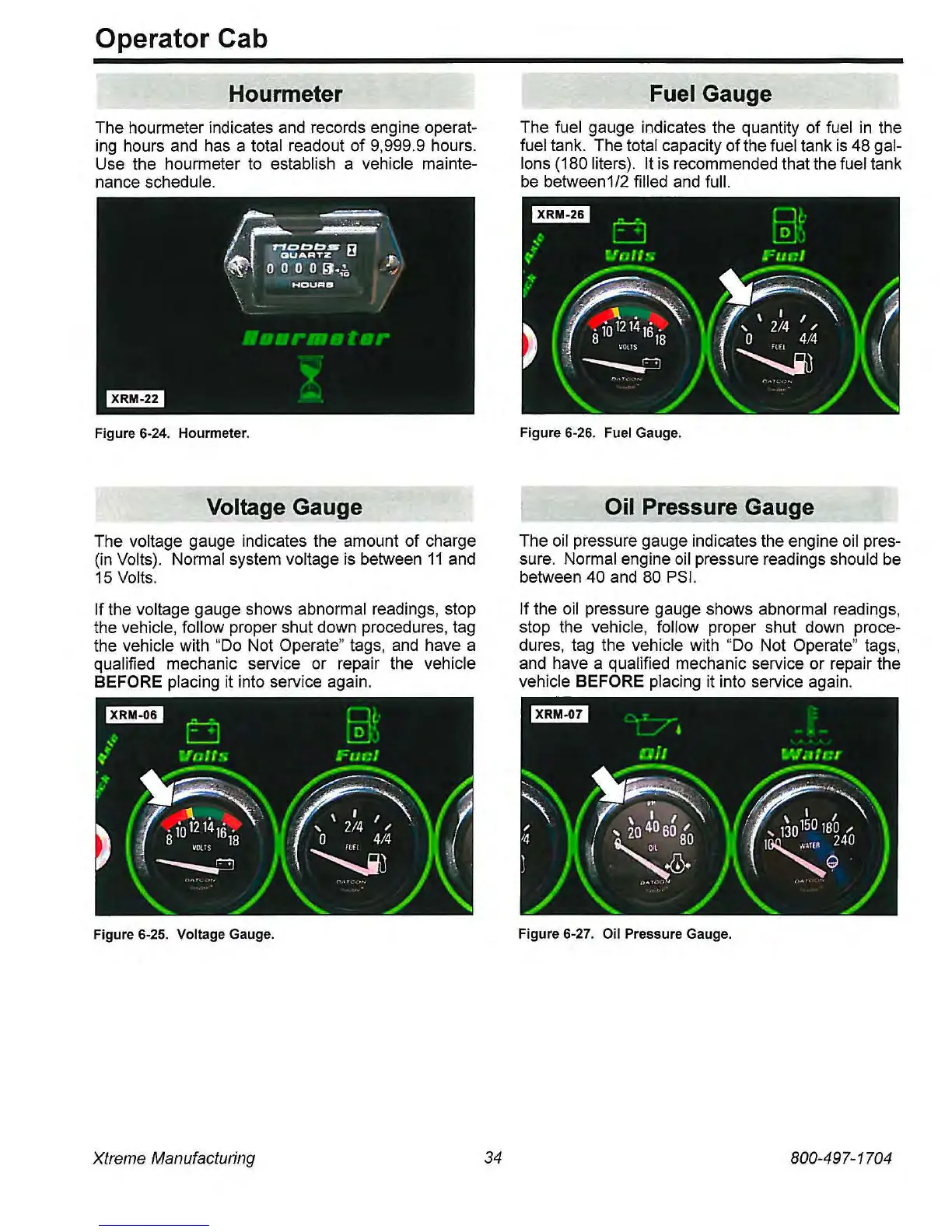

Operator Cab
Hourmeter
The hourmeter indicates and records engine operat-
ing hours and has a total readout
of
9,999.9 hours.
Use the hourmeter to establish a vehicle mainte-
nance schedule.
Figure 6-24. Hourmeter.
Voltage Gauge
The voltage gauge indicates the amount
of
charge
(in
Volts). Normal system voltage is between
11
and
15 Volts.
If the voltage gauge shows abnormal readings, stop
the vehicle, follow proper shut down procedures, tag
the vehicle with "Do Not Operate" tags, and have a
qualified mechanic service or repair the vehicle
BEFORE placing it into service again.
Figure
6-25.
Voltage Gauge.
Xtreme Manufacturing
34
Fuel Gauge
The fuel gauge indicates the quantity
of
fuel in the
fuel tank. The total capacity ofthe fuel tank
is
48 gal-
lons (180 liters). It is recommended that the fuel tank
be between1/2 filled and full.
Figure 6-26. Fuel Gauge.
Oil Pressure Gauge
The oil pressure gauge indicates the engine oil pres-
sure. Normal engine oil pressure readings should be
between 40 and 80 PSI.
If the oil pressure gauge shows abnormal readings,
stop the vehicle, follow proper shut down proce-
dures, tag the vehicle with "Do Not Operate" tags,
and have a qualified mechanic service
or
repair the
vehicle
BEFORE placing it into service again.
'.'
I
~·.,f'-I~·':J
:~
..
--.:'-~;.;:;..-:-:.~-._--
,
~-:---.,
,
......
I/lil
.
--
"'.
I
/~
~'.
",
/
('
~.
I,
'/....
, I ' ,
I,
•
I , \ I I ! \
,
",',"
204060 '
\.
,
130
150
,180
')
'4
: i
"S'
80
.
I,,"""
240
1
I',
.1
1-'
I I G
"
~
II
.
,.
....."
..
, "
..
~
",,,
..
' \ .
/ "
/'
-
'.....
-~~
j
Figure
6-27.
Oil Pressure Gauge.
800-497-1704
