Operator Cab
• is a variable speed rocker switch. Function speed
is adjustable based upon how far the switch
is
pressed. The more the switch is pressed in the
appropriate direction, the faster the corresponding
function will occur.
NOTE: The attachment carriage is self-leveling and
will retain any set angle throughout boom raising,
lowering, retracting, or extending operations.
Optional Controls
and Indicators
a.- ..:...,;...:
Two Wheel Rear (2WR)
Steering Switch (Optional)
CAUTION
DO NOT change steering modes until the vehicle
comes
to a complete stop. Align all four (4) tires
"straight-ahead",
or perpendicular to the axle,
before changing steering mode.
An OPTIONAL two wheel rear (2WR) steering
switch is used
to engage and disengage the rear
wheel steering feature.

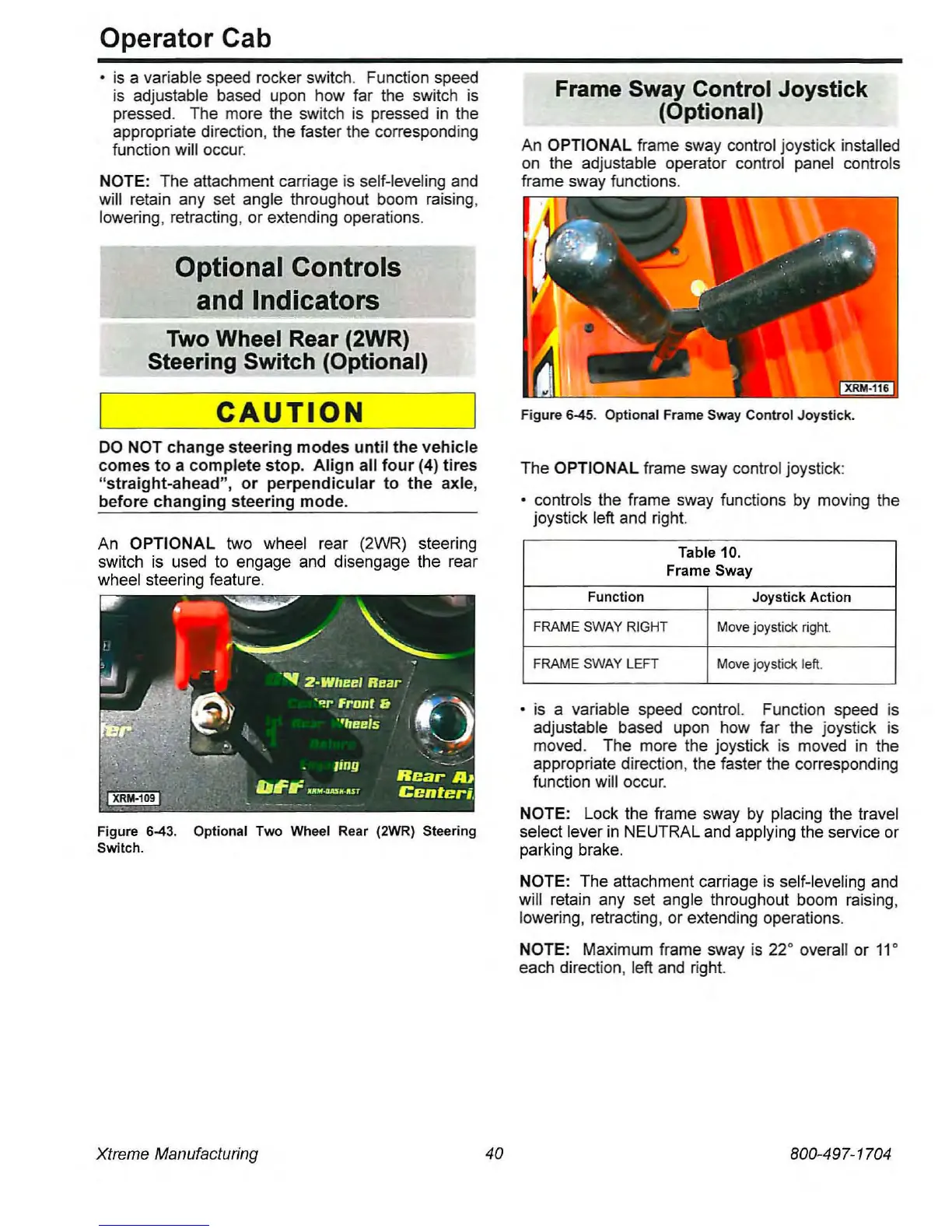

Figure 6-43. Optional Two Wheel Rear (2WR) Steering
Switch.
Xtreme Manufacturing 40
Frame Sway Control Joystick
(Optional)
An OPTIONAL frame sway control joystick installed
on the adjustable operator control panel controls
frame sway functions.
Figure 6-45. Optional Frame Sway Control Joystick.
The OPTIONAL frame sway control joystick:
• controls the frame sway functions
by moving the
joystick left and right.
Table 10.
Frame Sway
Function
Joystick Action
FRAME SWAY RIGHT Move joystick right.
FRAME SWAY LEFT Move joystick left.
• is a variable speed control. Function speed is
adjustable based upon how far the joystick is
moved. The more the joystick is moved
in the
appropriate direction, the faster the corresponding
function will occur.
NOTE: Lock the frame sway
by placing the travel
select lever
in NEUTRAL and applying the service or
parking brake.
NOTE: The attachment carriage is self-leveling and
will retain any set angle throughout boom raising,
lowering, retracting, or extending operations.
NOTE: Maximum frame sway
is 22° overall or 11°
each direction, left and right.
